Want to make sure I get right channel balances

Home Owner from Kennewick, WA

Sep 21, 2023 3:41 am

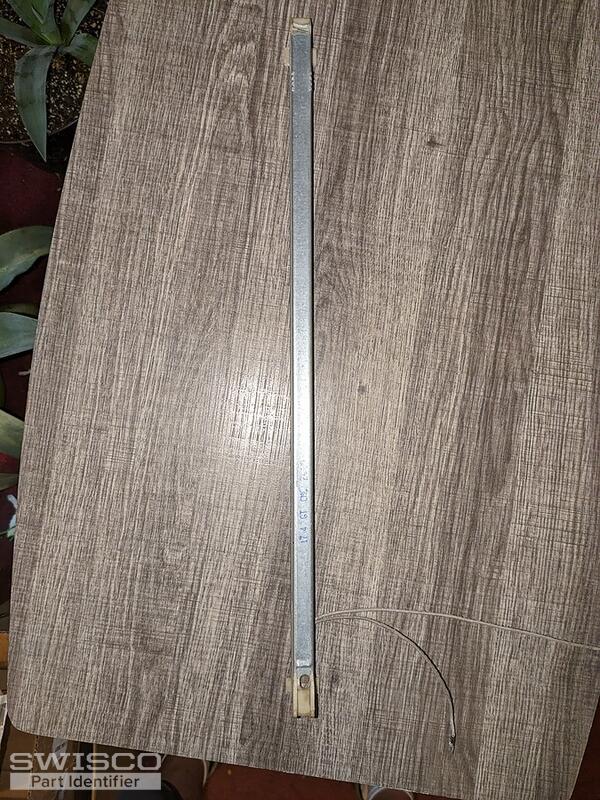

Metal portion is 18", window sash weighs 15 1/2 pounds

Markings on original channel balances are the following 17 4 GT CMC 2

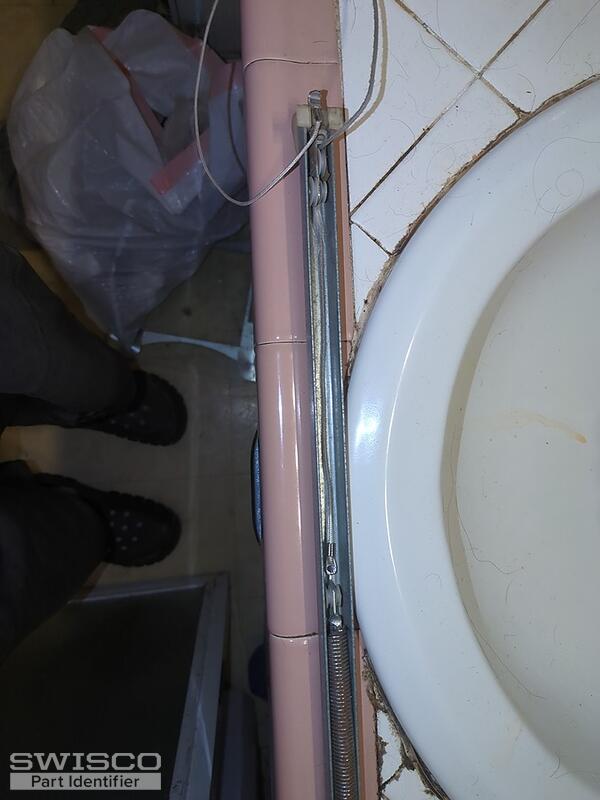

I have included some photos as well.

Thank you for your time,

Jesse

4 user uploaded images

5 Replies

Home Owner from Kennewick, WA

Sep 21, 2023 4:17 am

I'm thinking it might be the 18" series 380 with the 1740 option.

Casey from SWISCO

Sep 25, 2023 10:30 am

Hello,

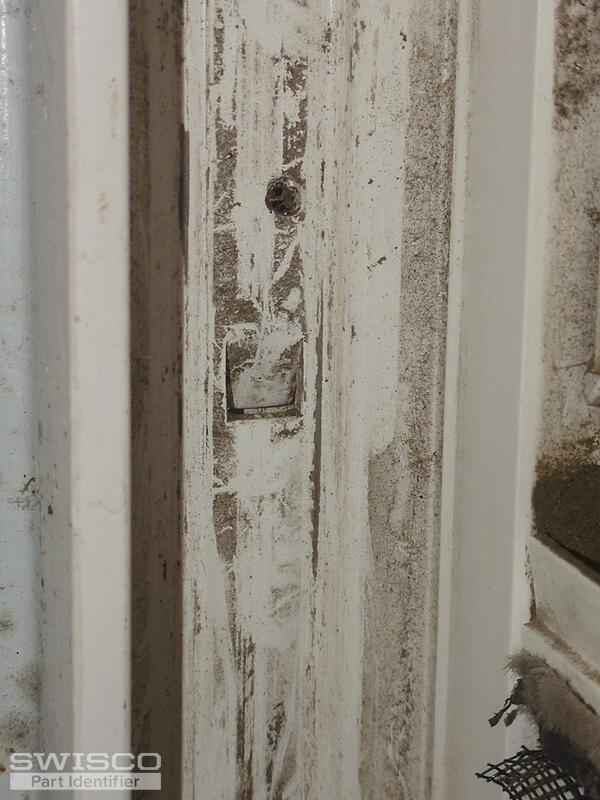

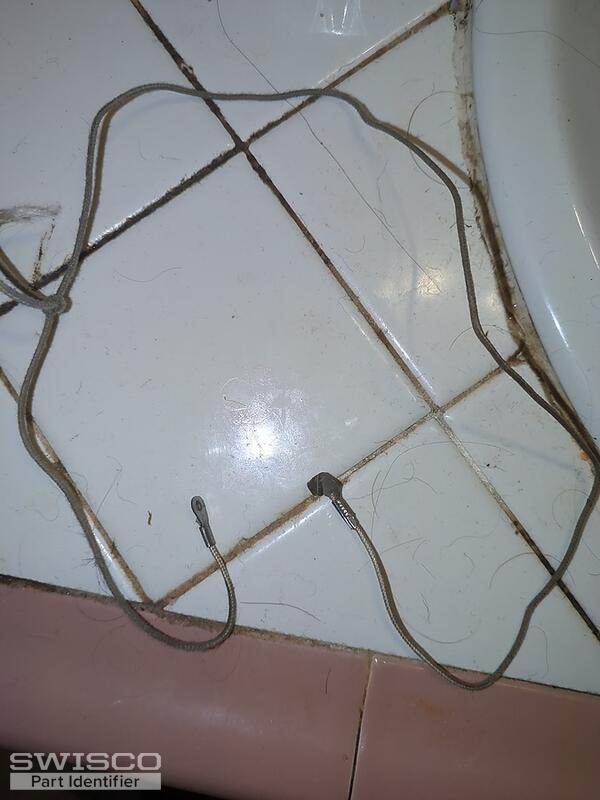

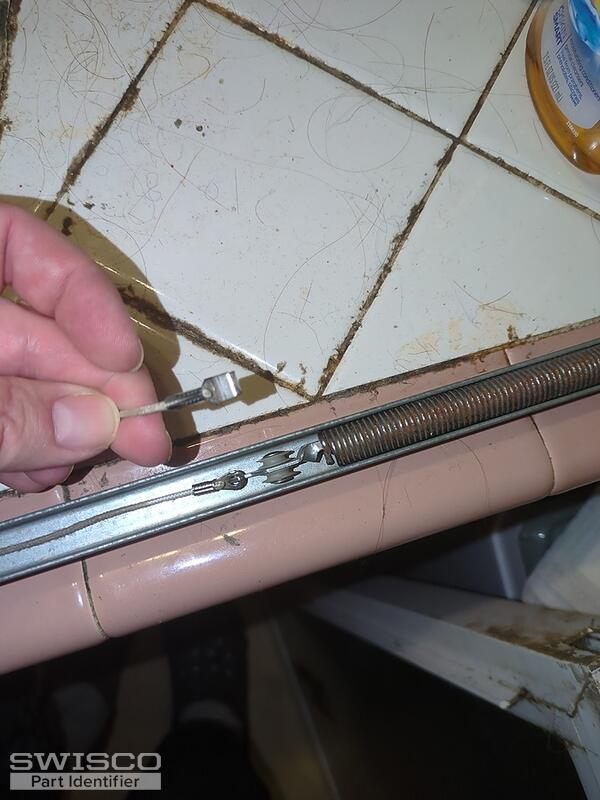

I believe that we can supply the replacement balances that you need but I suspect that the metal piece at the end of the pulley cord attaches to the spring inside the balance channel. We would also like to see the clip at the end of an undamaged balance that connects to the window jamb to install the balance. That will help us confirm that our replacements install the same way. Thank you!

Home Owner from Kennewick, WA

Sep 26, 2023 12:13 am

I hope this helps.

Thanks again for your time

4 user uploaded images

Casey from SWISCO

Sep 26, 2023 8:12 am

Thanks for getting back to us. With this combination of attachments, you could have either the S380-18 or S385-18 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 1740 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
