Weather shield windows from 1979

A home owner from Grand Rapids, MI says:

March 28, 2023

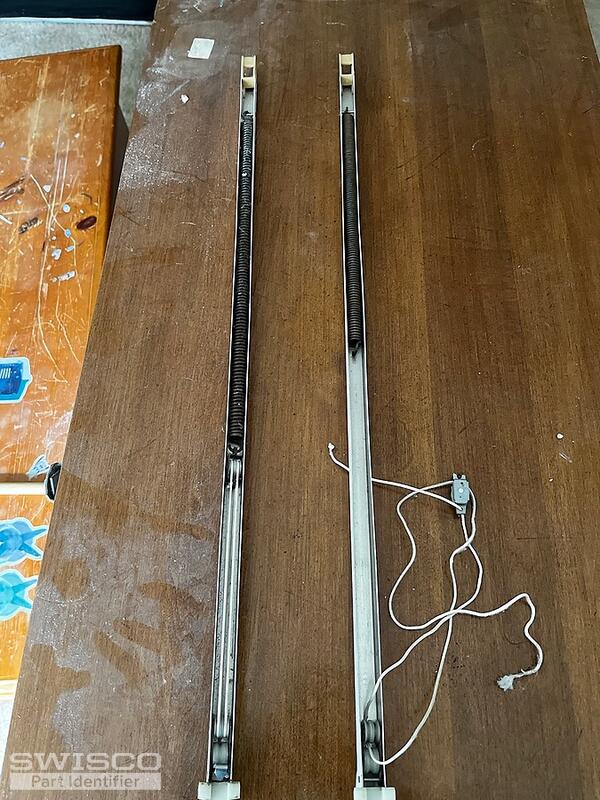

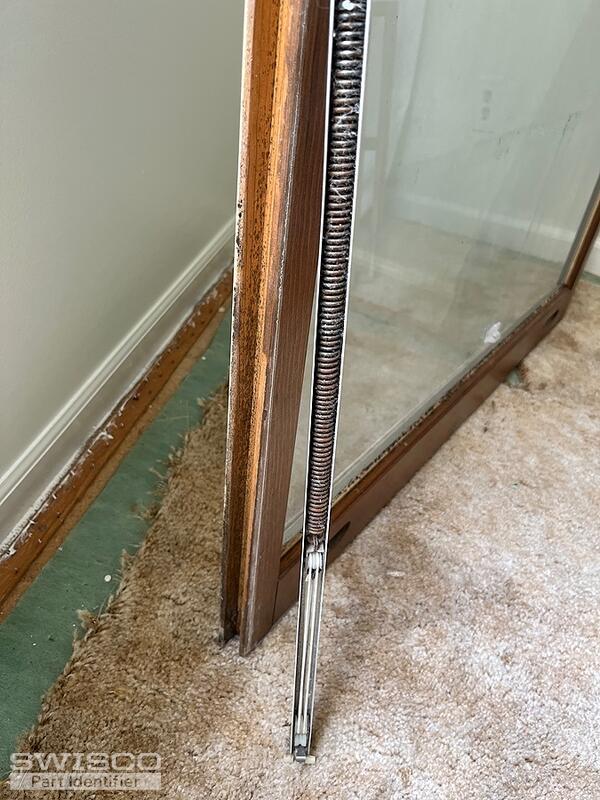

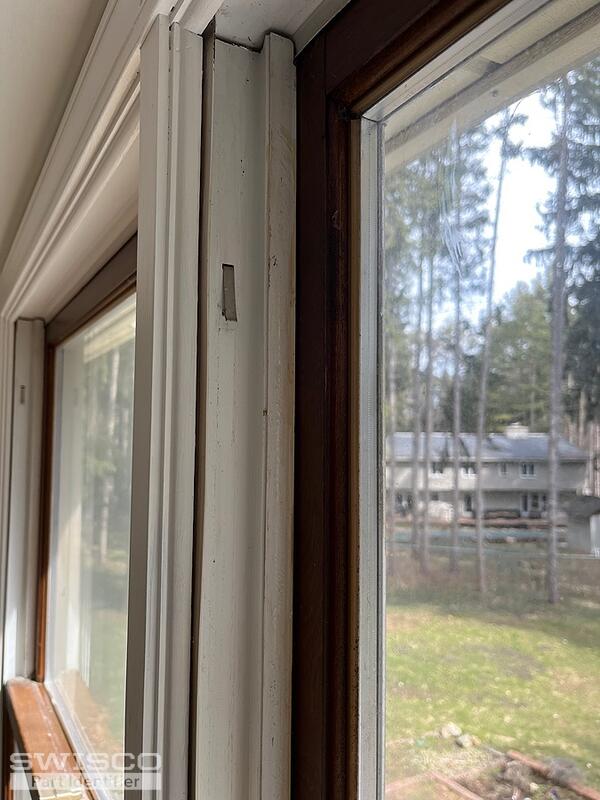

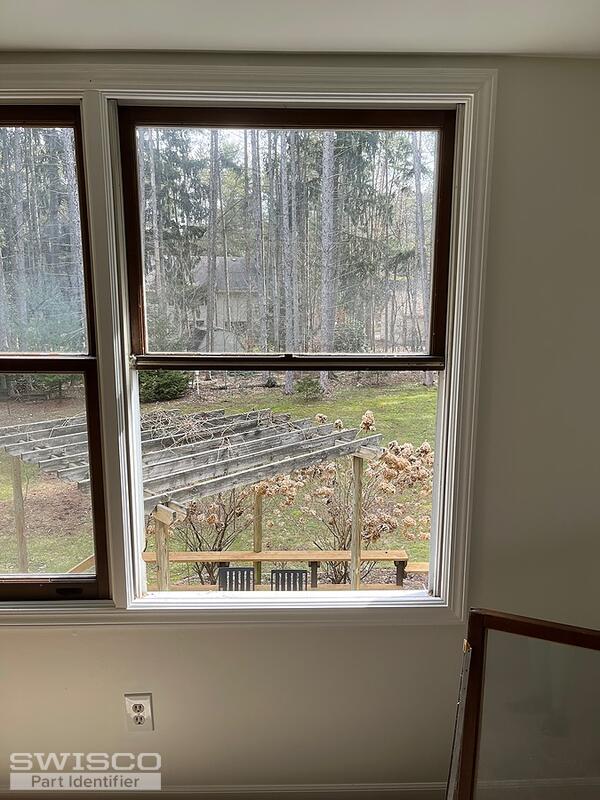

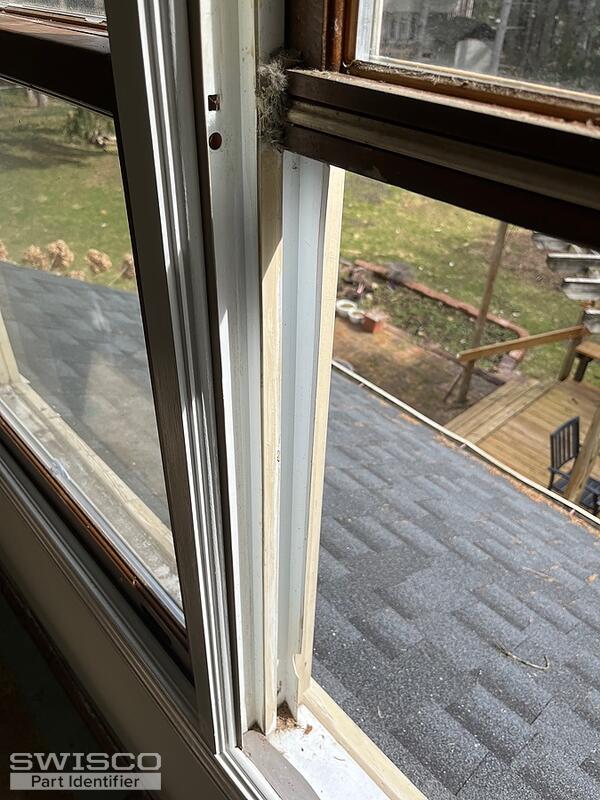

Hi! I have good Weather Shield windows that don't go up and down well anymore. Need help with the spring/string pulley system in the sides of the windows. Some are missing and some are missing a hook of some kind. Struggling to find these parts.

Thanks!

Rebekah

Thumbnail of the uploaded file named 8C32745C-574F-483B-B9E3-8E76F998A28C.jpeg

Thumbnail of the uploaded file named 0B0CC197-F9D2-4BEF-A2CB-2A1B75D33F18.jpeg

Thumbnail of the uploaded file named 3BDF5A0C-C81E-4ADB-8A5E-3E5AD503F2A5.jpeg

Thumbnail of the uploaded file named 5BCF84AD-9196-4364-BE53-01DEE3B001F1.jpeg

Thumbnail of the uploaded file named 5BFB0005-EBD8-4038-B0EF-D2DE0EE7A26F.jpeg

Casey from SWISCO responded:

March 29, 2023

Hello,

I would recommend starting by comparing the S350 channel balance to yours. Please note that this balance uses the 1-3/32" deep 15-004 shown below, which would need to match your shoe measurement.

As for the take out clip shown in your photos, see the 16-002. Thank you!

Alternate view of 15-004

Winged Channel Balance Shoe, 1-3/32" Depth
