What does the 27 14L Stamp on my Balance Mean?

Quick Learner from port charlotte, florida

Mar 22, 2018 4:50 pm

Hello. My channel balance has broken. It has the stamp 27 14L and then in little print 02 asi. It is 28" long. When it was working, it was hard to lift the window. Does the 14L mean 14 lbs? If it was hard to open, should I get a stronger channel balance.

8 Replies

Tom from SWISCO

Mar 26, 2018 3:11 pm

Your stamp is actually kind of peculiar. Typically, the numbers in a stamp are not a direct representation of any physical aspect of the sash weight. Can you tell me the exact weight of your sash?

I also see you were looking at our S385-28. Is this what Series you have? If not, or if you aren't sure, you can show us a photo of the top and bottom ends and the metal clip at the end of the cord and we can confirm. Seeing the stamp may also help at this point.

Quick Learner from port charlotte, florida

Mar 26, 2018 3:34 pm

the sash weighs 43.8 lbs. It has the same clips as S390

(i was unable to send the photos via this thread so I sent them to the email address.) I will try again.

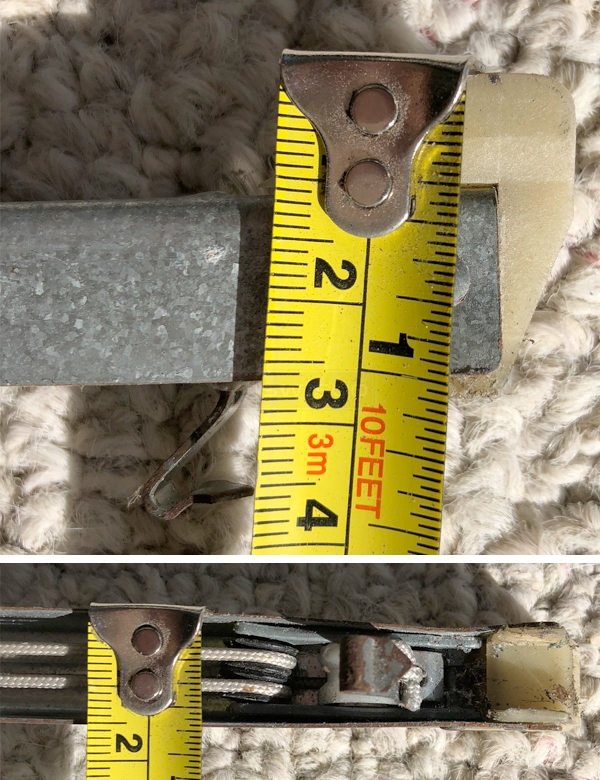

User submitted photos of a window balance.

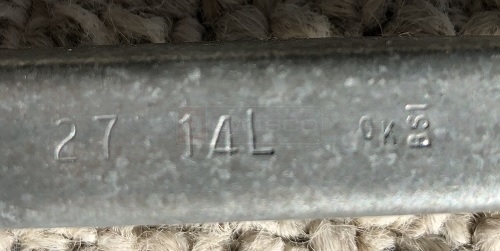

channel balance stamp

Tom from SWISCO

Mar 28, 2018 12:34 pm

Perfect, thank you! This balance will have to be specially made, since that sash is so heavy. I will email you a special order link and price quote for 2 right now, which is our minimum. If you need more, please let me know here and I'll be happy to change it.

Home Owner from Florida

Apr 14, 2018 7:39 pm

I have the same one. Same problem

1 user uploaded image

Tom from SWISCO

Apr 16, 2018 8:51 am

That definitely looks like the same type. Can you just confirm that the nylon ends match our Series 390? Can you also tell me how many you need?

Quick Learner from Babson Park Fl

Mar 24, 2022 9:22 am

I have the same window balance numbers as the picture above 27 14L ok BS1
What is the cost for two of them?.

Tom from SWISCO

Mar 28, 2022 2:08 pm

Hello! I believe you can use the 2780 stamp option to replace your original balance. We just added this to the S390-28 store page for you. Two balances with this stamp are designed to hold 42 through 45 pounds. This should work for you but you may want to weigh your sash just to confirm.
