What part do I need?

Home Owner from 94546

May 24, 2024 6:01 pm

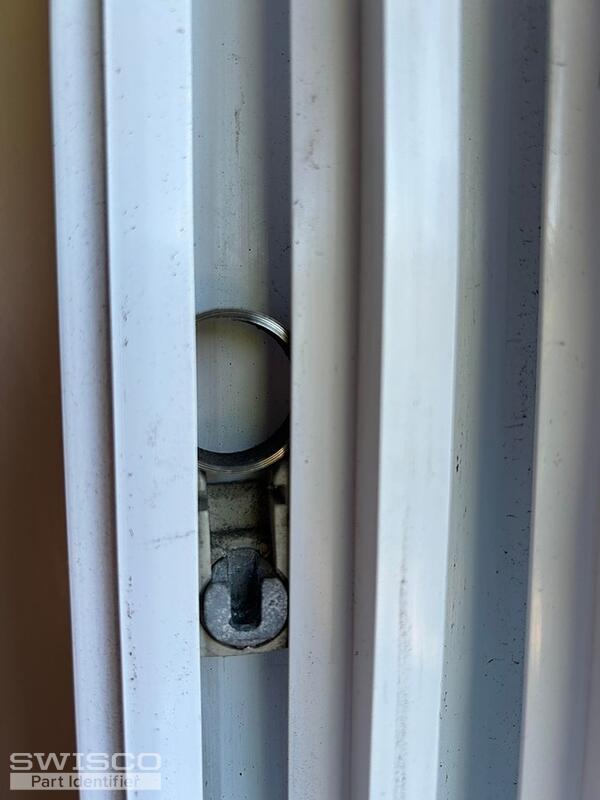

Hello. I have a double hung vinyl window manufactured by Amerimax Windows. The window has two broken coil balances. I was able to remove my coil balance by using your "cut out method" shown in the video on your web site. I believe the replacement part I will need is a 15-177 and a Series 152 coil balance. My coil has a D stamped on it (see attached photo). Does that indicate what lb series coil balance I will need to order for my window?

Thank you,

Jim

441877888_3015798665228514_3409143375073826276_n

436636068_798457735579722_1941056997653955763_n

436621771_1155513948812275_6346056695366750435_n

438159071_425015107121173_5467290105746502867_n

4 user uploaded images

3 Replies

+ Add a Comment

Bob from SWISCO

May 24, 2024 8:49 pm

EXPERT

Hey Jim. Good work, you're absolutely correct. This should be a 15-177 and Series 152 Coil Balance. For a spring stamped 'D', you can use an S152-4 4 pound spring. Let me know if you have further questions.
