Which is the Right Channel Balance

A home owner from PA says:
I don't know which one to put for my window
Thumbnail of the uploaded file named 16011738931217816161892099591121.jpg
Thumbnail of the uploaded file named 16011739239753602540037381839220.jpg
Thumbnail of the uploaded file named 1601174124093714463414236159696.jpg

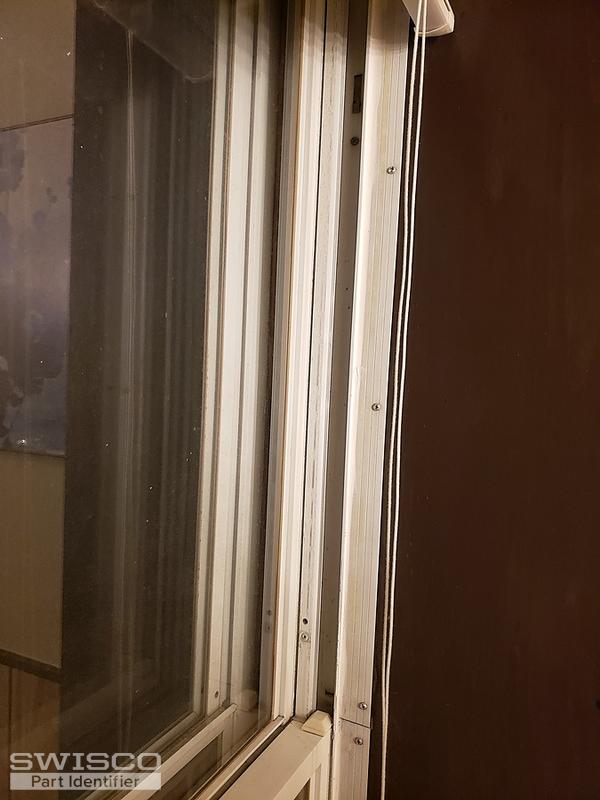

Thumbnail of the uploaded file named 16011741512826849328015447620695.jpg
Profile picture of Bob
Bob from SWISCO responded:

Can you give me clearer photos of the nylon fittings at both ends? Can you also confirm the exact metal channel length? Finally, is there any stamp code on the metal channel? We'll do our best to narrow this down from there. Thanks.

A home owner from PA says:
This is what you need

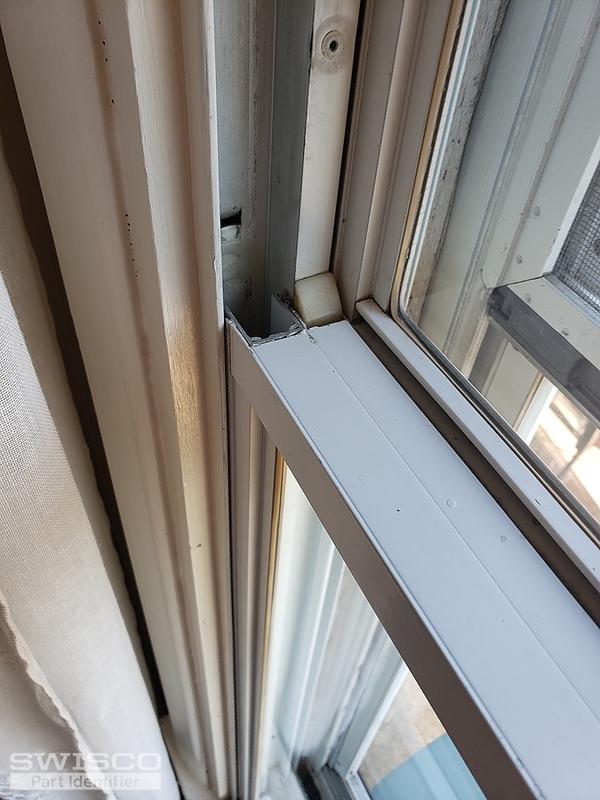

Thumbnail of the uploaded file named 16014970539618244578747644504122.jpg

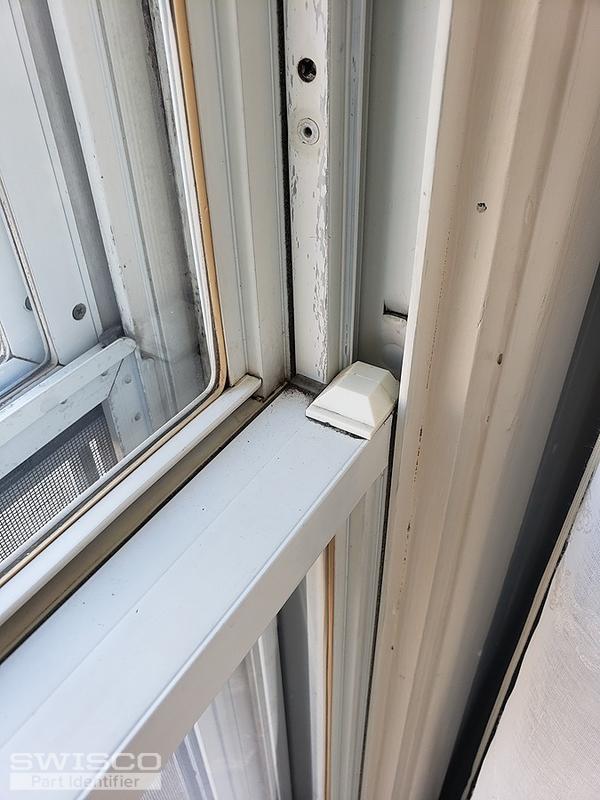

Thumbnail of the uploaded file named 1601497071739796085555689583513.jpg

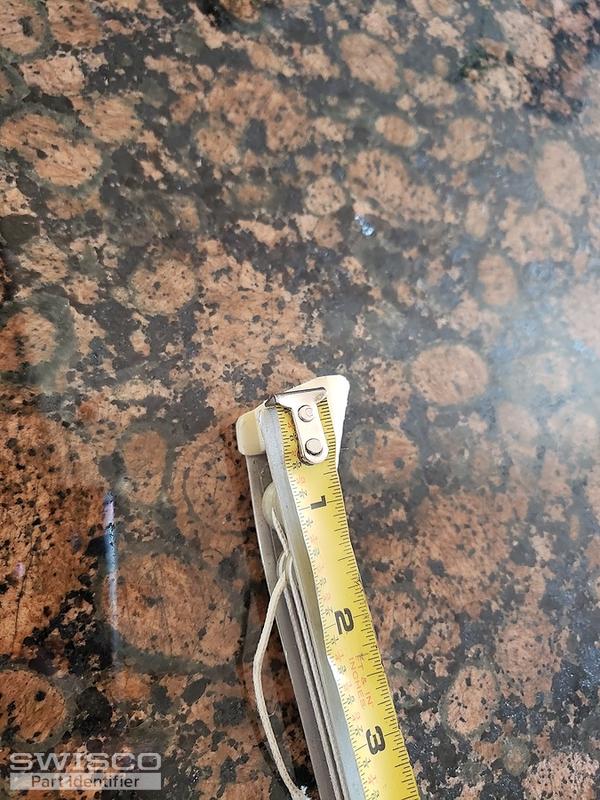

Thumbnail of the uploaded file named 16014971378736350388053011871216.jpg

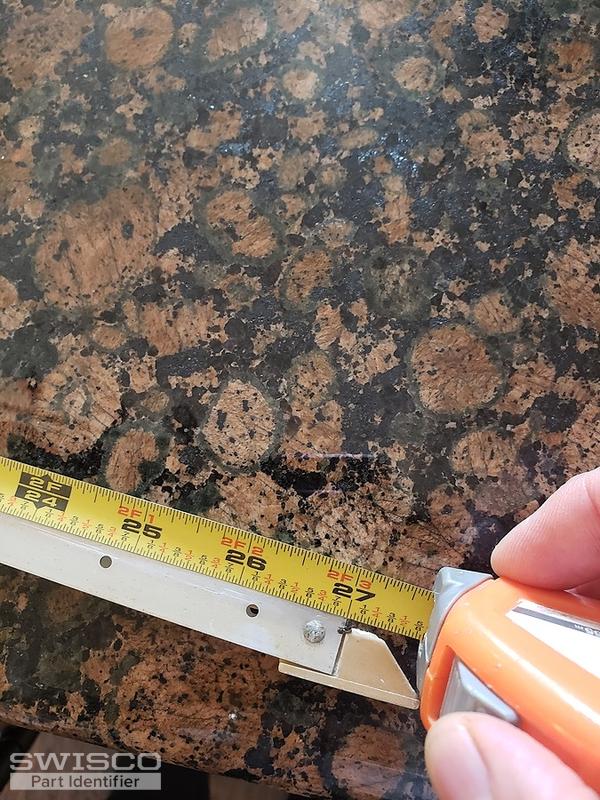

Thumbnail of the uploaded file named 16014971743186053130382124367198.jpg

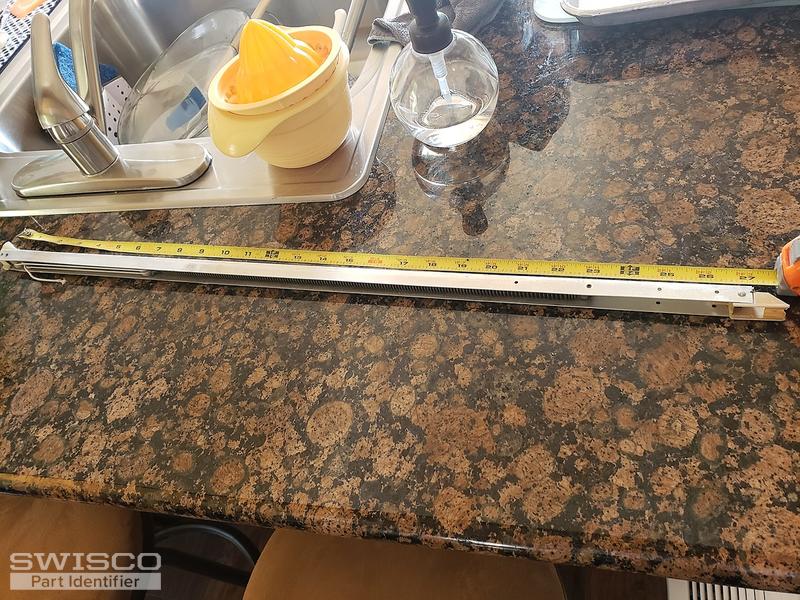

Thumbnail of the uploaded file named 16014972026822138986784227982115.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for this. If the metal channel, not including the fittings, is 27" long, then you need either an S351-27 or S390-27. The only difference between these two balances is the bottom nylon shoe depth, so compare both with your old hardware to see what matches best. You'll then need to choose a stamp option. Look for a stamp code on the metal channel. If there is none or you are uncertain, obtain the exact weight of your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on every balance's shop page.
