Which model to order?

A contractor from Sarasota, FL says:

Good day. I am not sure which series to select to replace balancers on 10 windows. The only mark on existing balancers is 22E. Can you please help. Thank you.

Ivan

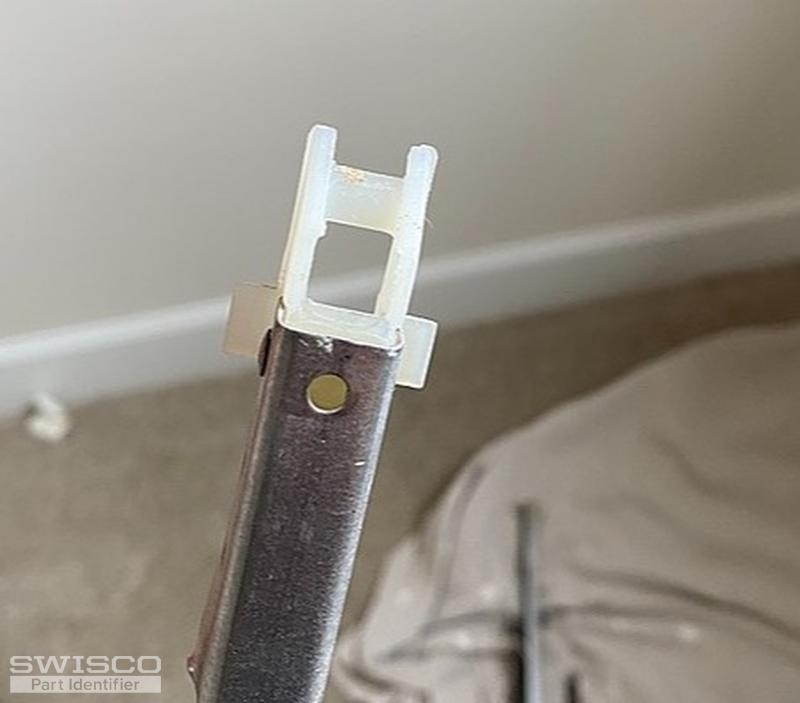

Thumbnail of the uploaded file named IMG_8103.jpg
Thumbnail of the uploaded file named IMG_8102.jpg
Thumbnail of the uploaded file named IMG_8101.jpg
Thumbnail of the uploaded file named IMG_8100.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hi Ivan. Take a look at our S380-23. This channel balance has a bottom nylon shoe with a depth (or the distance between the heel and toe of the bottom nylon shoe) of 1". See if this matches what you need. Based on your stamp option of 22E, you will need a stamp option of 2250, which is for a window sash in the weight range of 23 through 27 lbs. Let me know if you have any other questions.

A contractor from Sarasota, FL says:
Hello Bob,

thank you for your reply. It looks good to me but then I am unsure about the rest of the windows. Can you please take a look at the sizes we got from all windows and make recommendation about which parts do I need. I am ready to order but I am not sure what size balancers based upon size of windows and I would like to avoid removal of balancers until I have replacement parts, if possible. Once again thank you very much and if you have any question feel free to call me at 941-275-8056 or to email me.

Upstairs master bedroom. This one has a mark 22E
(3) 51 3/4 by 48 3/4
Sash 51 X 25 1/2

Upstairs bathroom
(1) 35 3/4 X 36 3/4
Sash 35 X 19 3/4

Downstairs bedroom to the right
51 3/4 X 71 3/4
Sash 51 X 31 1/2

Downstairs bedroom to the left
(1) 51 3/4 X 71 3/4
Sash 51 X 31 1/2

Downstairs master bath
51 3/4 X 71 3/4
Sash 51 X 31 1/2

Downstairs Master bedroom
(1) 36 3/4 X 71 3/4
Sash 35 X 31 1/2

Front Room Window
(1) 36 3/4 X 82 3/4
Sash 35 X 31 1/2
Profile picture of Paul
Paul from SWISCO responded:

Thanks for getting back to us. We can guide you on what channel balances you might need, but you should definitely double check the information we have on each product's site before ordering just to be 100% sure. I'll go through them one at a time.

  • Upstairs master bedroom: S380-23 with a 2250 stamp (for a sash weight of 23-27 lbs.)
  • Upstairs bathroom: S380-17  with a 1630 stamp (for a sash weight of 12-14 lbs.)
  • Downstairs bedroom right: S380-29 with 2860 (32-35 lbs.)
  • Downstairs bedroom left: S380-29 with 2860 (32-35 lbs.)
  • Downstairs master bath: S380-29 with 2860 (32-35 lbs.)
  • Downstairs master bedroom:
  • Front room: S380-29 with 2830 (16-23 lbs.)

Please let me know if you have any questions.

A contractor from Sarasota, FL says:

Thank you very much Paul. I wish I though of this earlier. You were really helpful and I just placed an order.

Best Regards

Ivan

Profile picture of Paul
Paul from SWISCO responded:

That's great news. We are happy to hear that everything is working out for you. Be sure to get back to us and let us know how everything worked out for you.
