Widow tilts plus

A handy person from Ventnor nj says:

All are 27".

Is there a difference between the blue and red tip ?

Also need some window channel locks. Photo to come.

Thumbnail of the uploaded file named B18C28C3-E3C7-41B0-A97A-DDFB4DF15580.jpeg
Thumbnail of the uploaded file named 6B724336-A4B4-4736-9B0F-4D3A969A748A.jpeg
Thumbnail of the uploaded file named FF0A4E83-E510-4452-A31A-E82712F9D7DE.jpeg
Profile picture of Manuela
Manuela from SWISCO responded:

Thanks for reaching out to SWISCO for your hardware needs. Because all of your hardware is still installed, we are unable to provide any accurate recommendations. We'd still like to help. You will need to remove all hardware from the windows and upload detailed photos of each piece. You will also need to include some detailed information so that we can help narrow down what alternative parts could work for you.

A handy person from Ventnor nj says:
Here are the photos. They include the twist balance, top sash channel locks, pivot shoe and holder. I need multiples of each so if you id them for me I will place the order. Also need the tensioning tool. I assume it?s on your site but I didn?t see it

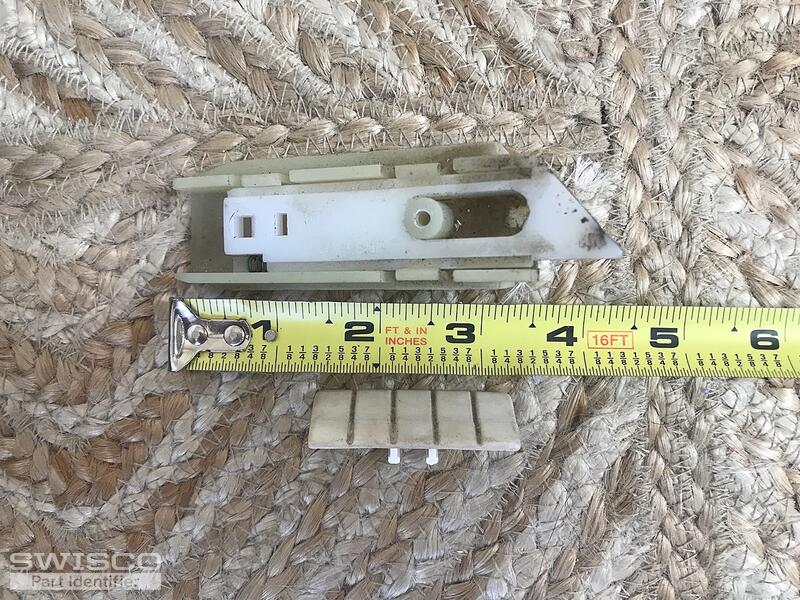

Thumbnail of the uploaded file named 3181AC0C-BBCF-433E-B65B-D92BF8B7FF68.jpeg

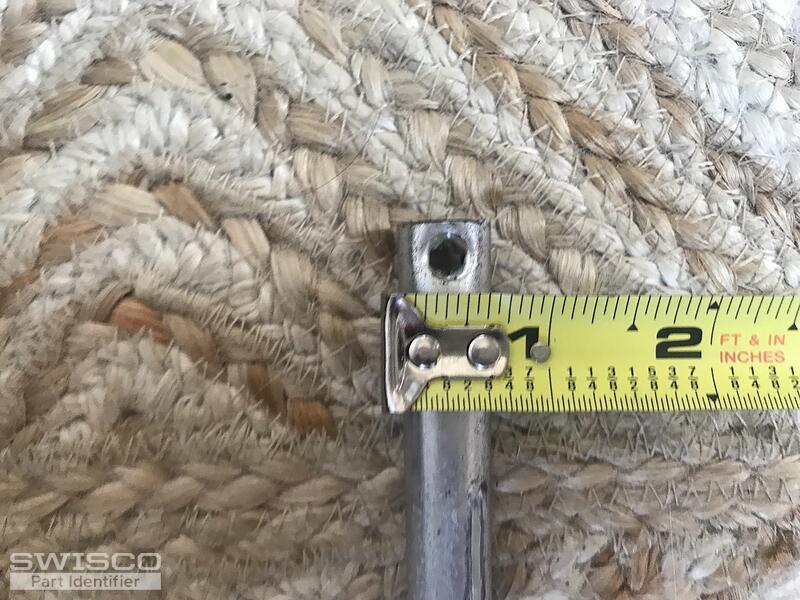

Thumbnail of the uploaded file named D2A69549-C9CD-4EEE-AE3B-70C668E26A72.jpeg

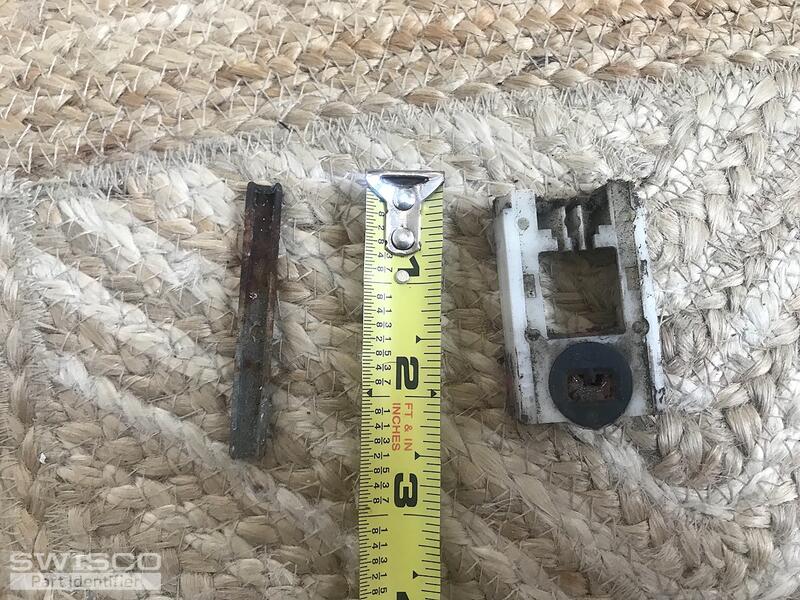

Thumbnail of the uploaded file named A4974F6F-7B76-4452-AFD5-25C71FBB5747.jpeg

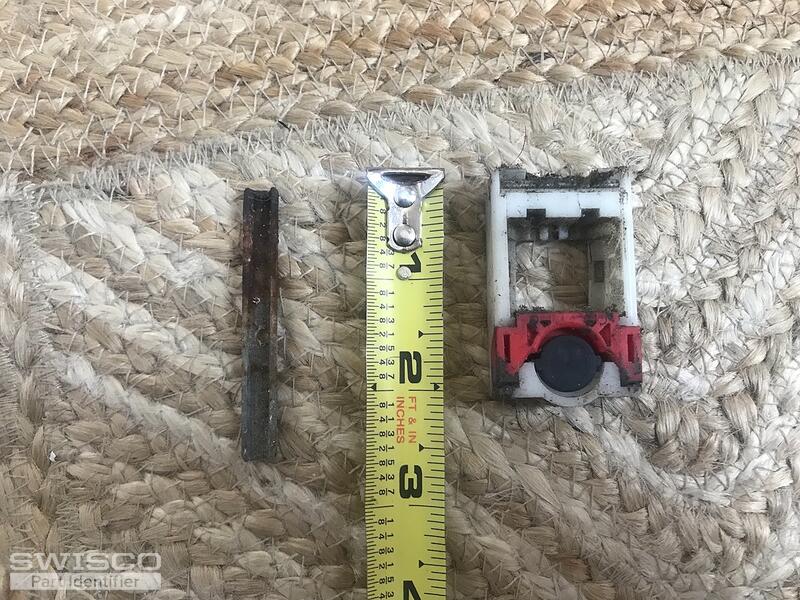

Thumbnail of the uploaded file named 72896555-2B83-4032-B8B2-5BE2F8E38B52.jpeg

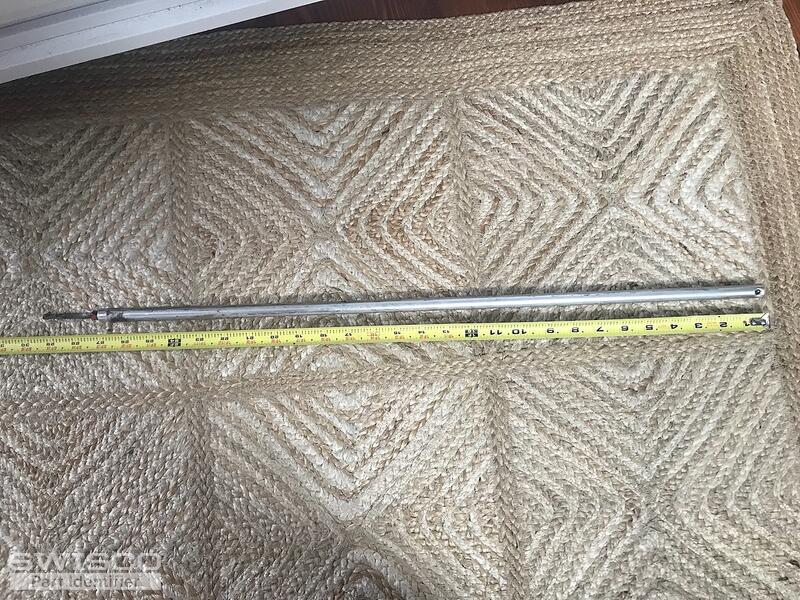

Thumbnail of the uploaded file named AB33A5F3-B6FA-4399-8E3C-9AA3624D0D60.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for getting back to us. We believe we have identified most of your window parts. Start with our S600-27 spiral with a blue tip. Going with a blue tip option across the board won't affect the performance of a window that originally had red tips, at least not in your case. I'd also go with a 15-121 pivot shoe.

We couldn't find your exact pivot bar, but your sash has room for a longer pin. See our 26-089, I think this can work. Just see if the screw holes match.

The 75-006 charging tool will be a great tool to help attach the balance spiral to the pivot shoe.

Finally, for the tilt latches, see our 26-239 and 26-240, along with our 26-343 thumb button. I would definitely compare your dimensions to ours to be sure they match up.
