Will not crank shut.

Quick Learner from Peoria Illinois

May 13, 2024 3:21 pm

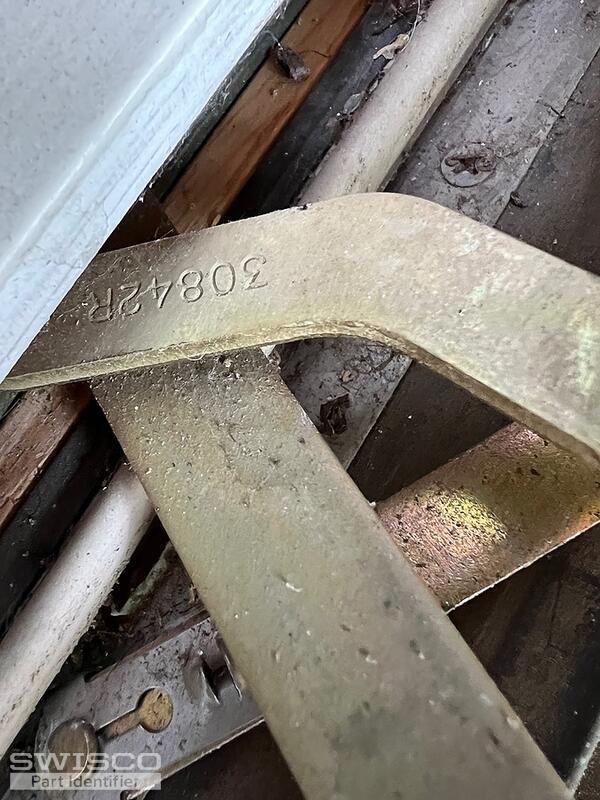

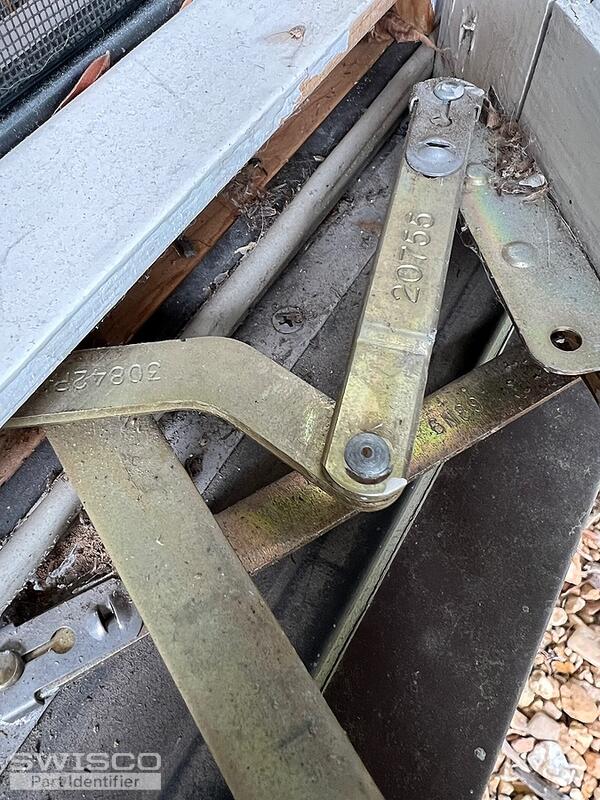

Not sure if this is a handle replacement or the whole deal.
I believe the longer arm is 8" and the other is 4".

5 user uploaded images

1 Replies

+ Add a Comment

Lauren

Lauren from SWISCO

May 14, 2024 12:36 pm

SWISCO

EXPERT

Hello, thank you for posting,

It appears the spline that the handle fits onto has been stripped which will require a full new operator. Your operator resembles the 39-155 and 39-156 style. Please review the dimensions and orientation of the operator to confirm a good fit! For a new cover and handle, see the 39-107 and 39-114L.

Let us know if you have any additional questions!

Dimensions for 39-155

Dimensions for 39-155

Dimensions for 39-156

Dimensions for 39-156
