Part that Lets Window Roll Up and Down

Quick Learner from Ohio

Oct 21, 2021 1:21 pm

I have a part that fits into the frame of the window and let's the window roll up and down. The piece that connects the part to the window is broke on one side. On the other side it's a metal piece that slides into the bottom or a double hung window.

4 Replies

Bob from SWISCO

Oct 26, 2021 3:38 pm

I am afraid I'm having some trouble visualizing what you're looking for. Can you send pictures of the hardware in question? I'll do my best to help from there.

Quick Learner from Ohio

Nov 20, 2021 3:01 pm

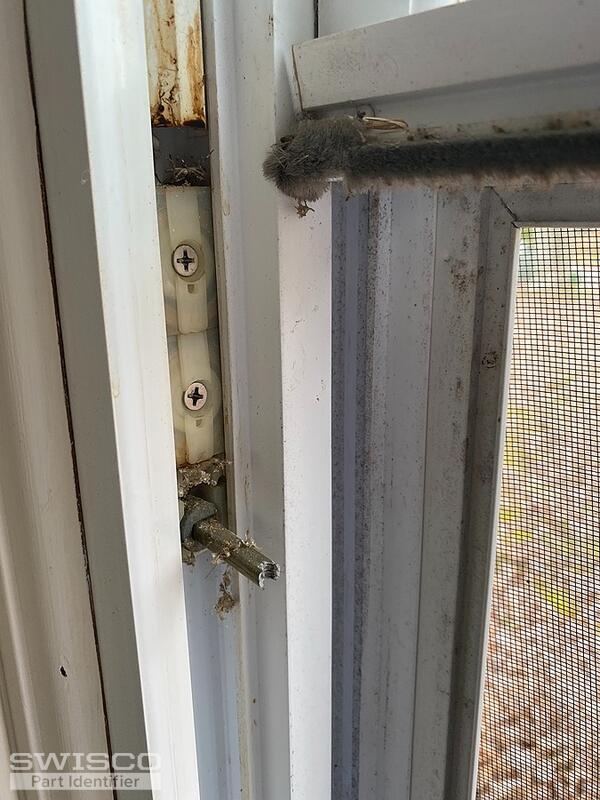

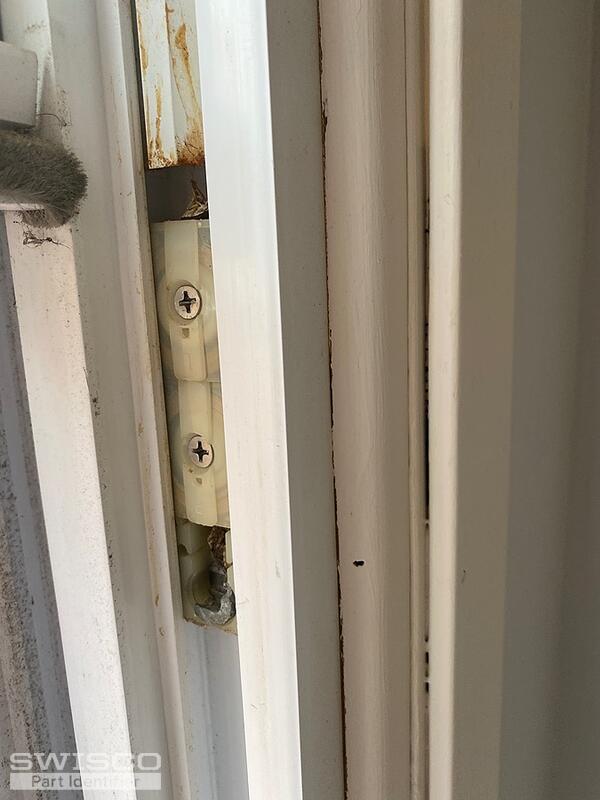

Yes! I will post photos below. One side is missing the metal piece that holds the window in

2 user uploaded images

Tom from SWISCO

Nov 22, 2021 9:21 am

Thank you! This is a huge help. The part in question here is called the pivot bar; this screws to the bottom of the sash and inserts into the pivot shoe. Your pivot bar in particular resembles our 26-040 very strongly, though I recommend reviewing our dimensions closely just to confirm since there are a few different styles that are close to this.

The most important dimensions to note are the hole placement and the width/thickness of the bar itself. As long as those line up then you should be good to go!
