Window Balance

A home owner from Fullerton says:

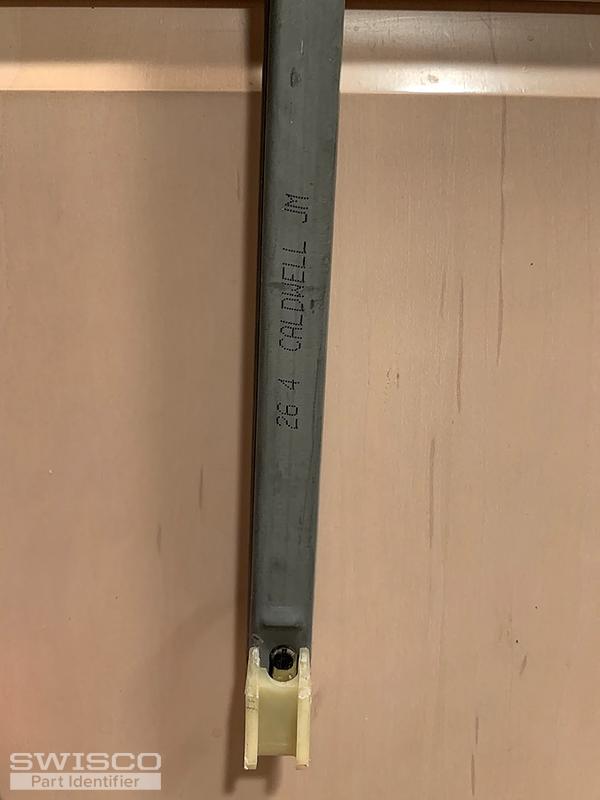

26 4 Caldwell JM
27 inch

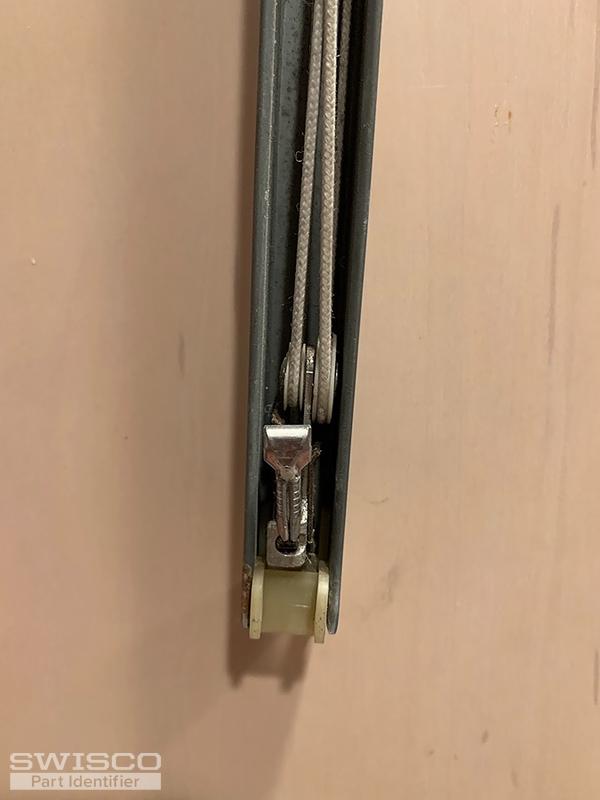

Thumbnail of the uploaded file named 8C69E7E3-A81C-4B13-B7DD-3ED2B58EFA2B.jpeg
Thumbnail of the uploaded file named D0759E57-5AB3-42FC-AADA-46D8483E38BF.jpeg
Thumbnail of the uploaded file named 737212A6-C315-44AC-A6C9-A87E073D56B9.jpeg
Thumbnail of the uploaded file named 7480652D-6171-4C36-A855-89D37049B37B.jpeg
Thumbnail of the uploaded file named E5ADE706-D5E6-46B3-8CA2-3E6F4ED5533C.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-27, with a 15-002 bottom attachment, or S390-27, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2640 spring strength option for your replacement balances. Thank you!



Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A home owner from Fullerton says:
Hello,
I have another question, which sash guide would best fit my window?
Profile picture of Tom
Tom from SWISCO responded:

Sure thing! Based on your old stamp of 26-4, you want a 2640 stamp option.
