Window Balance 17527 Long Ridge

Start a new Discussion

Quick Learner from Montverde, Florida

Apr 3, 2021 4:12 pm

28B USB

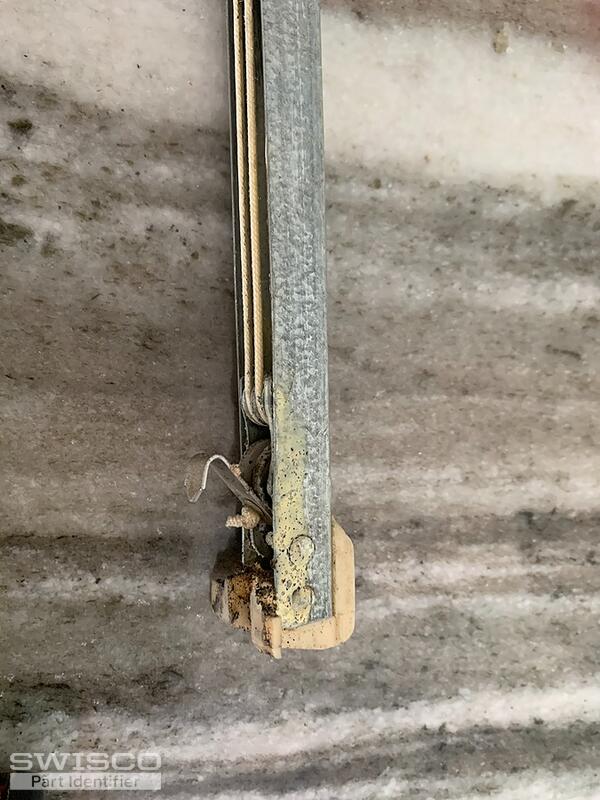

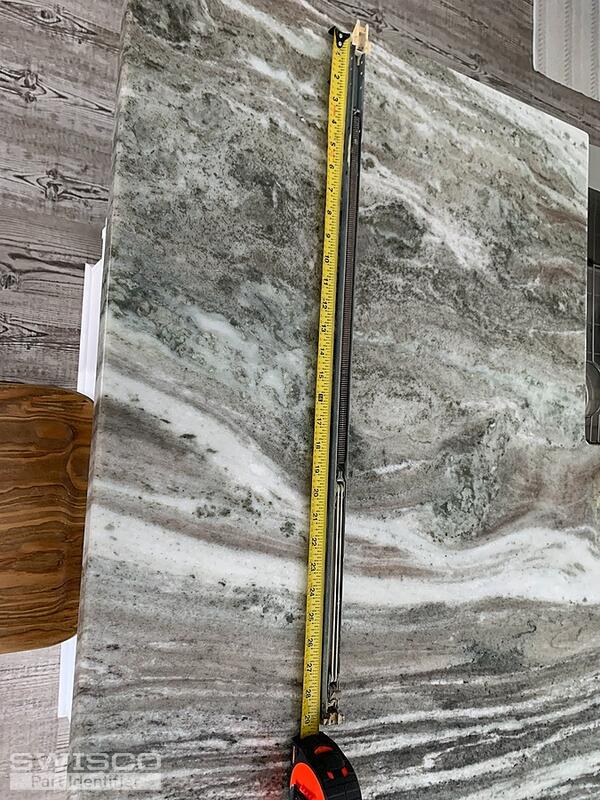

5 user uploaded images

7 Replies

Emily from SWISCO

Apr 7, 2021 9:05 am

You could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a stamp option of 2820. If you have any further questions please let us know!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Montverde, Florida

Apr 7, 2021 1:09 pm

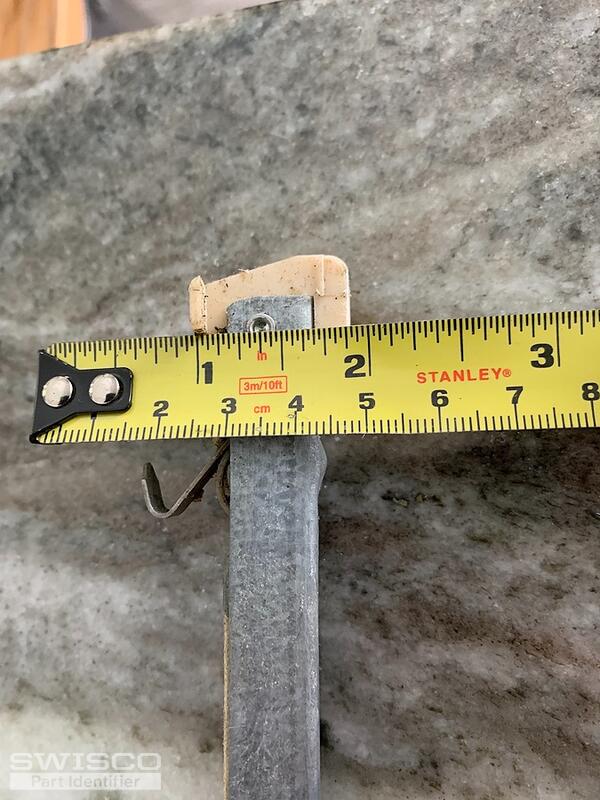

It actually looks like 15/16 inches

1 user uploaded image

Emily from SWISCO

Apr 7, 2021 3:14 pm

You could have the 15-005 shoe which comes attached to our Series 380, or the smaller shoe with a depth of 7/8", which would be our 15-029. Let us know what you think.

Quick Learner from Montverde, Florida

Apr 8, 2021 1:18 pm

So, starting out with enough for one window, what is price and delivery for two series 380 balance springs (with the 15-005 attached) and two additional 15-029 shoes?

I have multiple windows that likely will need to be updated.

Quick Learner from Montverde, Florida

Apr 8, 2021 1:21 pm

Just watched the video, likely going to need the rivet installation tool as well.

Emily from SWISCO

Apr 9, 2021 8:07 am

You'll be able to see the pricing for the Series 380 and 15-029 on each of their product pages. If you prefer to swap out the shoes yourself, check out the 62-005 rivet and 75-075 installation tool. Let us know if you have any further questions!
