Window Balance

Question

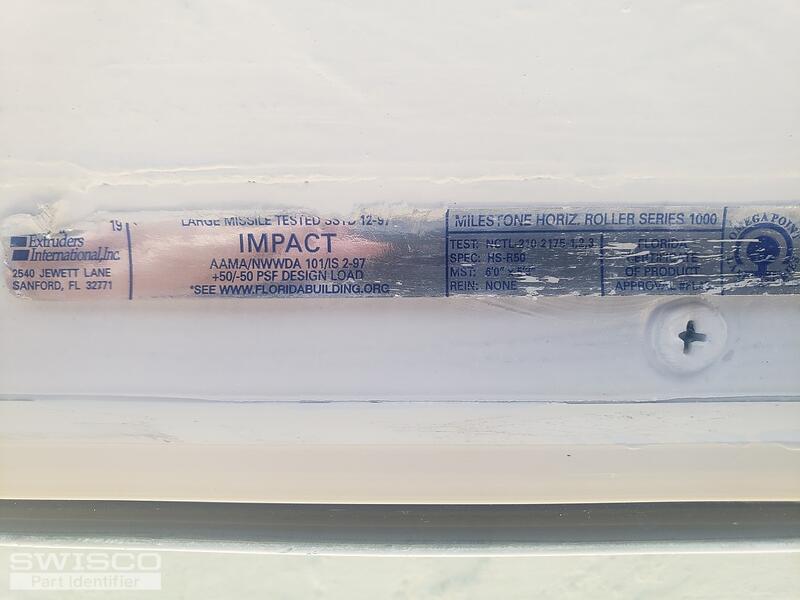

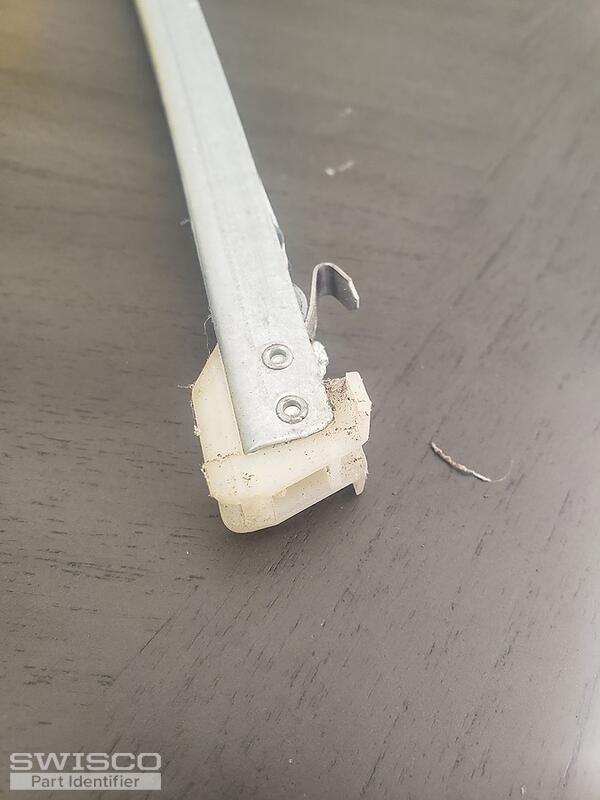

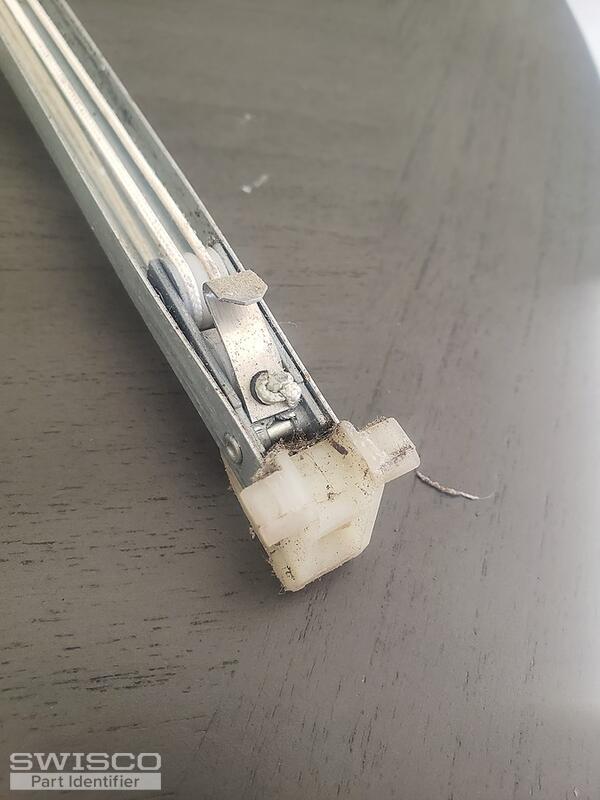

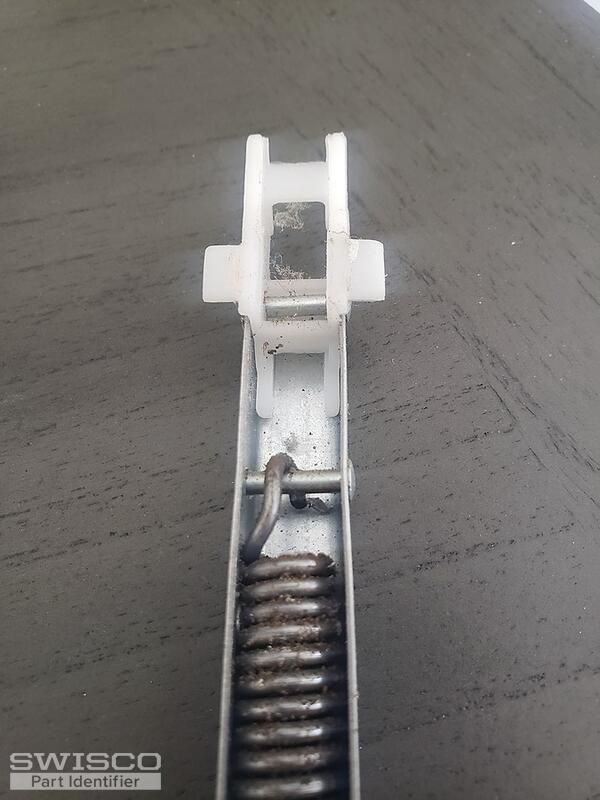

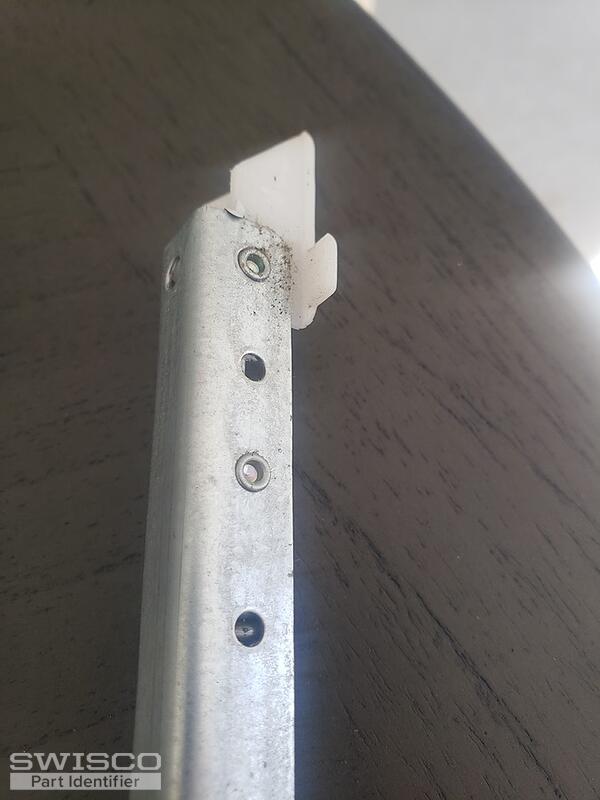

Stamped number on balancer is 28D. It measures 29" long. I need a total of 12 new complete balancers for 6 windows. Windows are 16 yrs old, Label states it's a

Milestone Horizon Roller Series 1000

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2840 spring strength options for your replacement balances.

Though I believe that you will need either the S380 or S385, we also carry a 7/8" deep shoe option, the 15-029, which we can supply through a custom order if you require the smaller shoe. Thank you and let us know if you have any questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Dimensions for 15-029
