Window Balance

Home Owner from San Diego

Jul 21, 2024 7:45 pm

Hi Swisco team,

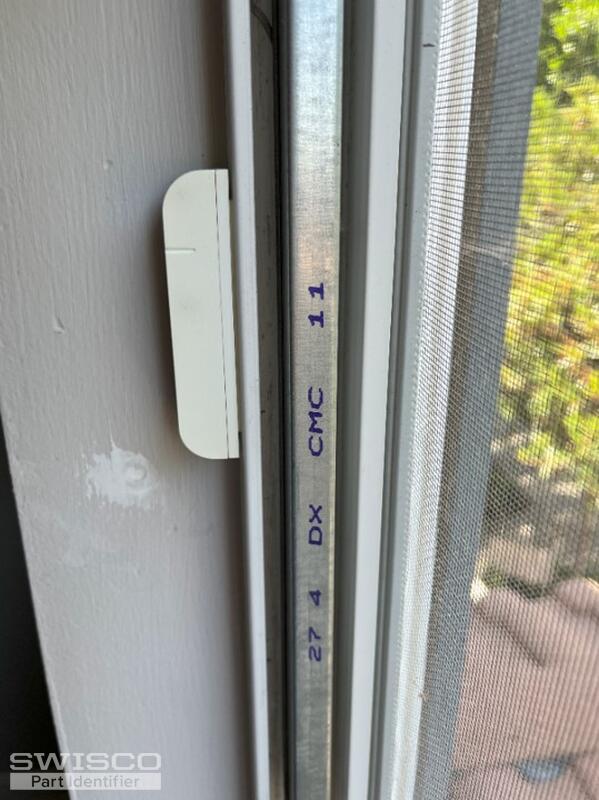

I need to get new window balance for my window. The old one I have now has "27 4 DX CMC 11" on it. Could you let me know which one I should order from your webpage?

Thanks.

Felix

1 user uploaded images

5 Replies

+ Add a Comment

Bob from SWISCO

Jul 21, 2024 8:55 pm

EXPERT

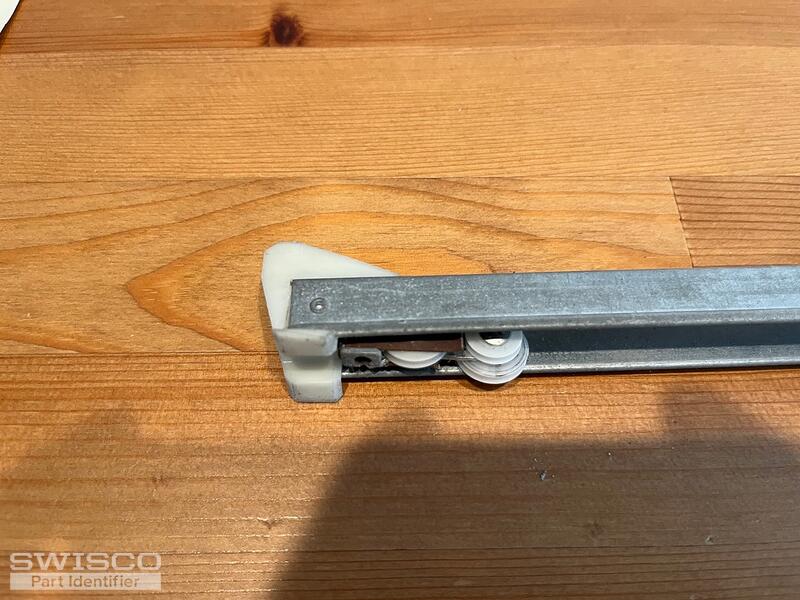

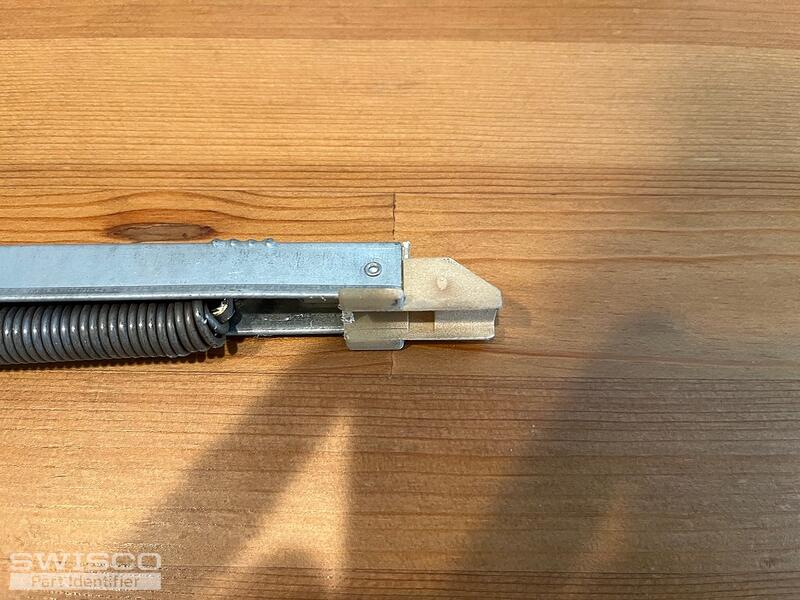

Hey Felix. I'm sure we can help, but that stamp is actually not an identifier. It just tells us the strength of the channel balance. If you can remove your balance from the window and send us clear pictures of the nylon attachments on the top and bottom of the metal channel, we should be able to narrow down what you need.

Home Owner from San Diego

Jul 30, 2024 7:06 pm

Thanks, Bob.

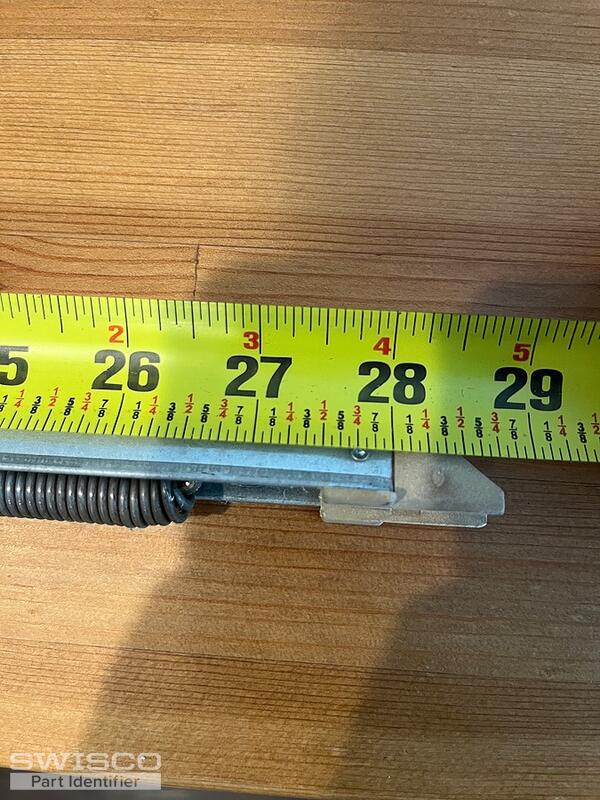

The metal part length of my balance: 28 inch.

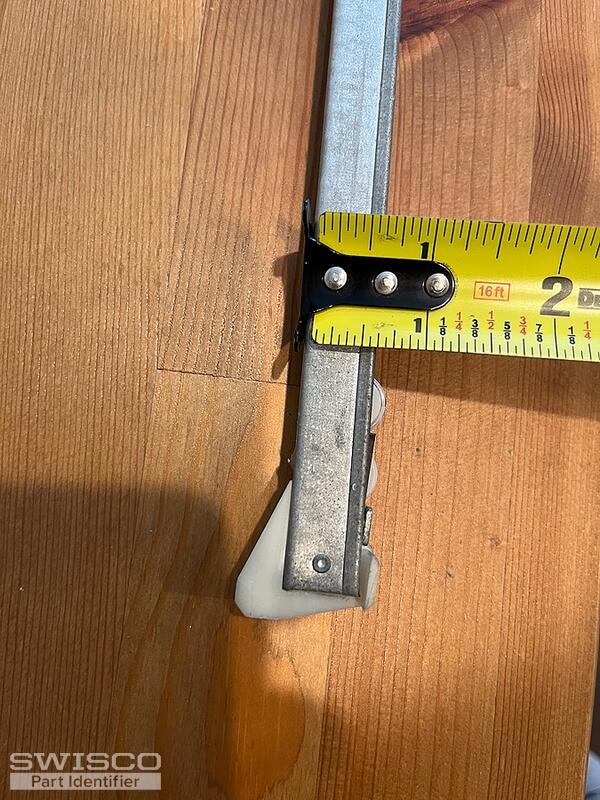

The depth: 5/8 inch.

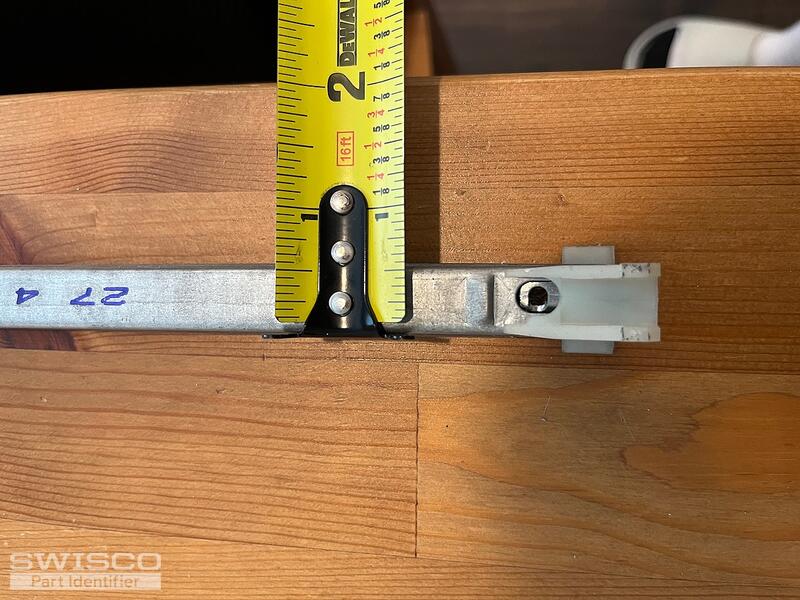

The width: 1/2 inch.

Thanks,

Felix

5 user uploaded images

Bob from SWISCO

Jul 31, 2024 10:53 am

EXPERT

Thanks! Based on what I see here, you have either our S380-28 or S385-28, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.

Home Owner from San Diego

Jul 31, 2024 9:28 pm

Thanks, Bob.

However, may I know which option should I choose?

Thanks.

Bob from SWISCO

Aug 1, 2024 10:00 am

EXPERT

Sure, your old stamp of "27 4" usually corresponds to our 2740 stamp option. If you wanted to confirm, you can always weigh your sash on a scale and refer to the weight chart we show on that balance's store page.
