Window Balance Indentity Help Please

Handy Person from Winter Garden, FL

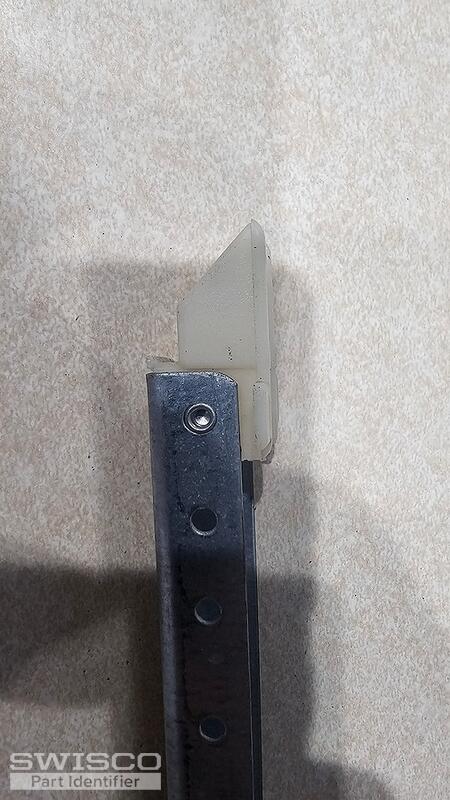

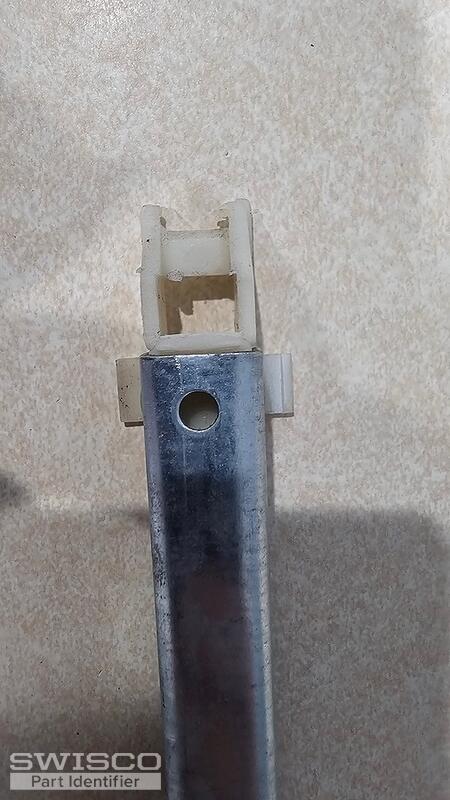

The metal part is exactly 29" long, 9/16" wide, and 1/2" deep. Stamp on it os 28C USB. Photos attached.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. It's possible that this is an S380-29 Channel Balance. Just make sure the depth of the bottom nylon shoe is 1". The depth is the measurement from 'heel-to-toe'. See the diagram below for reference. Measure your old balance's shoe to see if it matches. Let me know if it is not 1".

Assuming it is a 1", then you have a S380-29. Choose 2830 as a stamp option. Let me know if you have any questions.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
