Looking to make sure I'm ordering the correct balance before I order them.

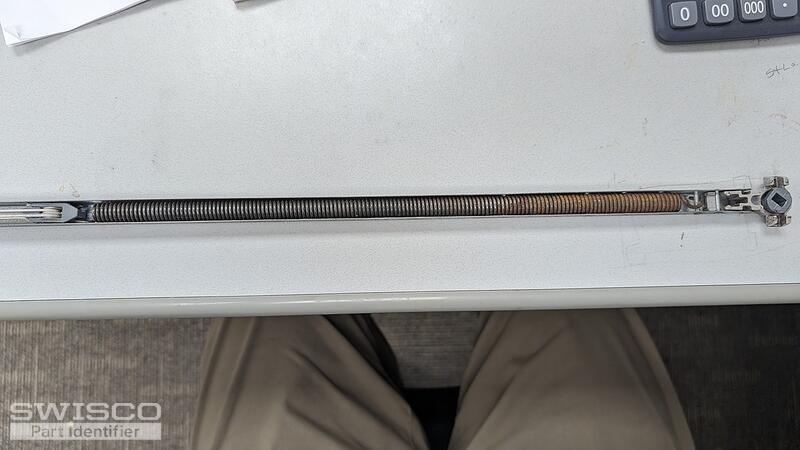

Metal channel measures is 26" long and 9/16" wide.

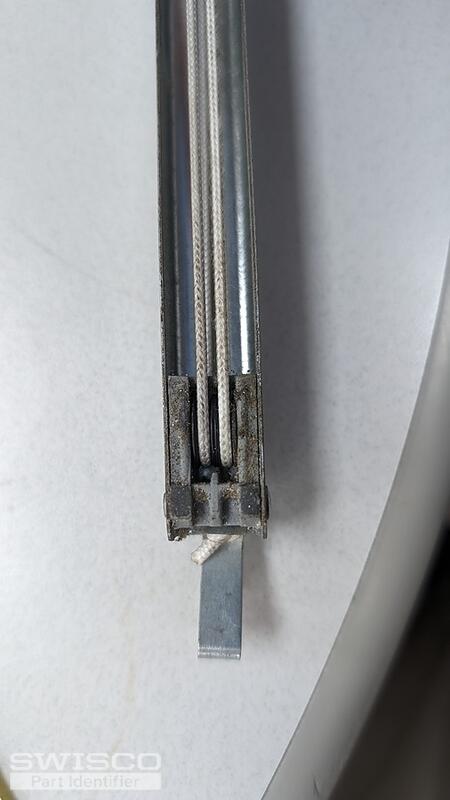

It is stamped with a 26C BS and looks like is probably your S795-26, but mine has a hook clip on top, where the one in you photo is a screw in clip.
Thanks for your help.
Window Balance Replacement
Contractor from Saint Louis, Missouri
Mar 19, 2024 11:08 am
5 user uploaded images
4 Replies
Casey from SWISCO
Mar 19, 2024 2:52 pm
Hello,
I agree that your balances are similar to the S795-26 (26C) with two exceptions. Your assembly uses the 15-198 pulley clip and 15-195B open-cam T-lock shoe for installation. We can provide the replacements that you need but it will need to be a custom order. We'll just need to confirm the number of balances that you need, with the minimum being two, to send over a price quote. Thank you!
Profile view of 15-198
Detail of 15-198
Dimensions for 15-195B
Dimensions for 15-195B
Alternate view of 15-195B
Contractor from Saint Louis, Missouri
Mar 19, 2024 3:54 pm
Thanks for getting back to me so quickly.
I am replacing 1 window unit. So I would need 2. I don't know if the right and the left are different from each other.
I am replacing 1 window unit. So I would need 2. I don't know if the right and the left are different from each other.
Casey from SWISCO
Mar 20, 2024 8:45 am
Great, we just sent over an order link and price quote for the balances you requested, which are non-handed so they can be installed on the left or right side of the window. Take a look and let us know if you need anything else.
