A home owner from Pottstown, PA 19465 says:
September 25, 2018
My pivot bar matches the dimensions for part 26-021. The thickness of mine is 3/16". Is this the same dimension for the 26-021? The only marking on the pivot pin is number 2311.

The T-Lock balance shoe looks like your part # 15-194. All the dimensions given match my unit.

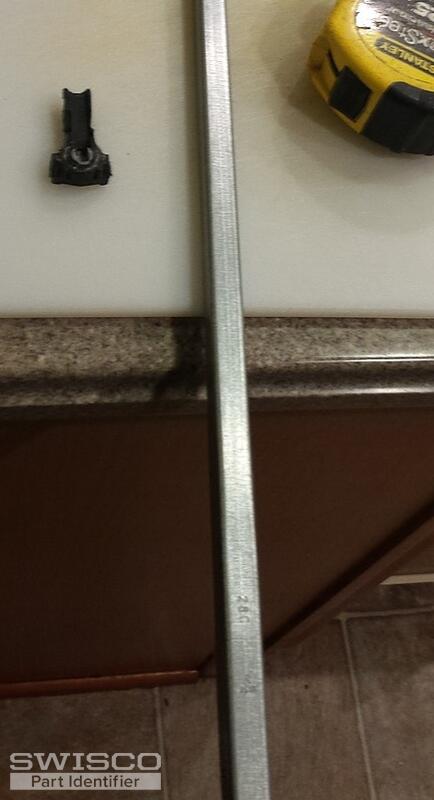

The window balances appear to be BWI 28C. The overall length of the balance is 28". It's width is approximately 9/16". My balances are good, I just don't know if the 15-194 will work with them. They attach with hooks into a hole in the window channel.
Profile picture of Tom
Tom from SWISCO responded:
October 2, 2018

Thank you for posting. I'm afraid the 15-194 won't work for you. Your pivot shoe, and as a result your metal channel, has a deep groove in the stem. The 15-194 has no such groove, which means it will not fit in your metal channel. You'll need an all new Series 795 balance. I still recommend buying the 15-194, as you'll have to swap it out with the bigger shoe that comes with the Series 795 by default.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
