Window Balance Size

Question

Hello,

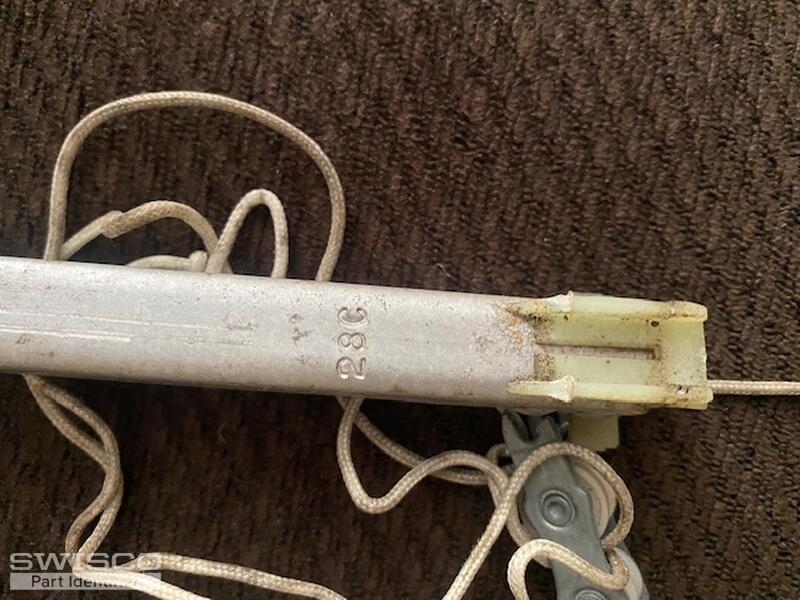

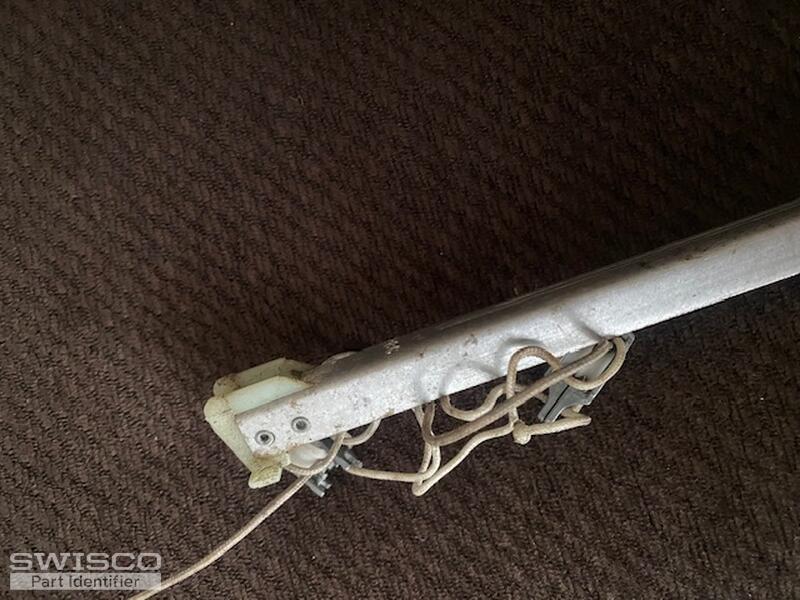

I am wondering if you could please tell me the correct size of this window balance so I can order and replace. I had a few windows not staying open a few years ago and on the receipt it had 2820 wing ends? However, the only code I can find on the balance I just removed was 28C. I have attached 6 photos for you to review, please let me know if you need anything further. The length from metal to metal is 29 inches, I have non tilt windows. I really appreciate your time and help with this matter. I want to make sure I order the correct balance as my windows are very heavy and I don't want my kids or anyone getting hurt opening them.

Thank you again.

Sincerely,

GIna

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The 28C stamped on your balance would generally correspond to 2830 spring strength options for your replacement balances, which would support a sash between 16-23 pounds. If you're unsure if the stamp code on your balance is correct, I'd recommend weighing your window sash to confirm the correct strength options. There is a chart on the product page that explains how to choose your option based on the sash weight. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
