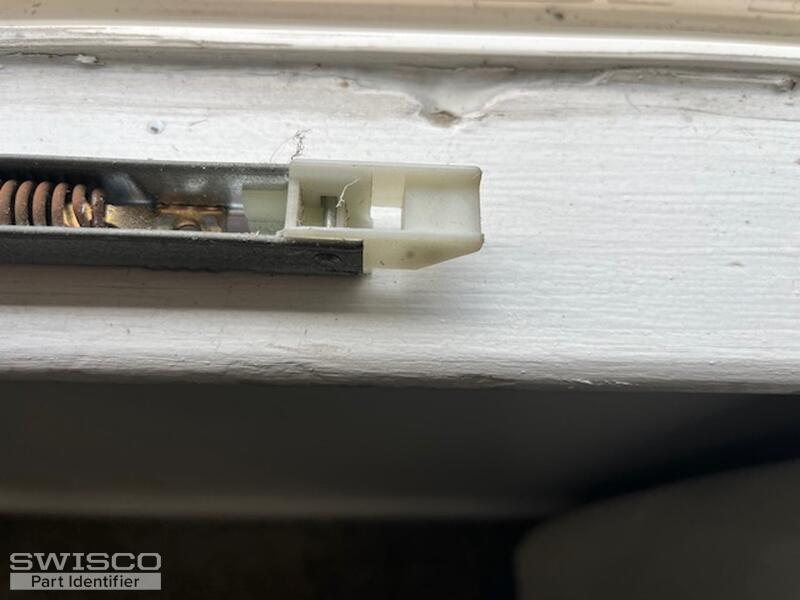

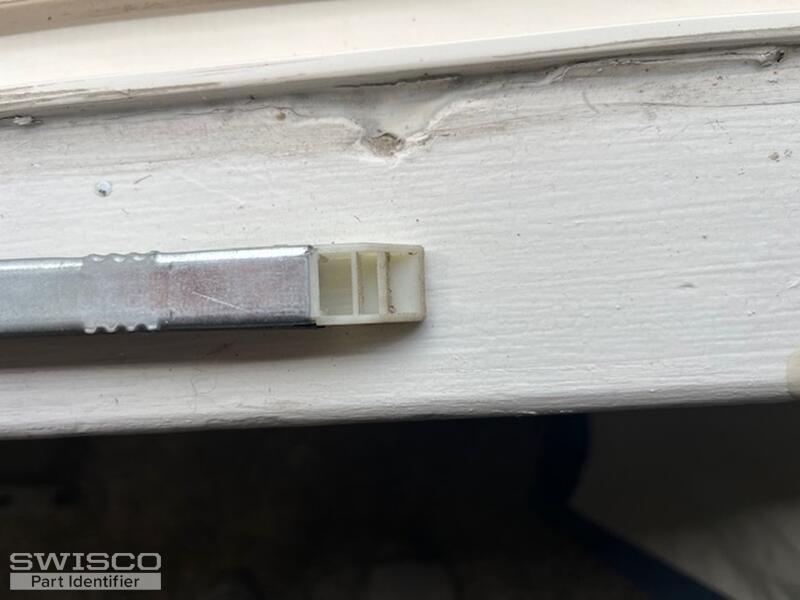

The sash weights 16.4 lbs. Lenght of balance is 24 inches(not including brackets on each end)
Can you make sure I order the correct parts. Need 2, 1 for each side.
I also need one pair of window stops, measured 3in long, 1.25in wide, white.

5 user uploaded images

6 Replies

Emily from SWISCO

Feb 17, 2025 2:08 pm

Thank you for contacting us. Take a look at the S351-24 and S390-24 channel balances. The difference between them is the depth of the bottom shoe so you'll have to measure as shown below. You can also select the 2330 stamp option. A pair of balances with this stamp will support a sash weighing 15 to 18 pounds.

As for the window stop, may we see photos of yours?

Comparison of the S351 and S390 balance shoes.

Handy Person from Concord California

Feb 17, 2025 9:35 pm

The bottom shoe was 1 and an1/8 so per your suggestion I will order the S390-24 channel balances. Thank you!!

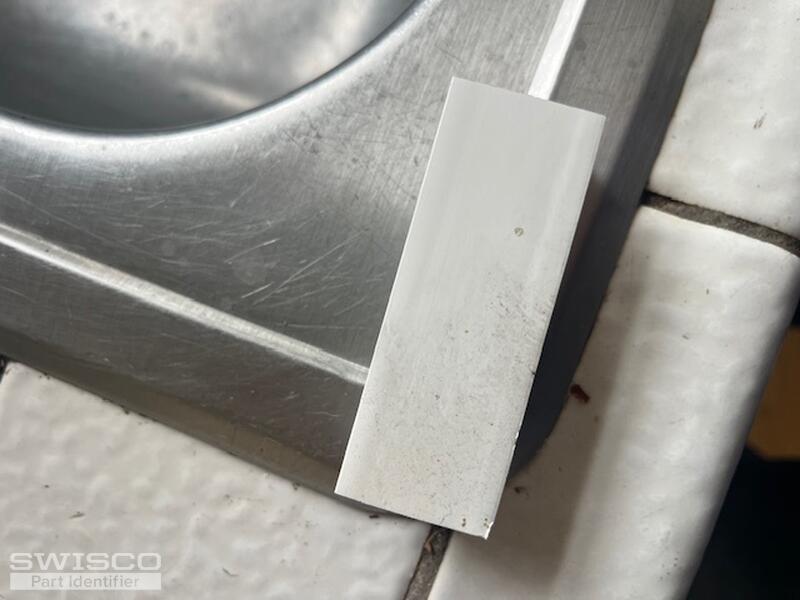

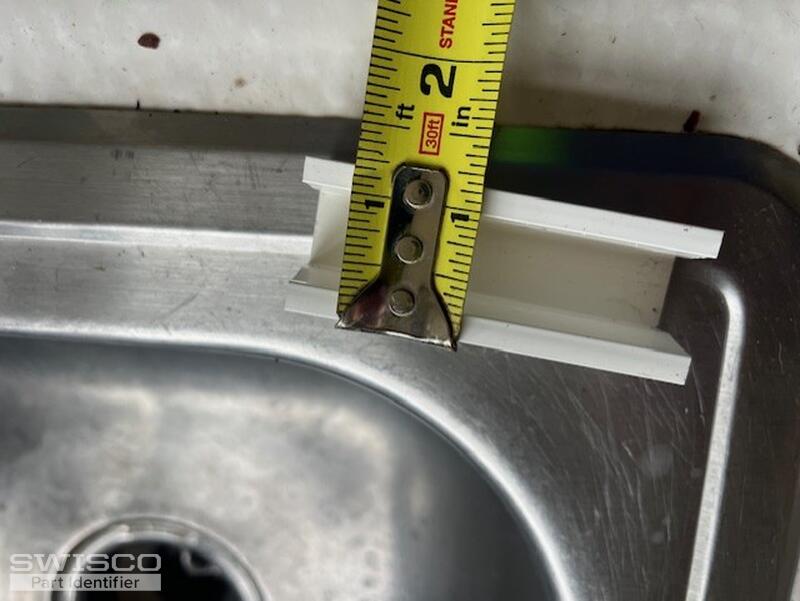

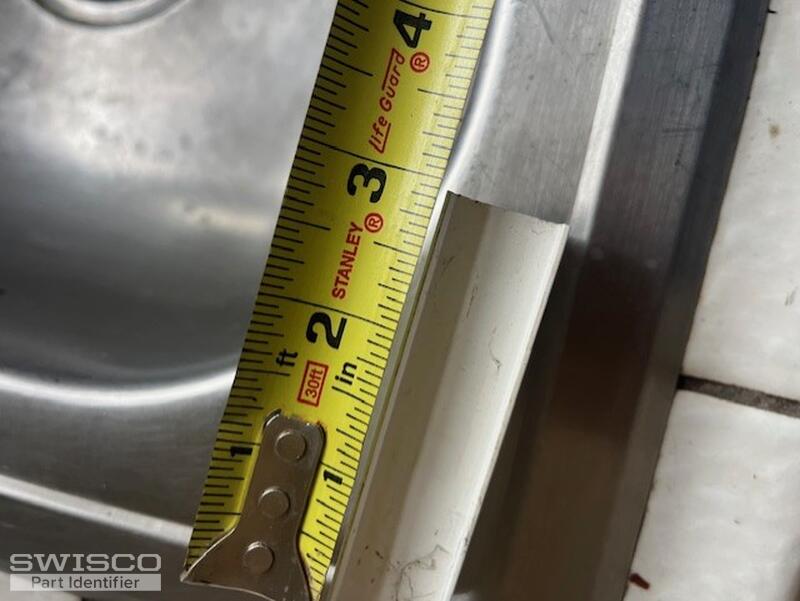

Per your suggestion attached is the sash stop. I need a pair.

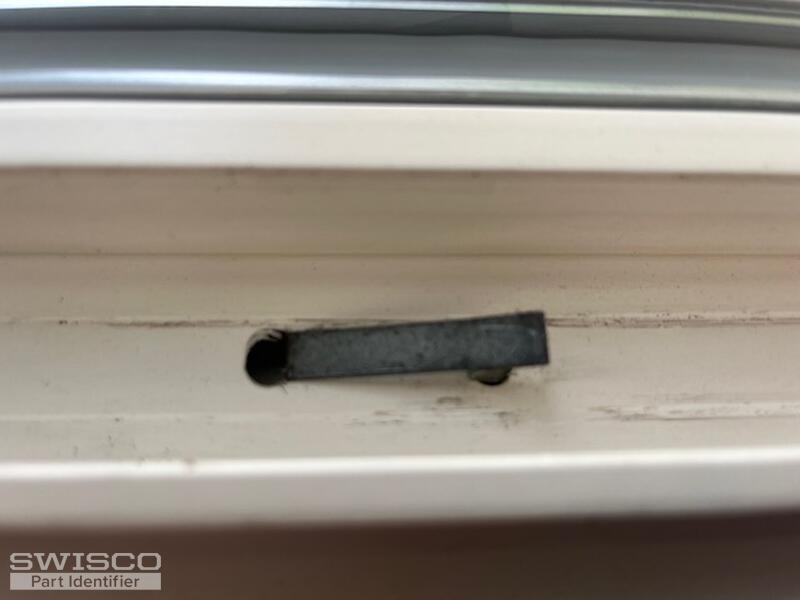

I also need a window balance catch if you have one, photo attached. Its 1/4 inch wide.

4 user uploaded images

Emily from SWISCO

Feb 18, 2025 9:17 am

Thank you for the additional photos! We have the 55-043 sash stop which is similar in design but it isn't a direct match so we can't promise it will work for you. Take a look at the specifications and see what you think.

As for the take out clip, please see the 16-002.
