Window Balance repair
Quick Learner from Charlotte NC
Jun 20, 2024 4:34 pm

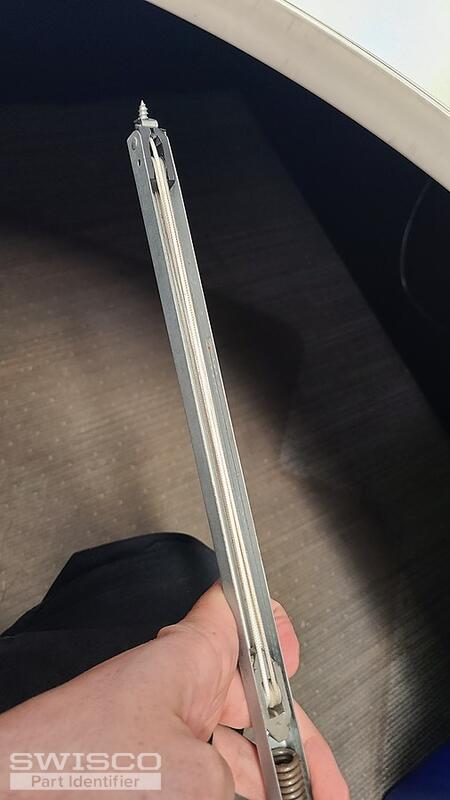

Hey there. I have a couple of balances that broke. The building is about 15+ years old. The balance just says 34c and in smaller letters BSI TT. I've attached pictures. These balances have grooves at the bottom at the shoe, that your offered balances do not have. Will your balances work, or do I need a special shoe to fit these?
4 user uploaded images
4 Replies
Jasmine from SWISCO
Jun 24, 2024 9:24 am
Thanks for reaching out! I am confident we can supply you with a replacement for this balance but I'll need to see a photo of the shoe at the bottom of the balance to confirm the best possible replacement. This is likely still connected to the bottom of the sash, in the window channel.
Please don't hesitate to reach out with any questions.
Quick Learner from Charlotte NC
Jun 24, 2024 12:38 pm

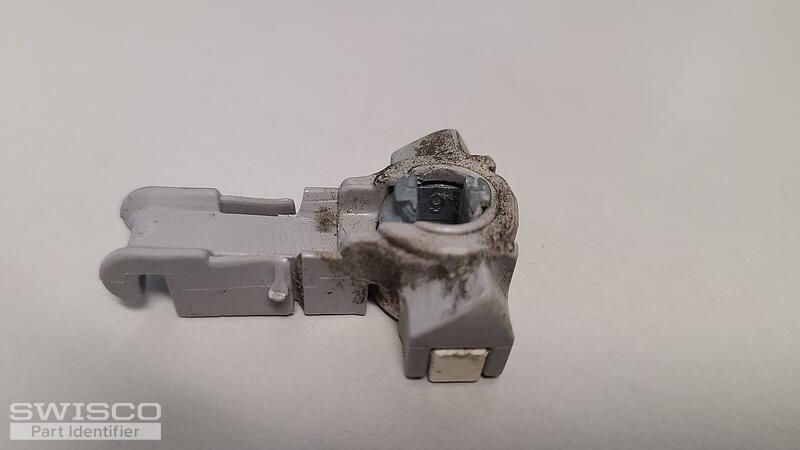

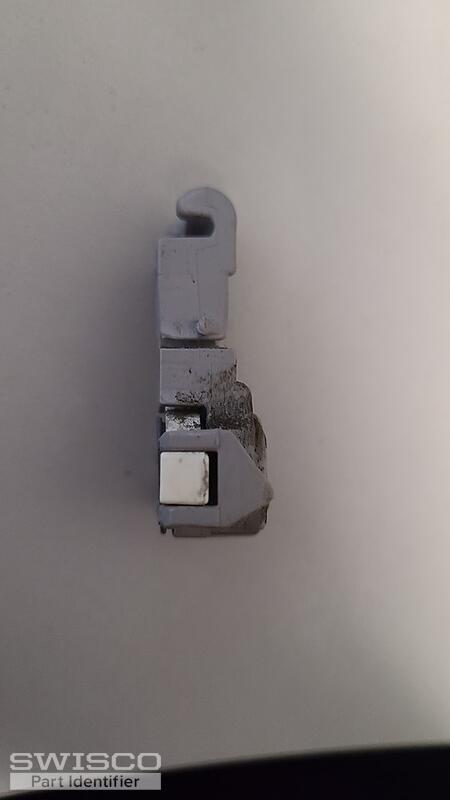

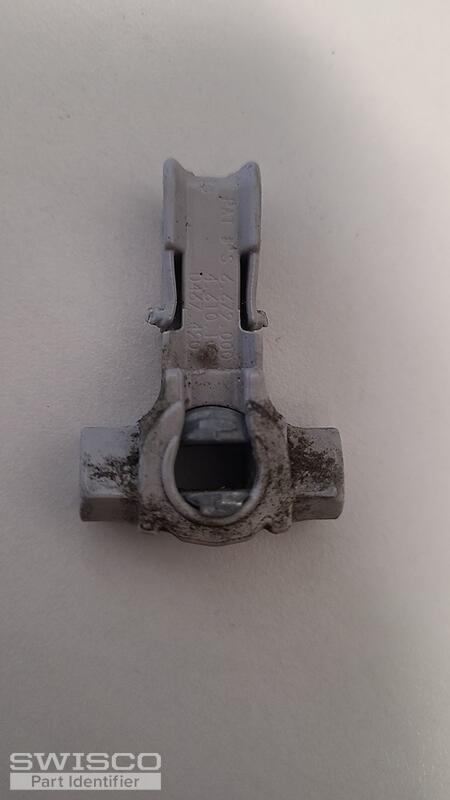

Hey Jasmine, thank you for responding. I believe the 15-236 shoe you have is what replaces this.
Hoping they work.
3 user uploaded images
Jasmine from SWISCO
Jun 24, 2024 3:00 pm
Yes, the 15-236 should work to replace the shoes. If the balance itself is broken, you'll need to replace the entire channel; ours would not be compatible with this T-lock shoe style.
Our Series 795 Channel Balance uses the 15-195 1-1/4" T-Lock shoe.
