Window Balance to bottom tilt window

A quick learner from Mastic NY says:

February 17, 2023

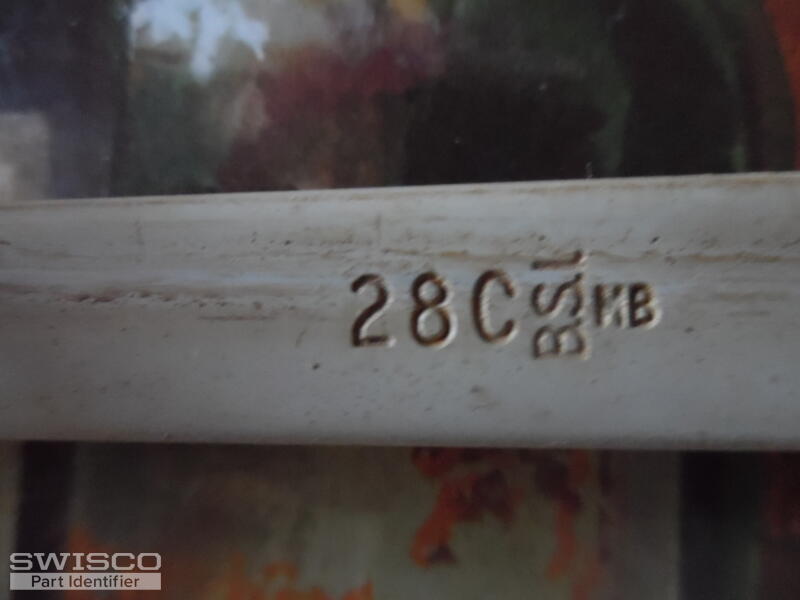

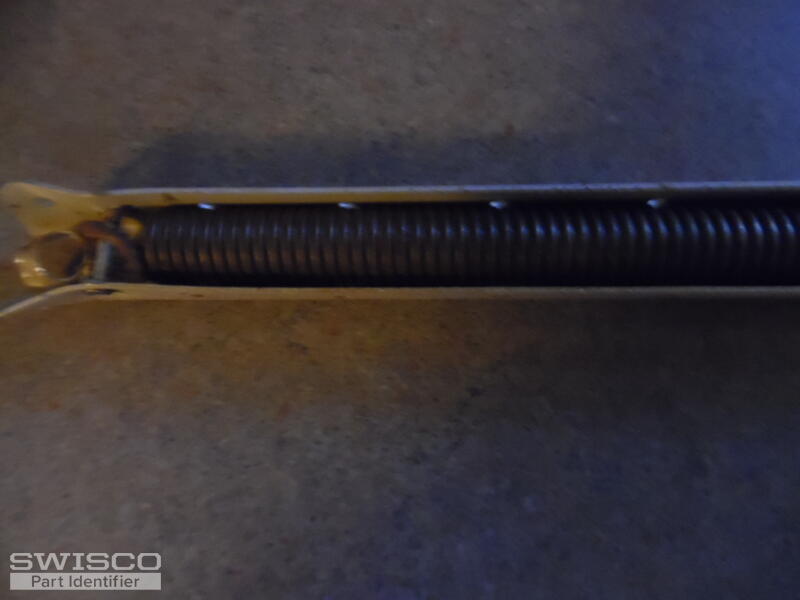

I have a Channel 28c , spring loaded , can I buy the whole set up all together ?

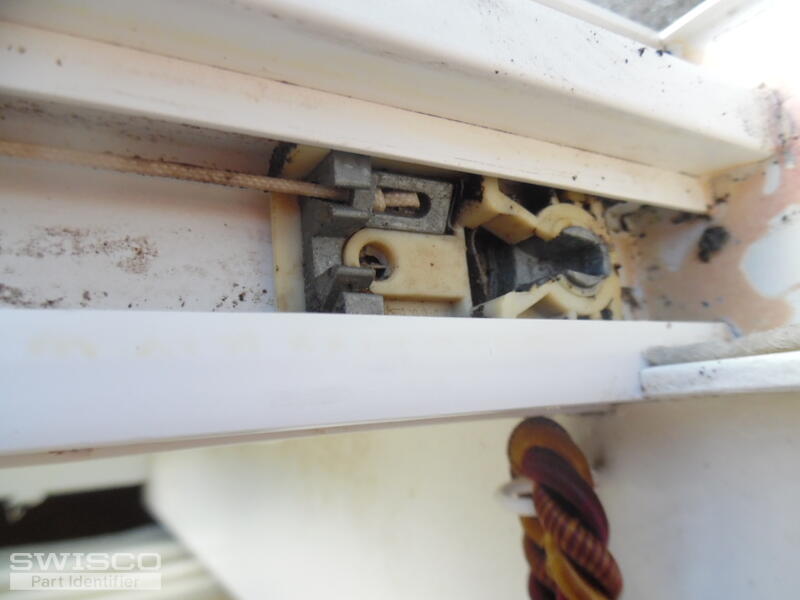

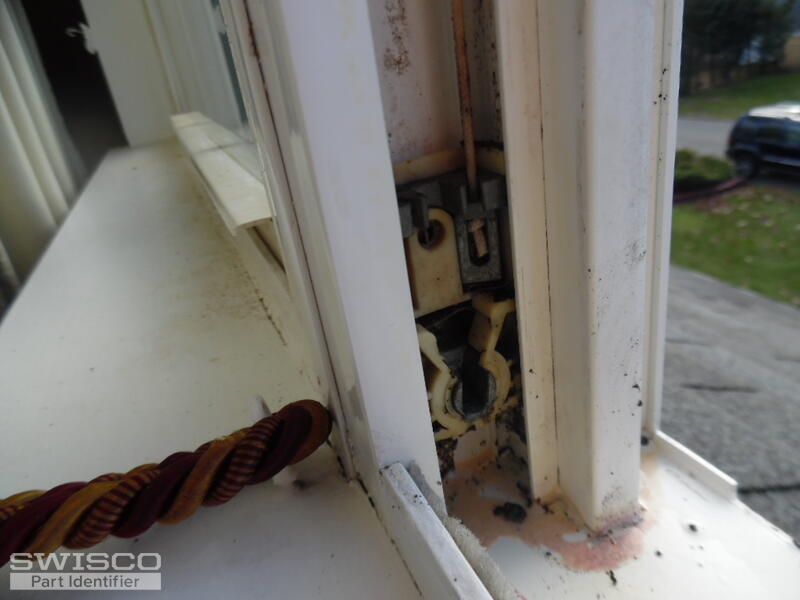

I am sending pictures to let you know what I have I noticed there is a pin h9olding the bottom . let me know what you think
Thank You

Thumbnail of the uploaded file named window b 3.JPG

Thumbnail of the uploaded file named window b 5.JPG

Thumbnail of the uploaded file named window b 1.JPG

Thumbnail of the uploaded file named window b 2.JPG

Tom from SWISCO responded:

February 20, 2023

Hello! Your balance appears to be a match for our S770-28. Look it over and see if you agree.

The balance comes pre-assembled and ready to install out of the box. The only component sold separately is the pivot shoe, which is our 15-129. You may very well be able to just reuse the original, since it doesn't appear to be damaged.

Pivot Shoe, 9/16" Thick

15-129

$2.50

28" Series 770 Balance

S770-28

$12.70
