Window Balancer

A quick learner from Florida says:
March 5, 2021
Hi, I have 3 Florida Extruders widows that need new window balancers.

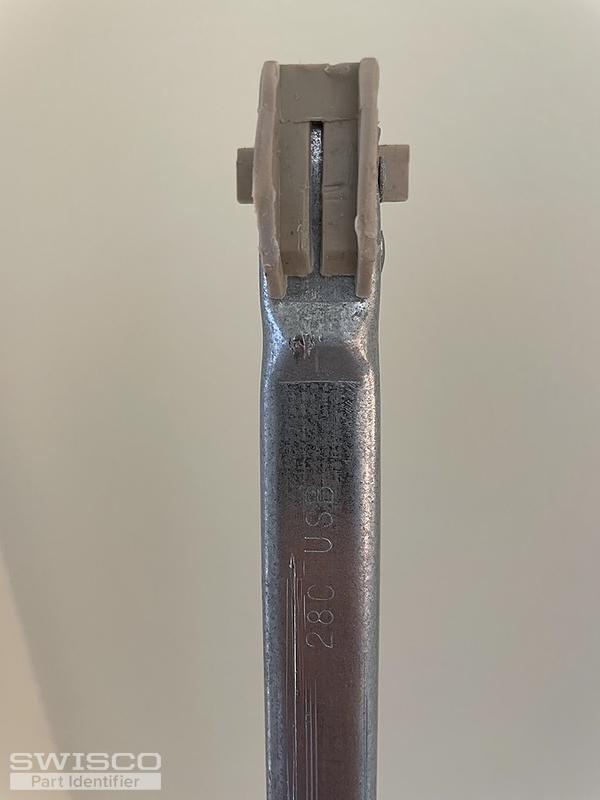

The number stamped is 28C USB
The metal channel is 29" long
The glass is single pane, do I need to weigh it

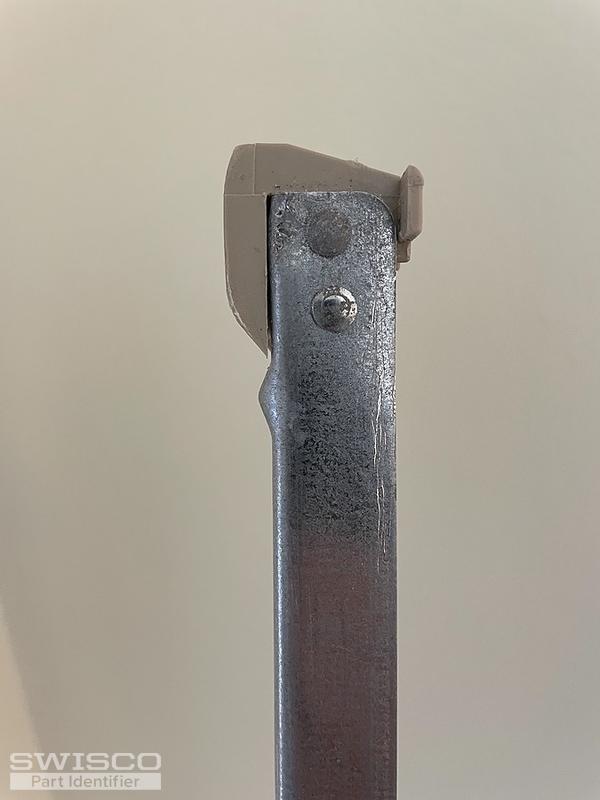

Here are some pictures of the ends, let me know what part # I need to order.
Thanks
Thumbnail of the uploaded file named 334AA621-9A8F-42EE-BFE4-009D3F01B24F.jpeg
Thumbnail of the uploaded file named F9A07DBC-19E9-4156-8FF0-8D2C2129BD9A.jpeg
Thumbnail of the uploaded file named E01936C2-C1B0-4911-90F7-7286E22A79D7.jpeg
Thumbnail of the uploaded file named B64AE1B7-2E3E-4DC2-BFB6-85822F7E6572.jpeg
Thumbnail of the uploaded file named 5473AA4C-1242-4A3B-8F79-7A5C1A7B3776.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 5, 2021

Hello,

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2830 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
29" Series 385 Channel Balance
29" Series 385 Channel Balance
S385-29
$11.10
