Home Owner from Folsom, CA

Jan 27, 2025 4:53 pm

The measured length of the metal part is 24-inches and the width is 1/2 - inch for a non-tile window. Just not sure what style number to get (s380, S380, S395 or some other model).

3 user uploaded images

6 Replies

Emily from SWISCO

Jan 28, 2025 2:00 pm

Thank you for reaching out to us. We're happy to help with this. Can you measure the bottom shoe and tell us the depth? Can you also show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Profile view of a winged balance attachment

Home Owner from Folsom, CA

Jan 28, 2025 9:20 pm

I will do so this weekend. I am away for business until Friday so I can get the informaiotn when I get back this weekend. Thanks for the quick response.

Emily from SWISCO

Jan 29, 2025 7:39 am

No problem, we'll be here to help!

Home Owner from Folsom, CA

Feb 15, 2025 10:36 pm

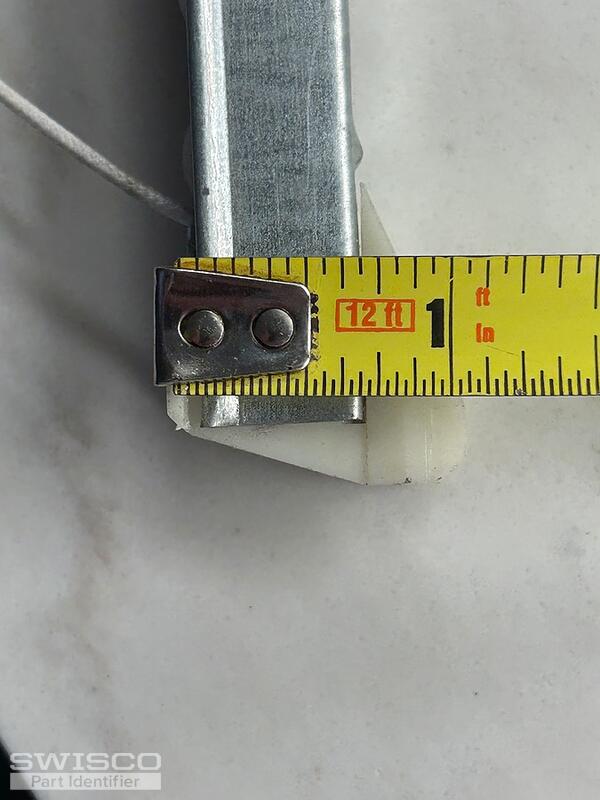

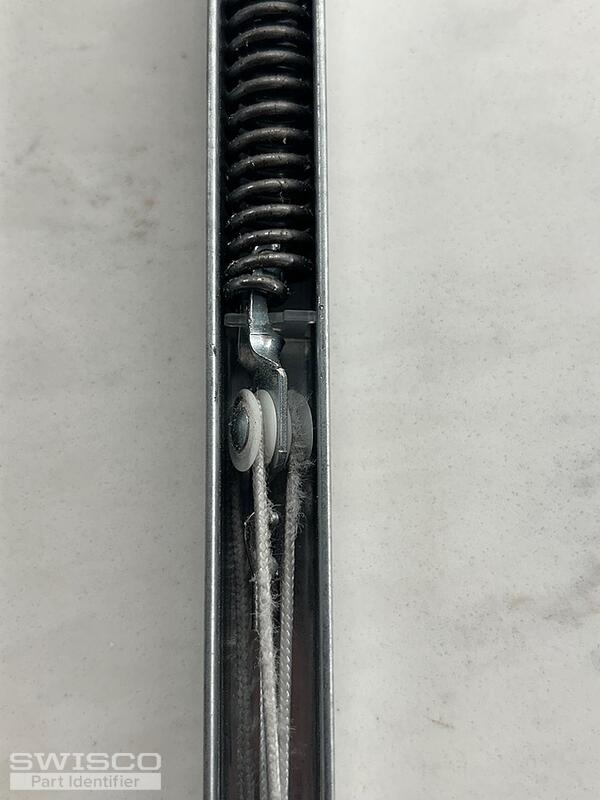

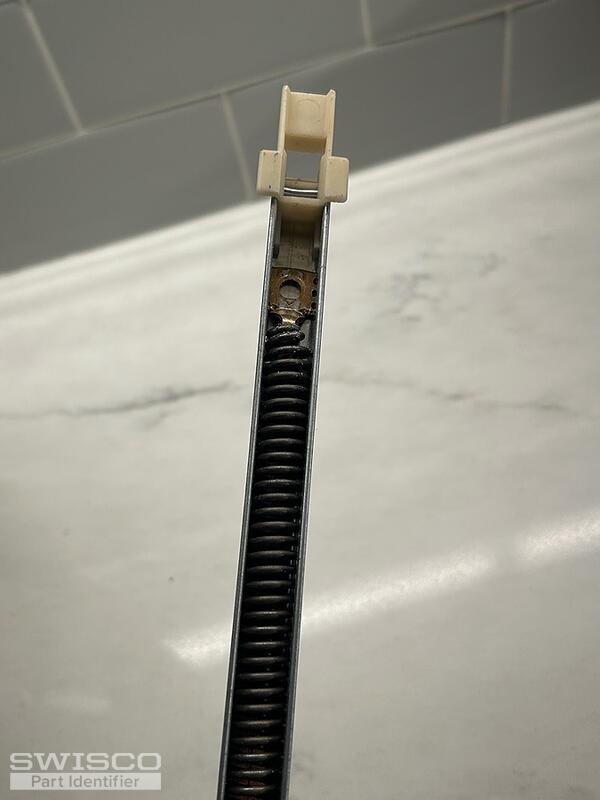

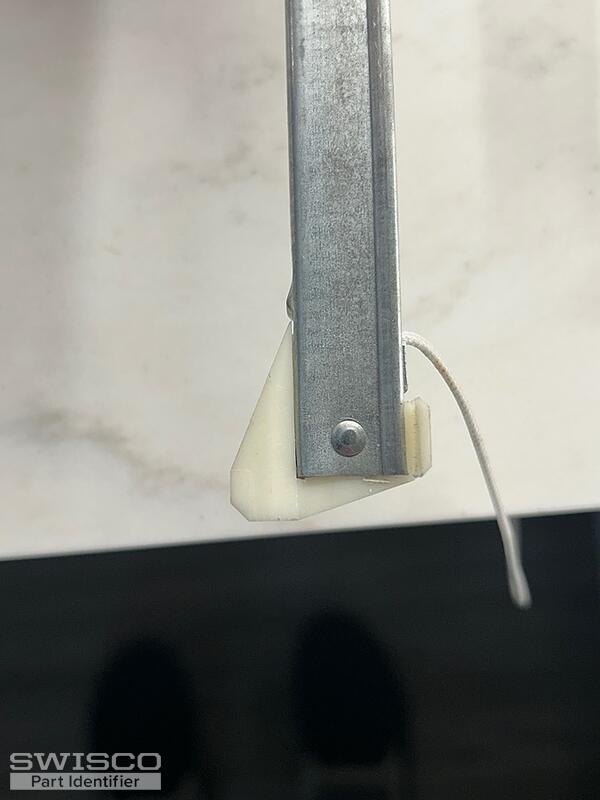

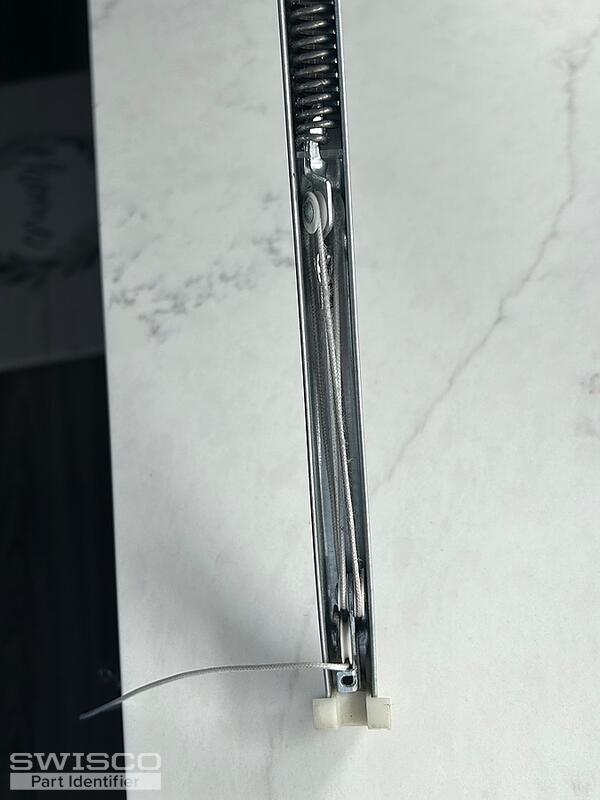

attached are some more pictures.

5 user uploaded images

Emily from SWISCO

Feb 17, 2025 8:02 am

Thank you for the additional photos! Your balance appears to match the S380-24 or S385-24 with the 2350 stamp option. The difference between the two is the depth of the bottom shoe. Take a look at the photo below and see which is the best match.

Comparison of the S378, S380 and S385 balance shoes.
