Window Balances

A home owner from FL says:

1/2" Wide Channel Balances , the metal is 29" long, see a # 2830

Thumbnail of the uploaded file named IMG_5234.JPG
Thumbnail of the uploaded file named IMG_5232.JPG
Thumbnail of the uploaded file named IMG_5233.JPG
Profile picture of Tom
Tom from SWISCO responded:

Based on your photos, you have either our S380-29 or S385-29 . The only difference between them is the size of the bottom fitting, which is indicated on their respective store pages. You'll need to measure your bottom fitting to confirm which one is the better match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from FL says:
Thank you Mr Tom. My bottom fitting is 7/8 ; NOT EVEN AN INCH. IS IT SAFE TO BUY THE S380

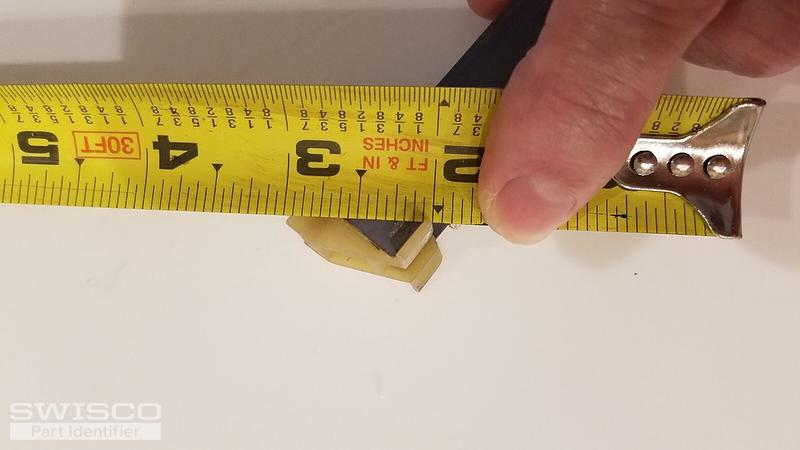

Thumbnail of the uploaded file named Resized_21.jpg

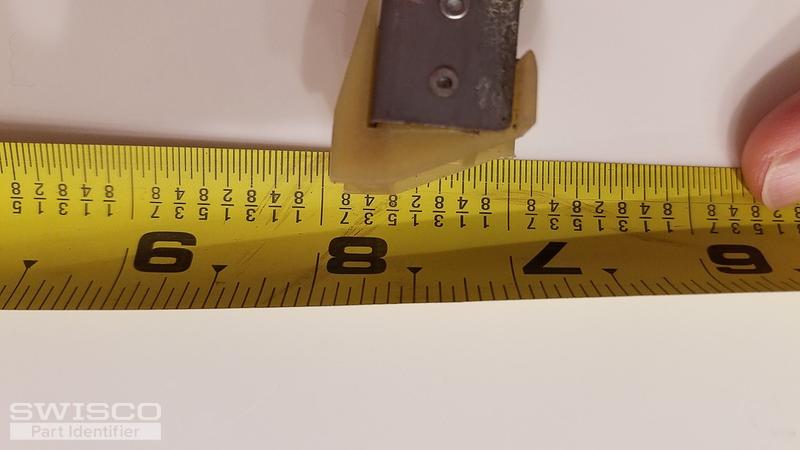

Thumbnail of the uploaded file named Resized_20210130_124752.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for confirming. If your bottom shoe is less than 1", then that means your balance will have to be custom made. Basically it would be the same as the Series 380 but we'd swap the bottom shoe out for the 7/8" deep 15-029 .

Would that interest you? If so, please let me know how many you wanted to buy and I can email you a purchase link and price quote for that quantity.

A home owner from FL says:
Thank you. I need 6 and some type of orderlies lubricant so my wife can easily open these window around the house. After I install these 6; will be inspecting my other windows. THANK YOU AGAIN
Profile picture of Tom
Tom from SWISCO responded:

Thanks, I'll send that to you right now. For lubricant, I recommend silicone spray, which you can pick up at any local hardware store.
