Window Balances

A handy person from New York City, USA says:
October 2, 2022
Hello!

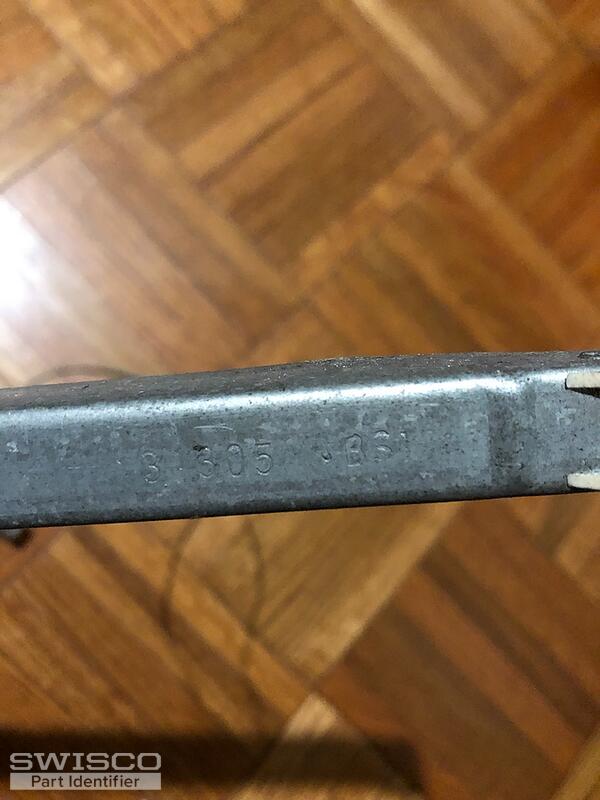

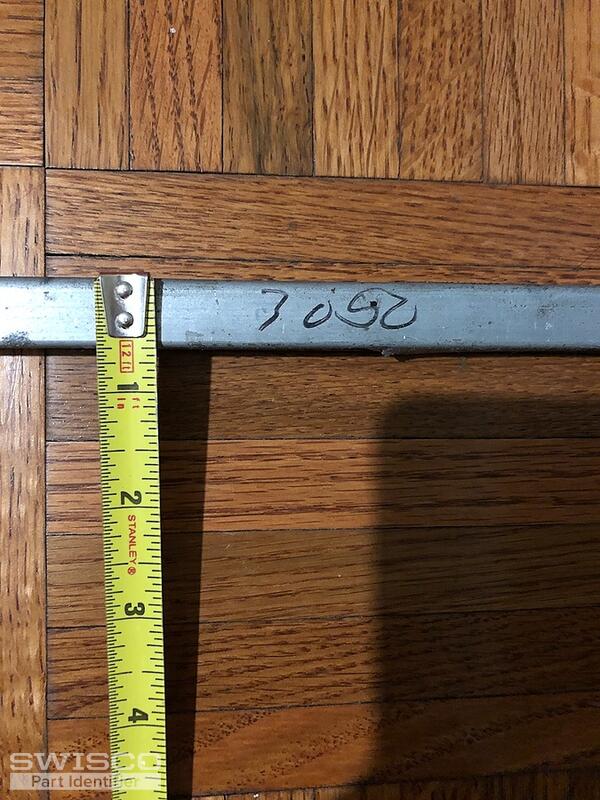

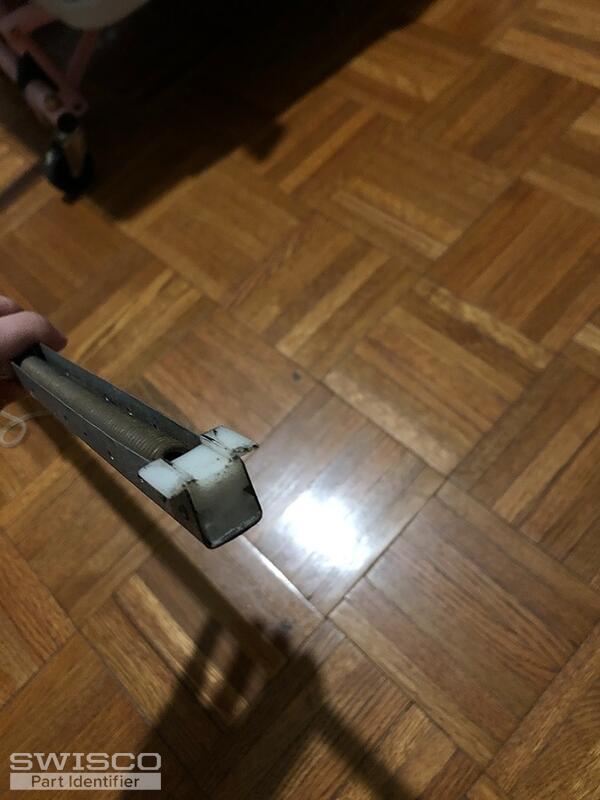

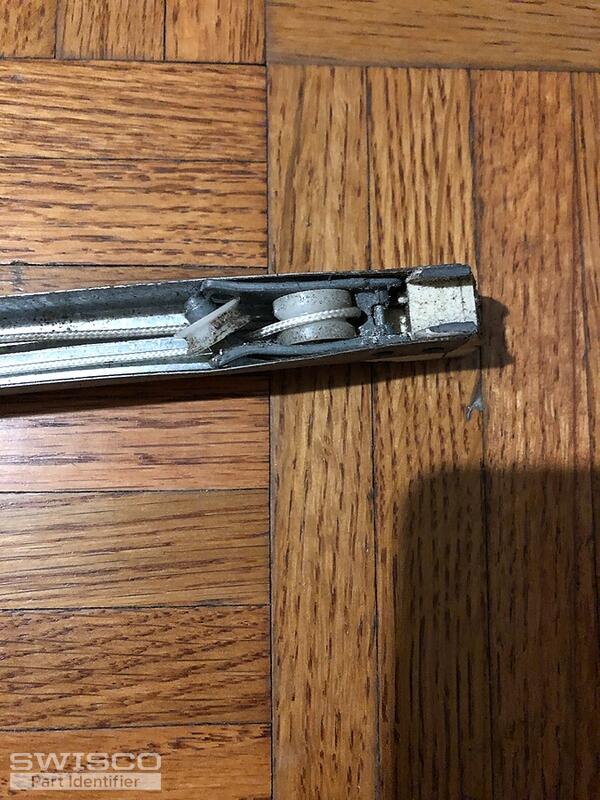

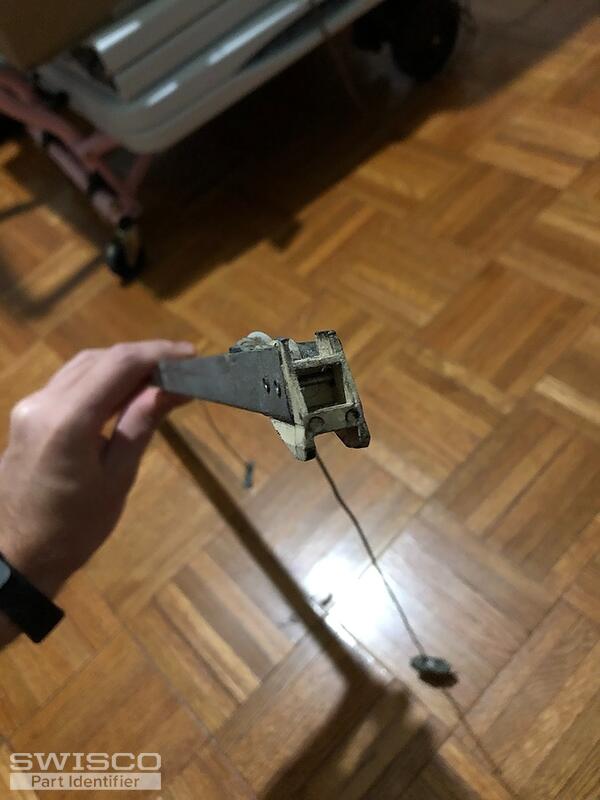

I have some windows that are at least 20-30 years old, and some of the balances have busted, and some are just really difficult so open and close. I'm capable of removing and installing the balances, but I want to be extra sure that I buy the correct replacements. The metal shaft of the balance is 31 and 9/16" long, maybe a touch over 1/2" wide, same for the depth. It's a spring and pully system on the inside. The bottom plastic bit sticks out on one side more than the other, and the top has two wings that slide into a metal track on the actual frame. There's some marker on it that says 3052, and the stamp says 3 305 BS1(?) not sure on that last bit.

I'll need 10 balances total (5 windows) and the same number of stopper clips (Some current ones are busted and the others are super rusty). Those measure 1 1/4" long by 1/4" wide.

Best,
Elliot
Thumbnail of the uploaded file named IMG_7779.JPG
Thumbnail of the uploaded file named IMG_7782.JPG
Thumbnail of the uploaded file named IMG_7787.JPG
Thumbnail of the uploaded file named IMG_7789.JPG
Thumbnail of the uploaded file named IMG_7777.JPG
Profile picture of Casey
Casey from SWISCO responded:
October 7, 2022

Hello,

We can supply your replacement balances but it will need to be a custom order due to the length and stamp code imprinted on the metal channel. We just sent over an order link and price quote for you to review.

As for your stopper clips, I can't be sure without seeing yours but it sounds like you may be referring to the take-out clips that catch the balances when removing them. If so, take a look and compare the 16-002 to yours. Thanks for posting!

Alternate image for 16-002
Alternate image for 16-002
Take Out Clip
Take Out Clip
16-002
$0.41
30" Series 370 Channel Balance
30" Series 370 Channel Balance
S370-30
$11.58
