Window Balances

Handy Person from North Carolina
Jan 16, 2025 6:42 am

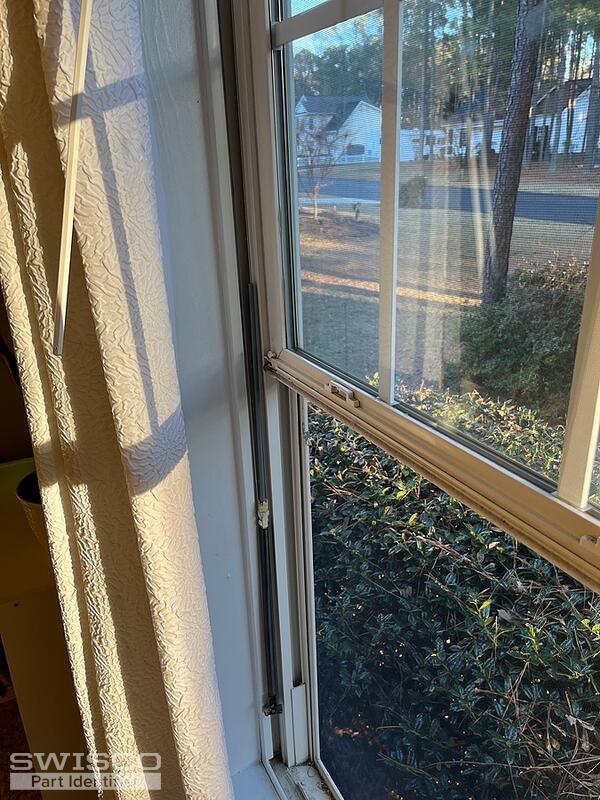

The plastic pulleys for the balancers got brittle and cracked. The balances do not have a separate housing for them and just ride in channel. The balance string attaches to the top of the window channel on a small plastic bracket. The spring & shoe seem to be in good enough condition to reuse, but i wasn't able to find replacement pulleys.
5 user uploaded images
4 Replies

Casey from SWISCO
Jan 16, 2025 10:51 am


Hello,
Unforutnately, your crossbow balances are no longer available but we offer the S795 channel balances that will work as long as your original springs measure 1/2" in diameter. Review our conversion video below to confirm the parts and specifications you'll need. Thanks for posting!

Handy Person from North Carolina
Jan 20, 2025 2:22 pm
Thanks for the quick reply. Just to clarify the measurement section. It is only the spring section of the original balance that i will need to measure for the new balances, correct?

Casey from SWISCO
Jan 21, 2025 8:59 am

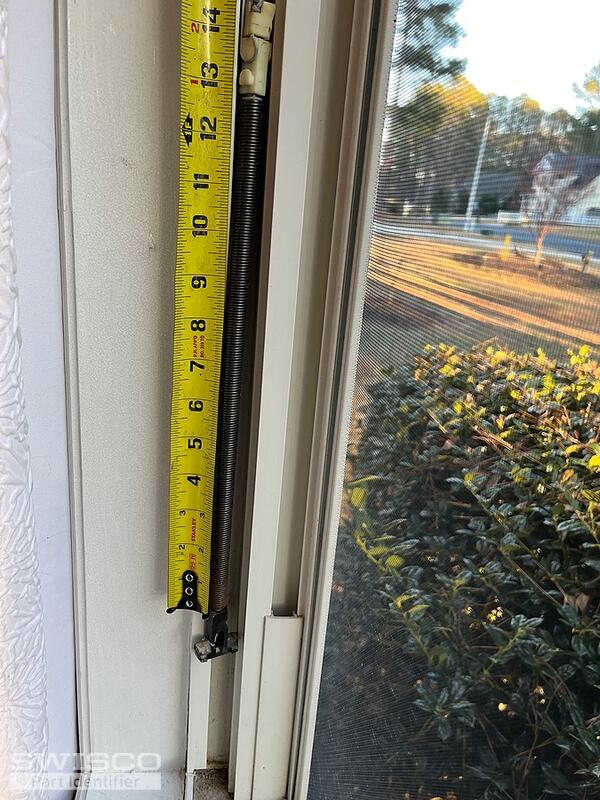

For the length, you'll need to measure the entire balance as shown at time stamp 1:24 in our conversion video. You'll also need to measure the diameter of the spring to confirm it measures 1/2".
