Window Balances Identification

A landlord from SARASOTA, Florida says:

Require the following window balances:

2 - 12" balances with 1110E

2 - 18" balances with 1710E

4 - 24" balances with 2320E

I measured only the metal portion of balances. The plastic parts at the end and front are the same for all balances and can be see in pictures I have attached.

If you require more pics please let me know.

Florian

Thumbnail of the uploaded file named F319803C-7695-4EA7-A193-31F604405350.jpeg
Thumbnail of the uploaded file named 6C8D8058-D414-48CC-8ECD-9DCFEE0B77C0.jpeg
Thumbnail of the uploaded file named 24B03F49-2278-41A0-A3B9-2A921544D0B4.jpeg

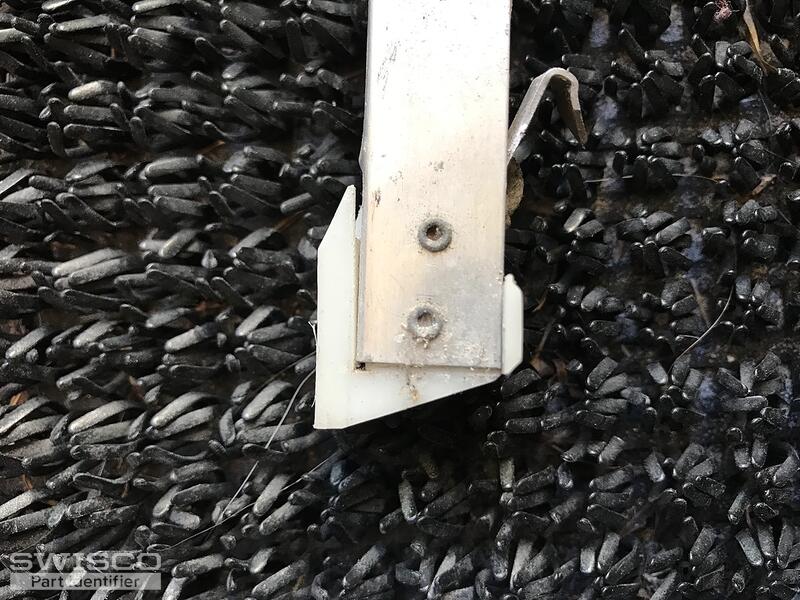

Thumbnail of the uploaded file named 3AC26AAA-3503-4CE7-B2D8-D7F77CE1AB81.jpeg
A landlord from SARASOTA, Florida says:
I don't seem to be able to find the correct plastic part for the back (pardon I don't know the proper name). Please assist. If you do not have it perhaps I can use a different one?

I attached 2 pics of the front and 2 pics of the back plastic parts.

Thanks!
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your patience in this matter. This appears to match our Series 380 channel balance. This has a 19-005 top and 15-005 bottom, so see if those match up. Our shoe looks like it might be a little bigger but I'm not sure. They don't make a shoe like the 15-005 any smaller, though. That's about as small as it gets. Worst comes to worst you'd have to file it down.

We didn't have a 12" length available on our site, but we just added it for you. See our S380-12.  For the other lengths, see our S380-18 and S380-24.
