Window Casing Hardware part 1

Home Owner from Laguna hills

May 26, 2023 5:13 pm

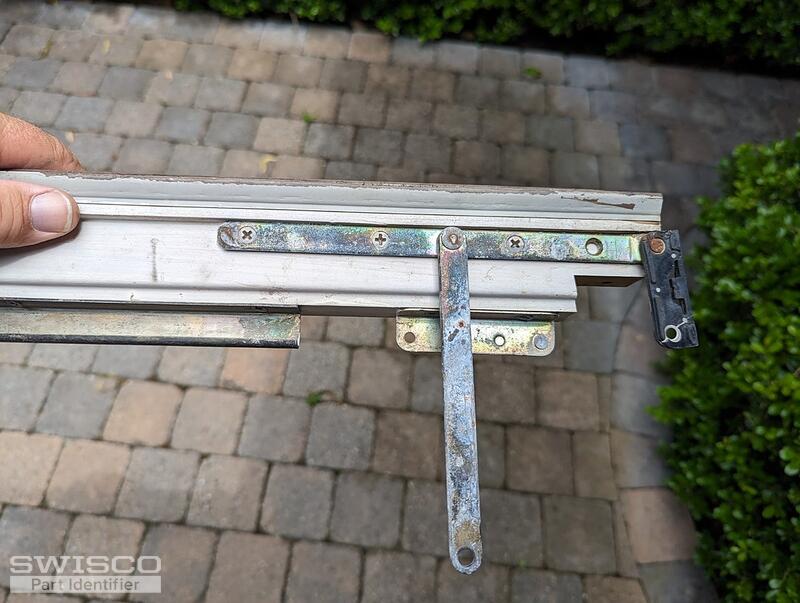

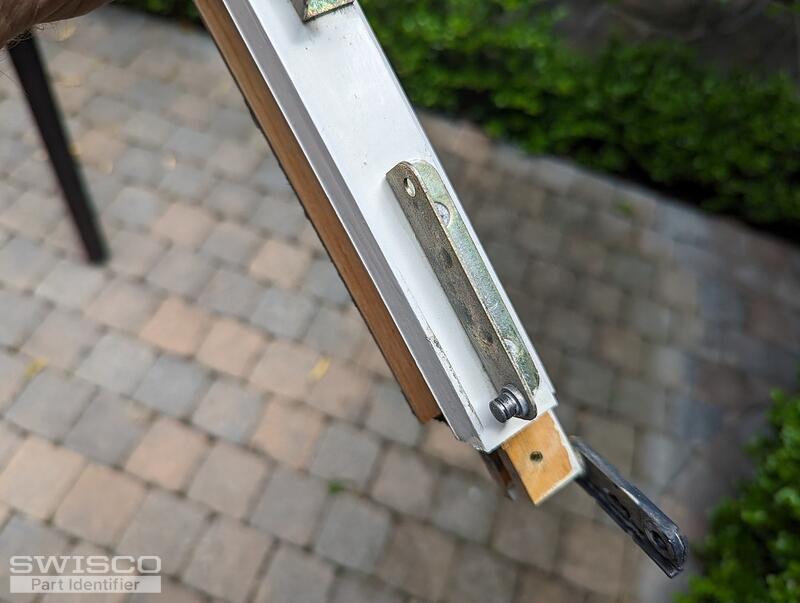

Looking to identify part numbers. I believe the manufacturer is TRUTH. any help would be appreciated. There are 7 parts.. uploading them in two posts since the site only accepts 5 at a time.

Tx

4 user uploaded images

5 Replies

Home Owner from Laguna hills

May 26, 2023 5:13 pm

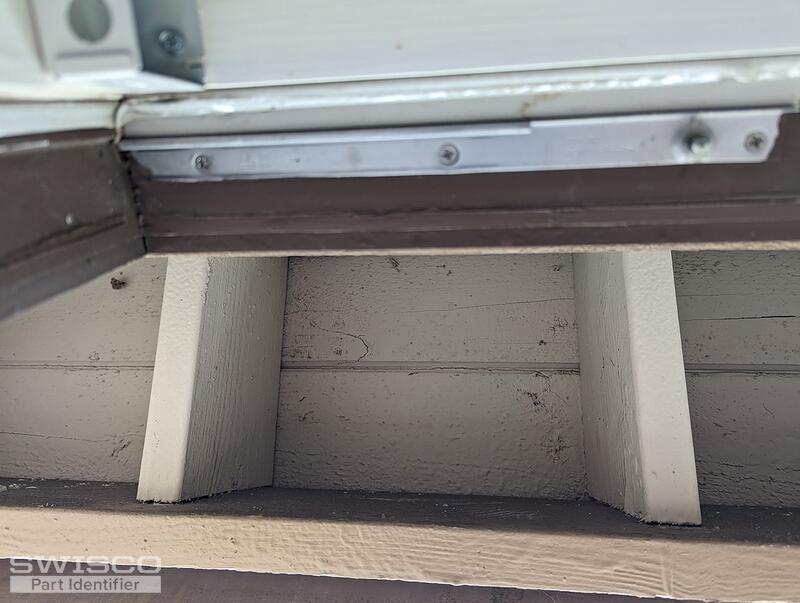

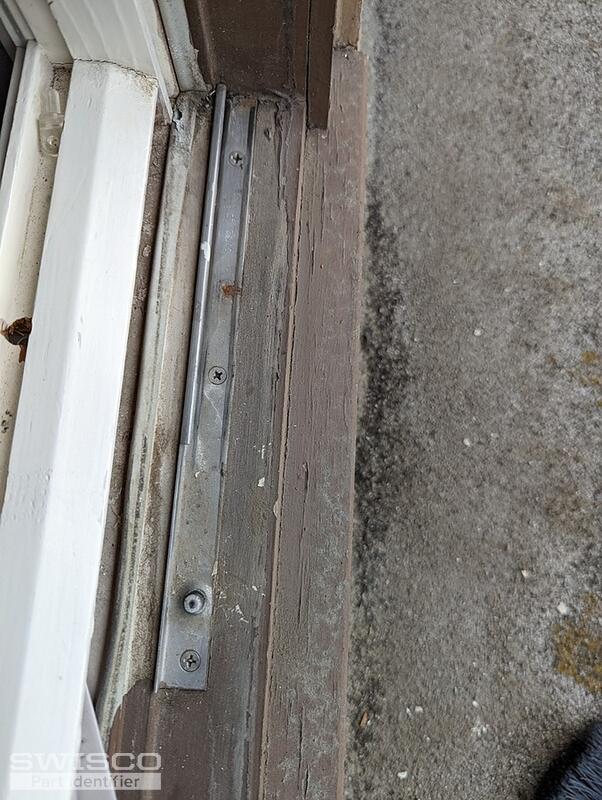

2nd part of post to get the rest of the pictures uploaded

3 user uploaded images

Emily from SWISCO

May 30, 2023 1:08 pm

Hello there!

Thank you for reaching out to us. I recommend you start by taking a look at the 39-516 and 39-517 brackets along with the 36-048 hinge set. Carefully review the specifications for these parts and see how they compare with yours.

Our 38-089 keeper looks similar to what you have here but I'd like to see a photo of the lock it engages with to confirm.

Can you also show us a photo of the operator that goes with the track? Once we ID the operator, we can then determine the compatible tracks.

Home Owner from Laguna hills

Jun 2, 2023 12:29 pm

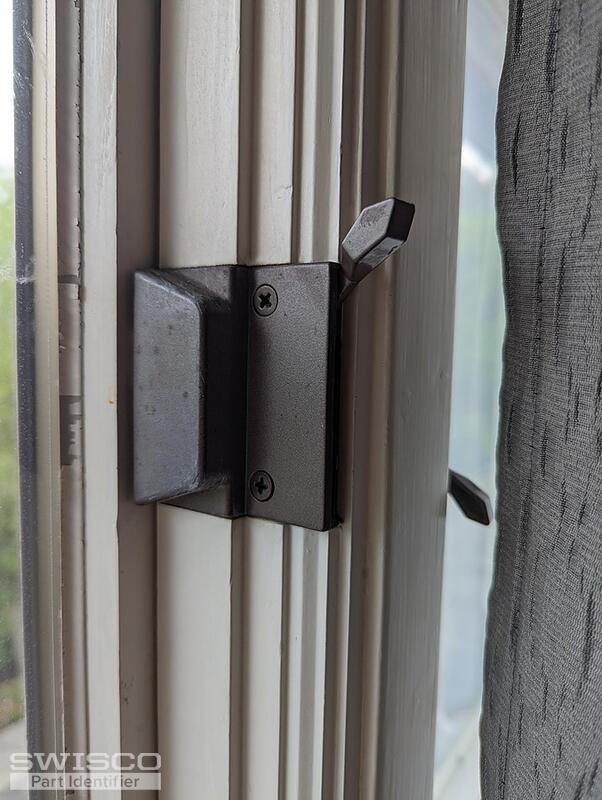

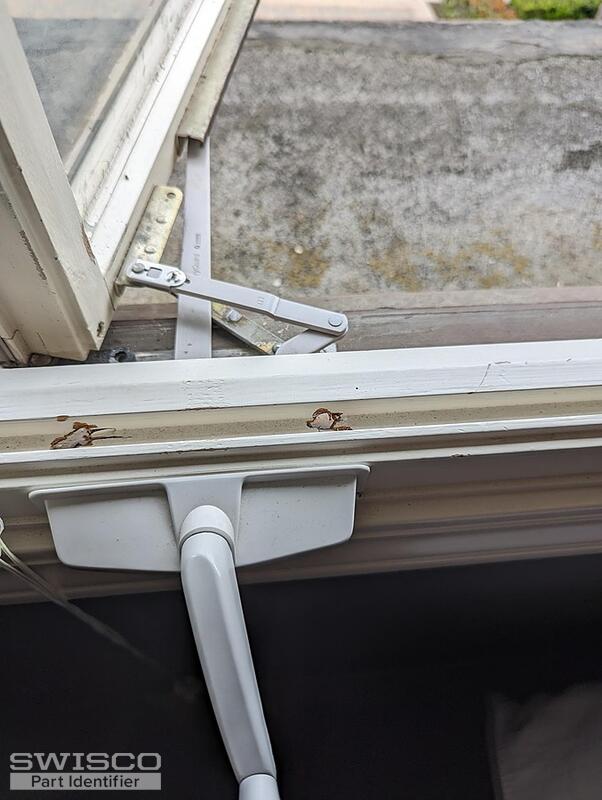

Hi Emily, Thank you for looking into this. The hinge is very close, but dimensions just slightly off. You were right to look at them carefully. The vertical is going to be too long. which might still be okay. Hard to know if it will impact the swing. I'm attaching pic of lock and operator here. Thanks again for any insight you can provide. I have ordered from Swisco in the past, so have had good experiences in the past.

2 user uploaded images

Emily from SWISCO

Jun 2, 2023 3:46 pm

Thanks for getting back to me! I'm so glad we were able to be of help in the past. It looks like you have the 38-075 lock which is indeed compatible with the 39-089 keeper. The operator looks like the 39-031 & 39-032 or 39-155 & 39-156 which are compatible with the 39-505 track. Take a look at the specifications and see what you think!
