Window Channel

Home Owner from Salem, Oregon
May 6, 2023 11:18 am

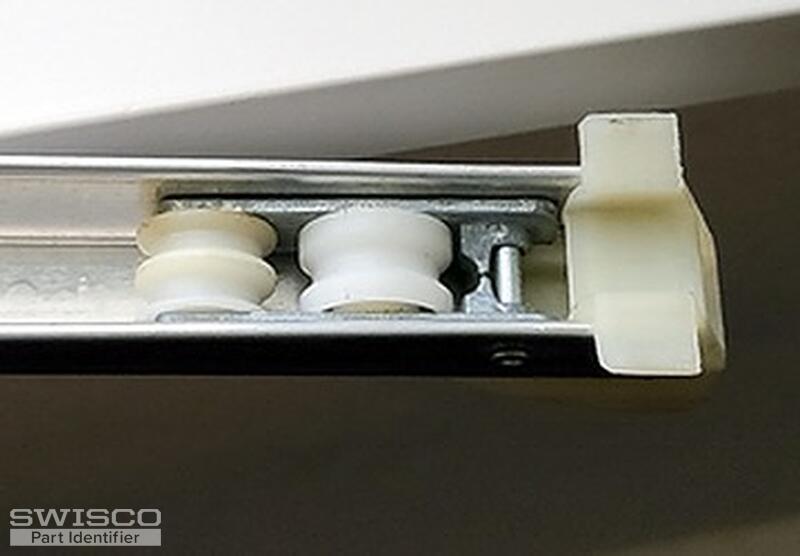

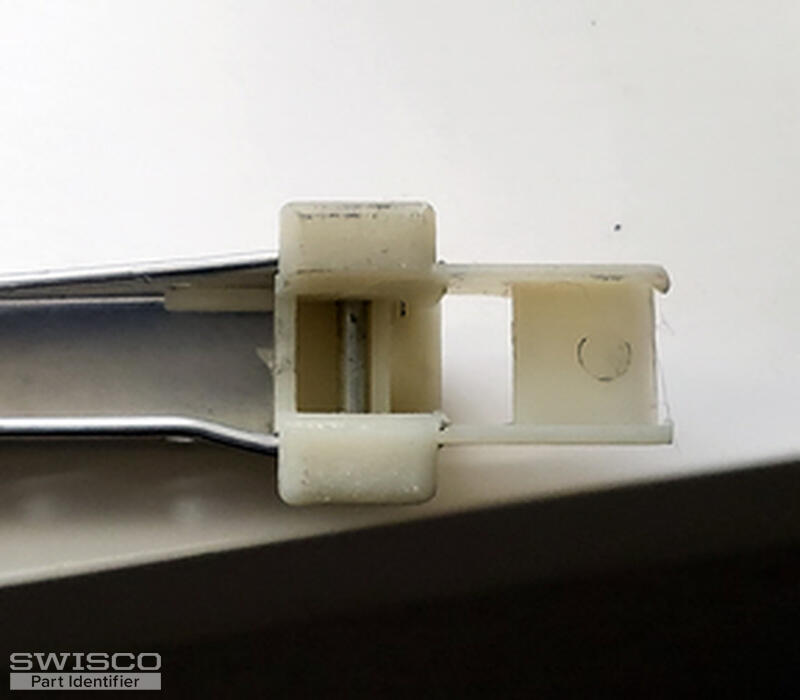

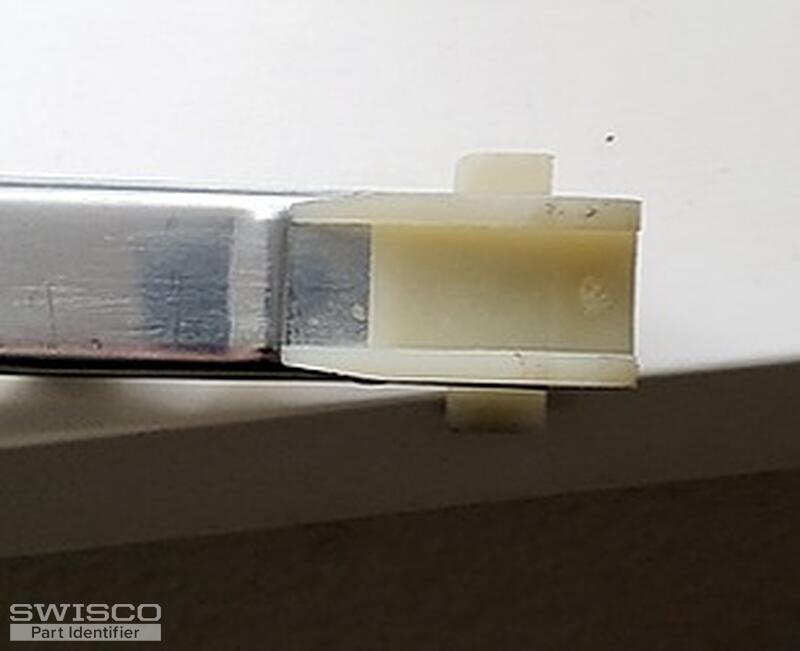

Old 1994 EPI window. 32" channel 5/8". Got four of these laying around????
channel1 channel2 channel3 channel4
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
May 8, 2023 1:22 pm
SWISCO
EXPERT

Hello,

With this combination of attachments, you could have either the S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

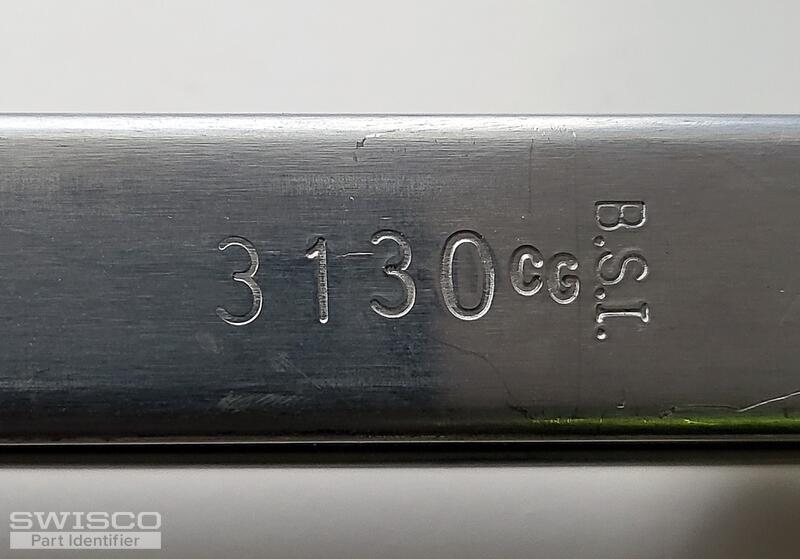

You'll also need 3130 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
