Window Channel Balance - 2240 JC (shown on picture)
Hello, thank you for posting,

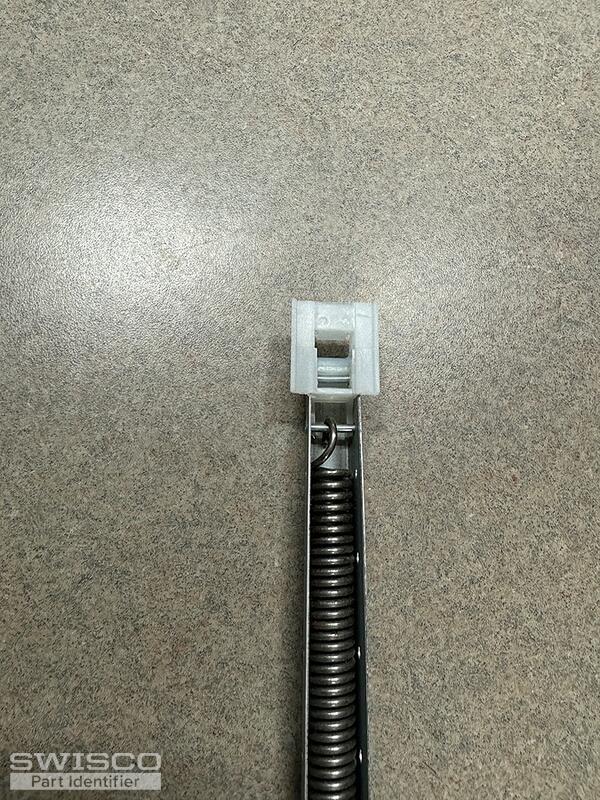

Your balance appears to use the 19-034 balance top. This configuration will require a custom order to assemble for you as we do not have a stock balance that uses this attachment. To move forward, we will need to know the depth of the bottom shoe. Please review the diagram below for reference.
With a 2240 stamp, the length of the metal channel excluding the nylon attachments should measure 23" long, please confirm.
How many balances do you need and I can send over an order link with pricing for your review.

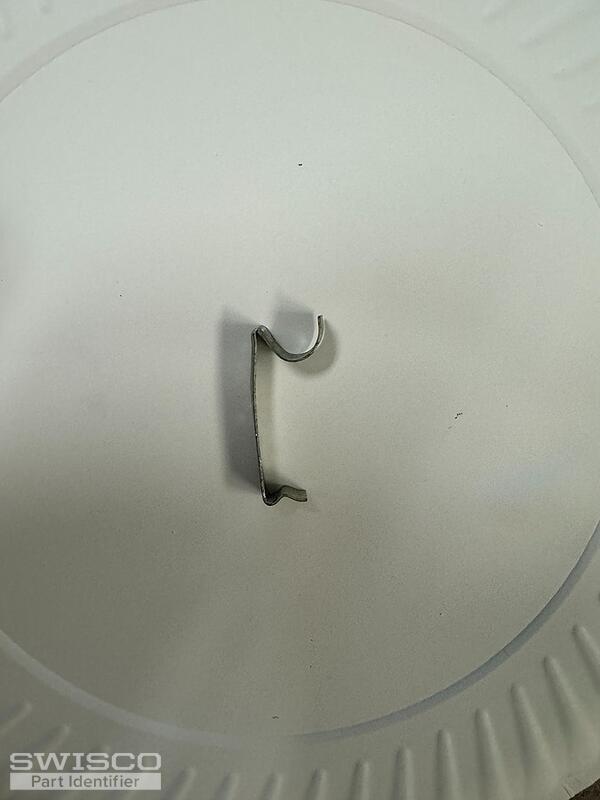

Also review the 16-002 take out clip.
> The metal channel excluding the nylon attachments measures 23" long - Confirmed
> The interior depth for the channel (I believe this what you are asking for) is 5/8"
> 15-004 Winged Channel Balance Shoe, 1-3/32" Depth measures the same as the picture submitted
Qty needed is 14
> The take out clip 16-002 / Qty needed is 18
Thank you,
I have sent over a separate email with an order link for (14) balances with pricing. The 23" balance will have the 19-034 top and 15-004 bottom attached with a 2240 stamp option that can support a 19 to 23 lb window sash.
Please note custom orders are nonrefundable.
For the take out clip, these will need to be added to your cart additionally from the product page before checking out. Let me know if you have any additional questions!
