Window Channel Balancers

Quick Learner from Aurora, Colorado
Hello,

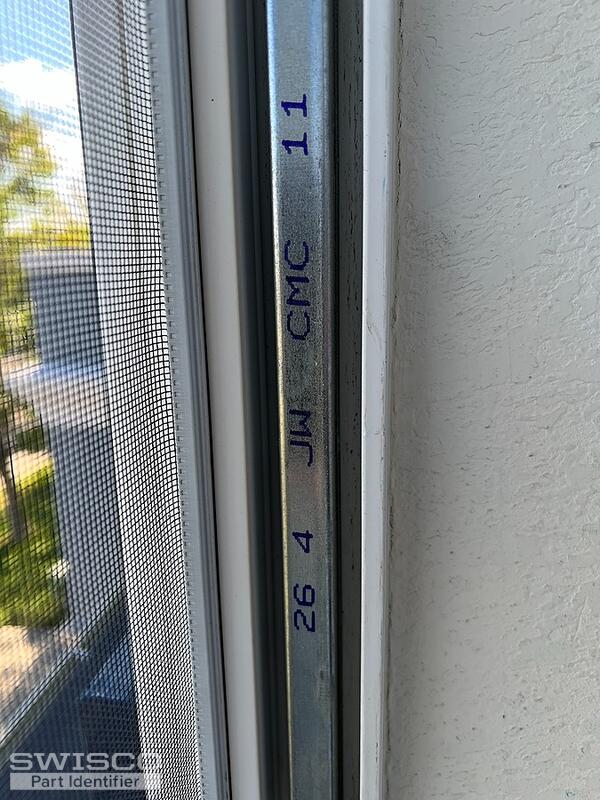

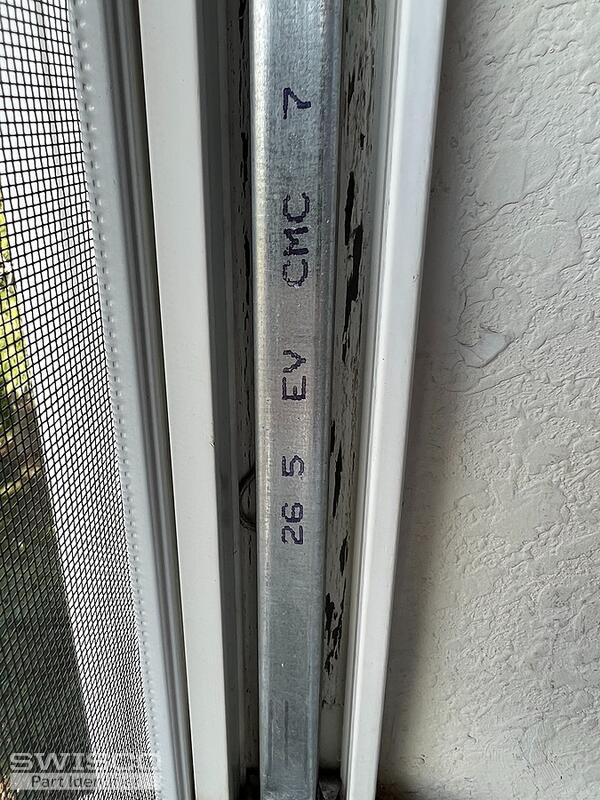

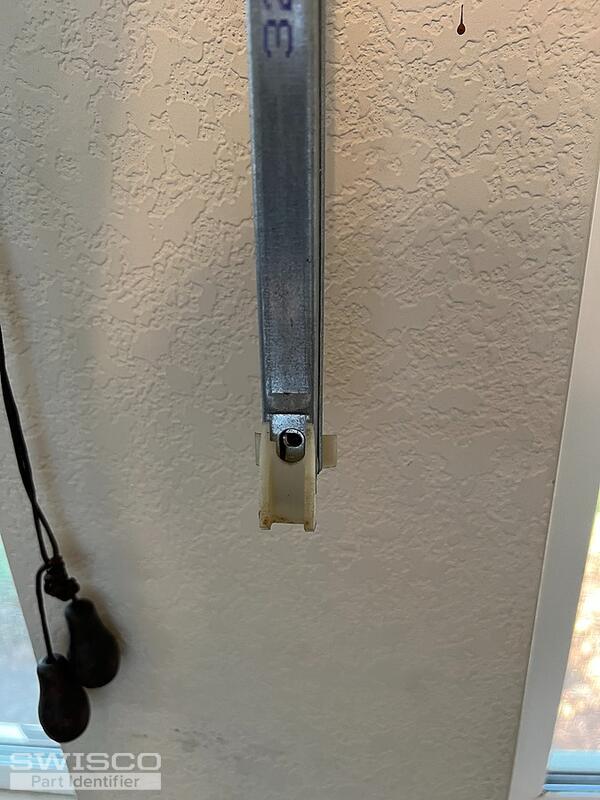

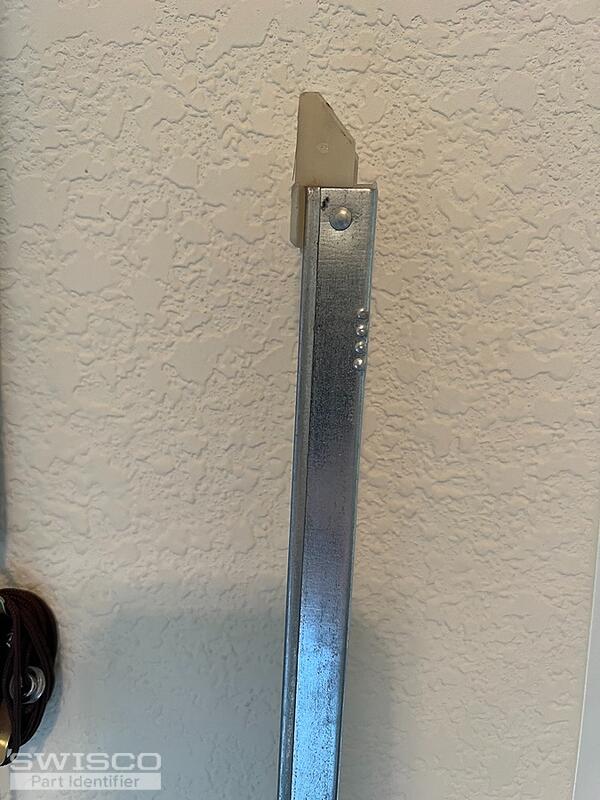

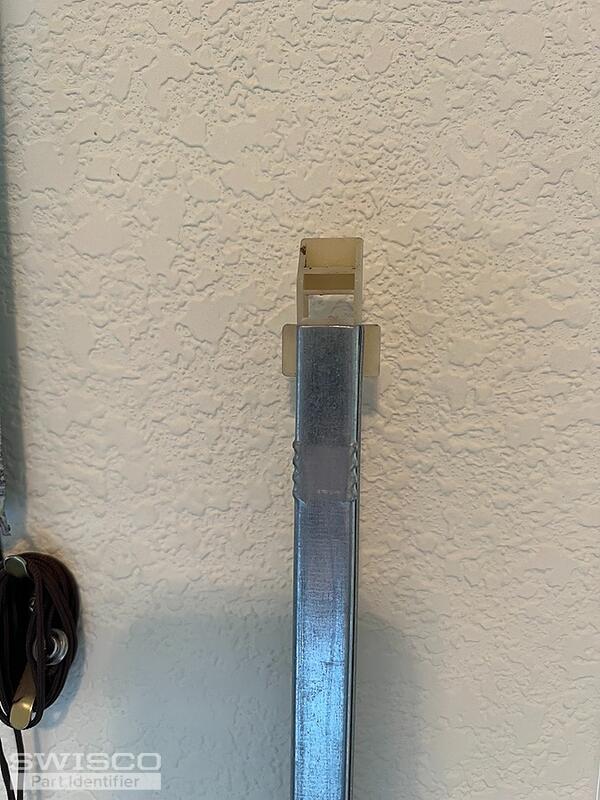

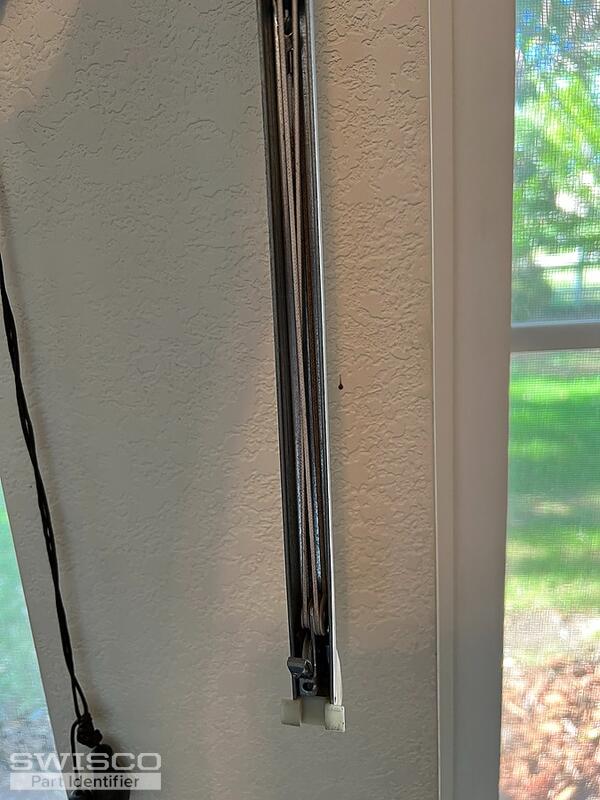

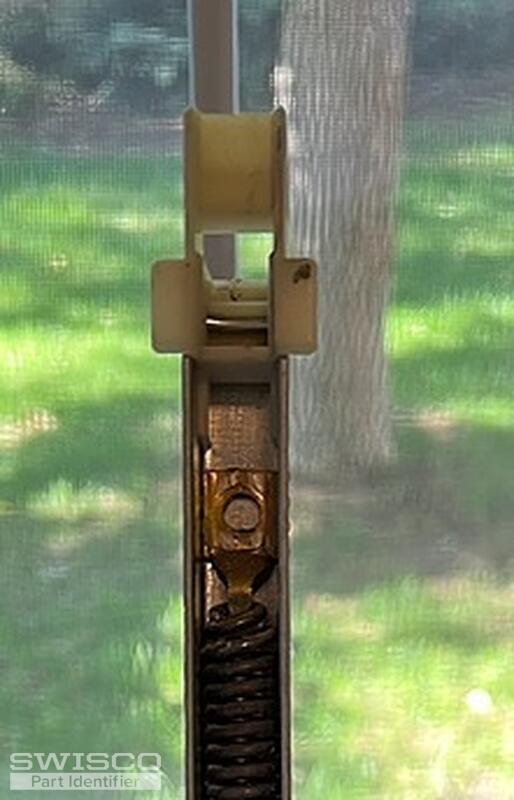

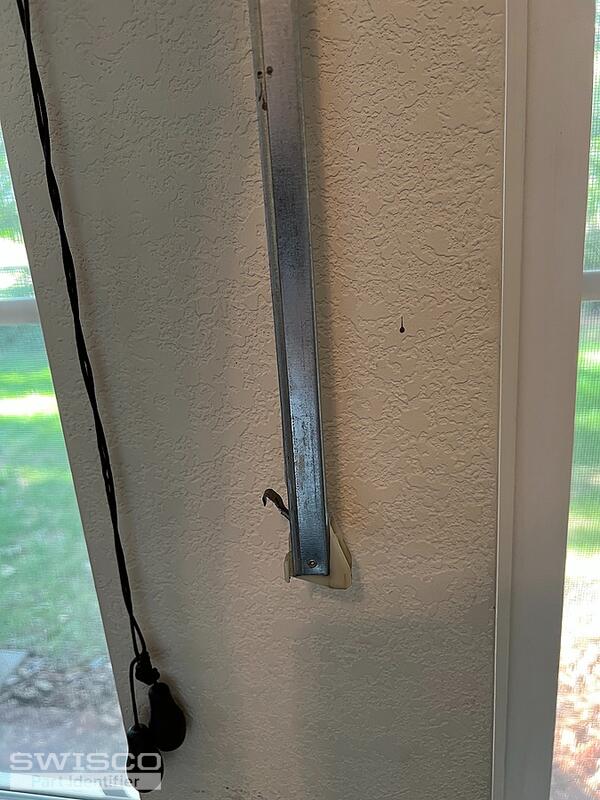

I have 3 windows were 1 of the 2 channel balancers broke. I am looking to replace them but having a hard time matching them to find the right replacements. Two are on the same sized window but one is on a thinner but taller window. All three are identical top and bottom with the same 'hook' on the backside that is in the 'string' mechanism. Attached are the pictures of the broken channel balance I removed (though some pics are of the markings on the working channel balance). Please let me know if you are able to help me replace these. Any help you can provide is greatly appreciated. I have more pictures if needed, was limited to 5 I could upload. Thank you!!
5 user uploaded images
5 Replies
Quick Learner from Aurora, Colorado

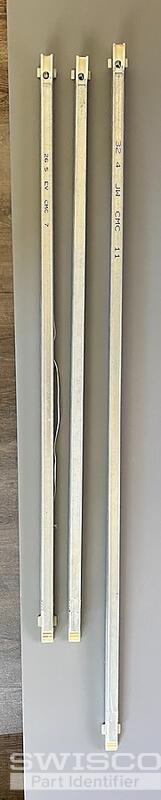

Adding additional photos
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2650 spring strength options for your 27" balances and 3240 for your 33" balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Aurora, Colorado
Thank you for the info! I measured and they are 1 3/32so looks like I will need the S385. You mention needing a 2650 spring, is this something separate I need to purchase or when I click the 33" Series 385 Channel Balance is that included as part of it? On the channel balance replacement is this only 1 or are they sold in a pair?

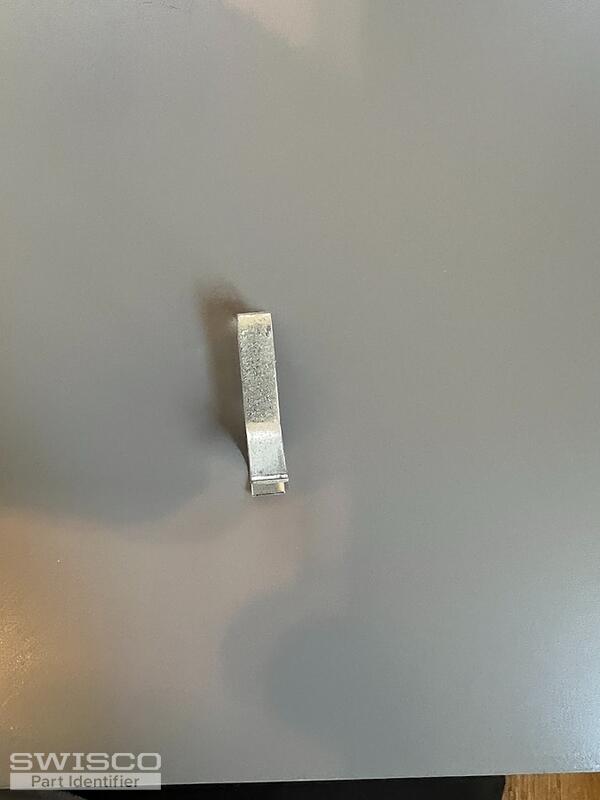

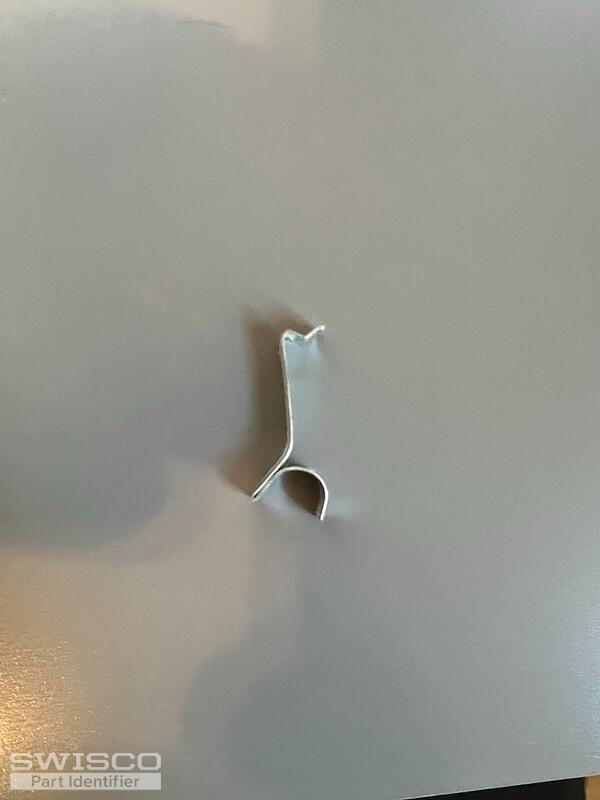

Additionally I noticed multiple guide clips in the window frame, you 'pop' these out to stop the channel balance, have broken. Do you sell these as well? I have attached some picks of one the came out. Thank you!!
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

You'll need to choose 2650 under the list of options on the S385-27 production page and the 3240 option for the S385-33 balances. Also. these balances are sold individually, not as a pair.

As for your take-out clip, see the 16-002
