Window Channel Balances

Home Owner from Fort Myers, FL

Mar 9, 2026 4:34 pm

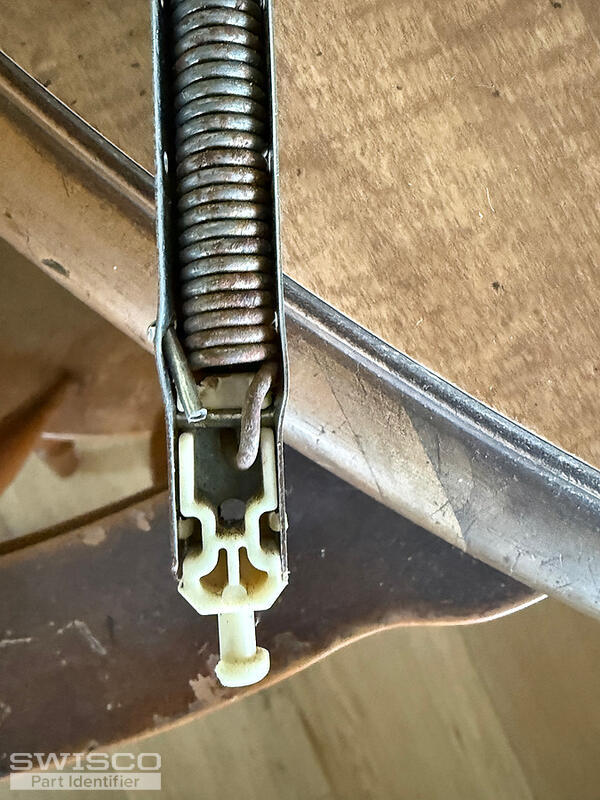

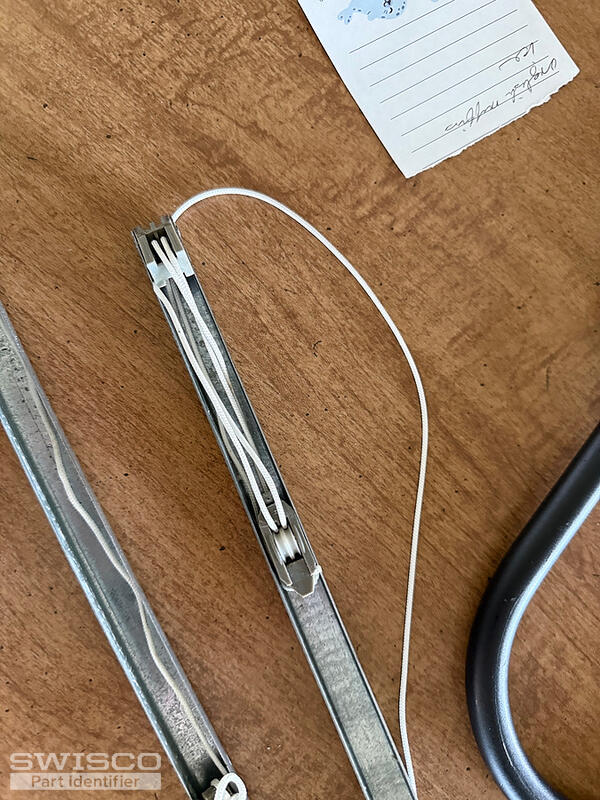

Each spring assembly is 9/16" wide and 26" long. There are two so I believe the channel is 1-1/8" total. These are on hurricane windows in Florida. I guess that's why all the plastic parts are failing.

5 user uploaded images

4 Replies

Tom from SWISCO

Mar 16, 2026 9:28 am

I'm very familiar with this balance. This is a unique configuration but we should still be able to assist.

Before we go any further, can you please show me a closer photo of the metal tab at the end of the cord? This is what secures the balance at the top of the frame. I can't quite make it out in these photos but it is an essential component.

Can you also tell me how many you needed?

Home Owner from Fort Myers, FL

Mar 16, 2026 2:26 pm

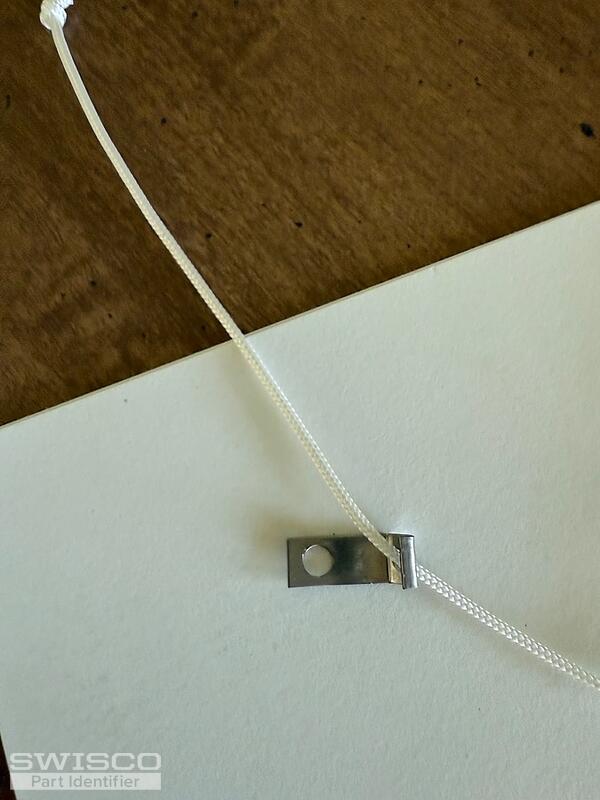

Is that the thing you needed a picture of? Thanks. We'll probably order 3 pair.

1 user uploaded image

Tom from SWISCO

Mar 16, 2026 3:15 pm

That's exactly it, thank you! Your balance appears to be a variation of our Series 795 balance, but instead of a "T" lock shoe, you have the 15-224 inverted link at the bottom.

These are actually very easy to swap out, they just pop on and off. I recommend that you buy the Series 795 and 15-224 separately, then just swap them out once you get them. Should work like a charm.
