Window Coil Balance Replacement Parts

Question

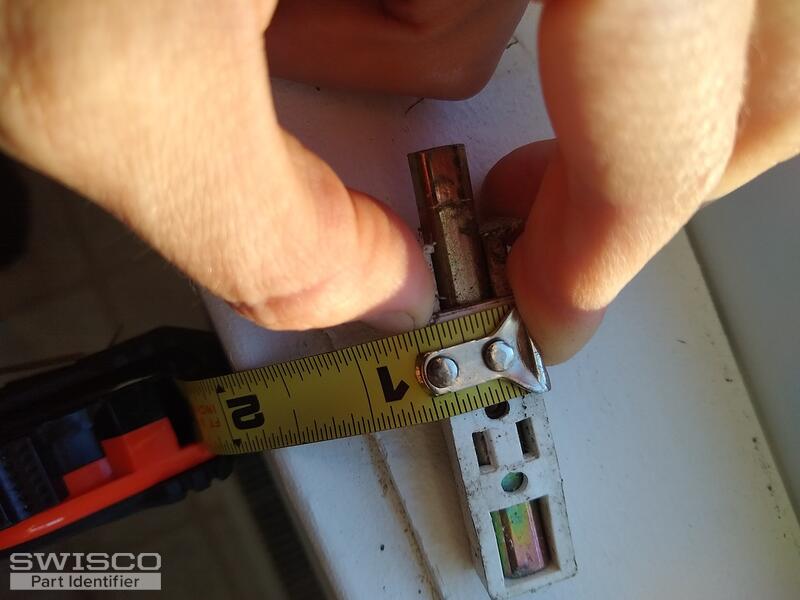

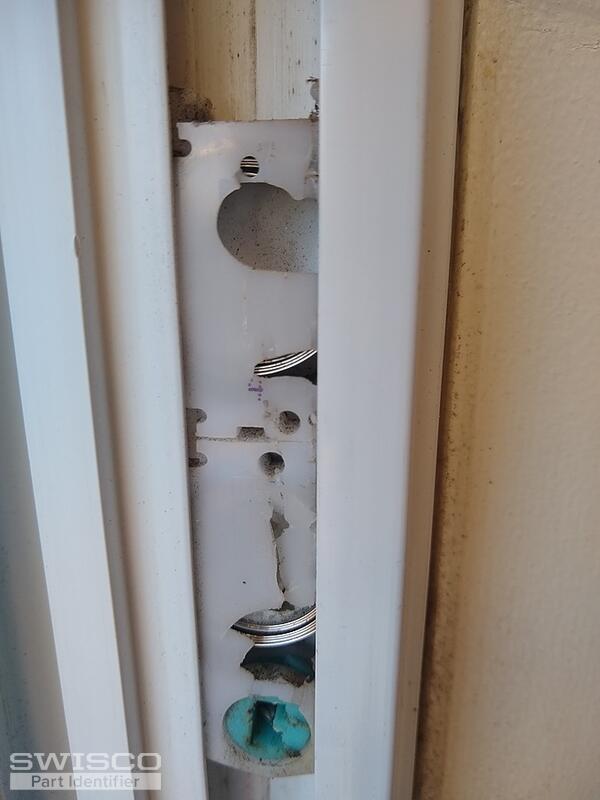

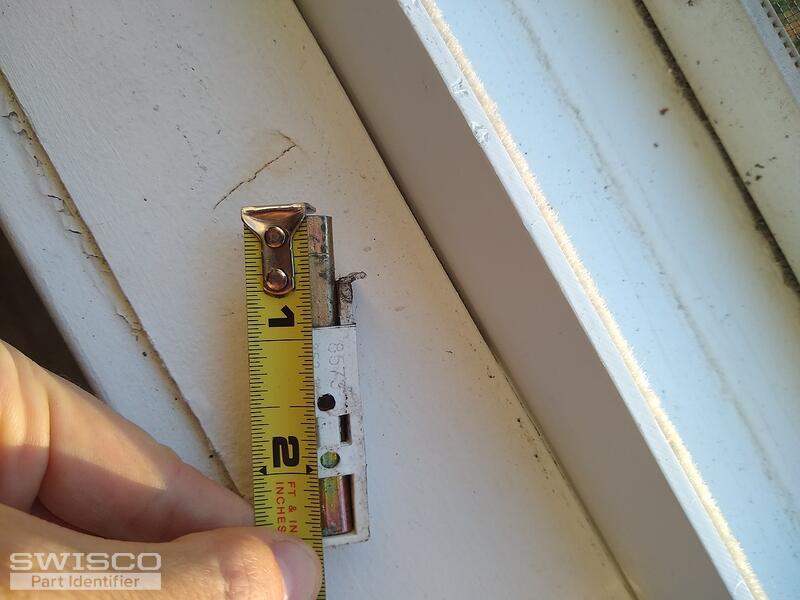

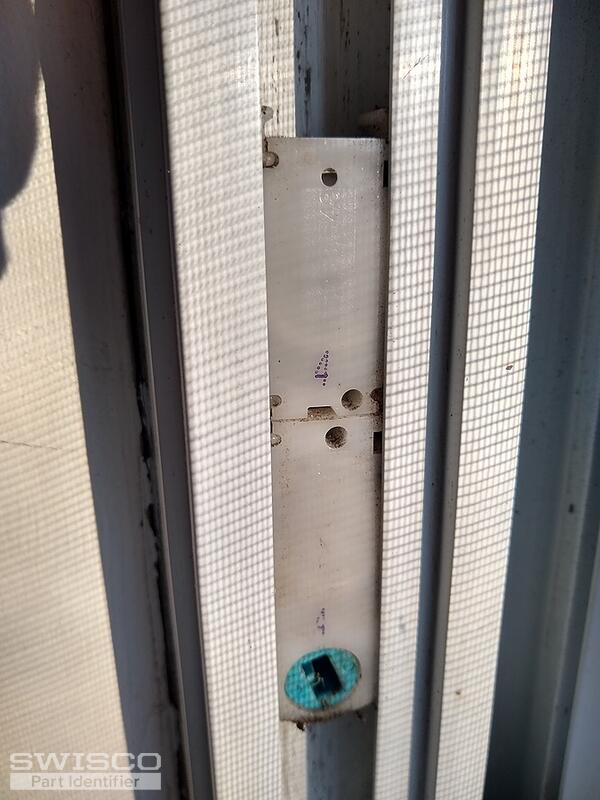

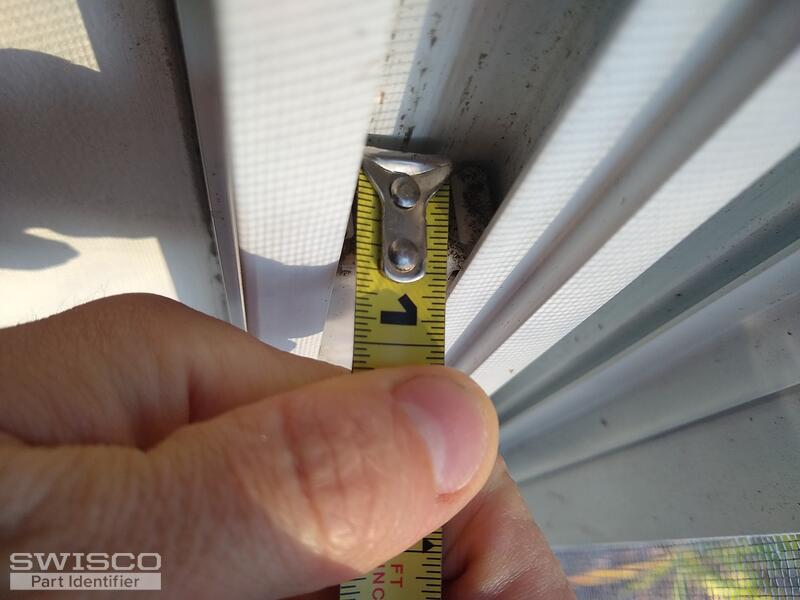

Thank you for your help. This is the lower sash of a double-hung window. The sash weighs 14.6 lbs. I need to replace the pivot bars, the coil balances, the pivot shoes, and the holder for the coil balance. The number 4 is on the plastic pieces for both the coil balance holder and the pivot shoe (there are four printed number 4s total, one on each), so my guess is that I need two sets of four lb. coils. Can you help me identify which parts would be best?

Casey · Accepted Answer

Hello,

We can't be sure with the hardware still installed but your photos resemble the 15-087 housing pivot, which uses the Series 180 coil springs and 15-086 tandem housing. Take a look and compare the specifications below and the accessories related on our product pages to yours. We'll also include a diagram showing the configuration of this assembly.

Detail of 15-087

Series 180 coil balance diagram

We sell a pivot bar case similar to yours, the 26-382S, but ours might be a bit longer. The 26-382S remains our closest possible option but we can't guarantee it will work if the dimensions don't match.

Dimensions for 26-382S

We also sell the 26-040 pivot bar separately. Look over these parts and see what you think. Thanks for posting!

Alternate image for 26-040
