40055 T LH 4 Window Crank

A home owner from Medina, Ohio says:
November 28, 2017

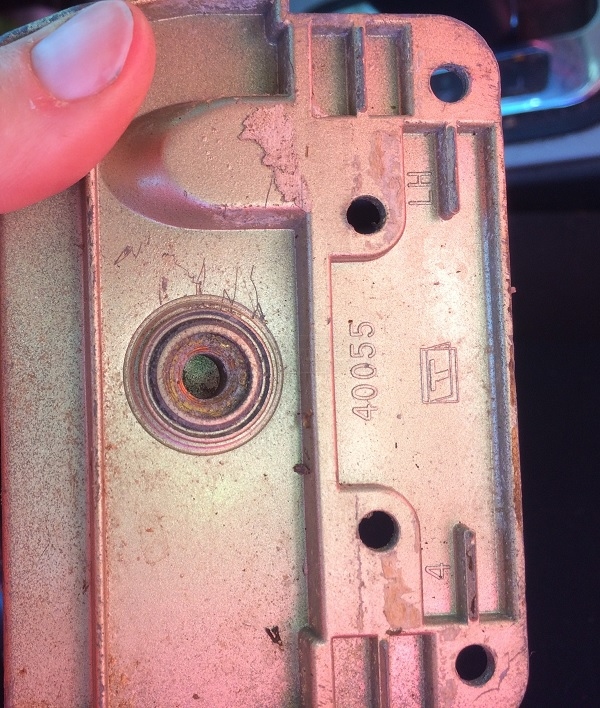

40055 T LH 4
operator
Profile picture of Tom
Tom from SWISCO responded:
November 30, 2017
I'm confident we can replace this, but I cannot determine what you have from this picture. Can you show me a photo of the complete operator in one shot, including the arm? Can you also tell me the length of the arm? Thanks!
A home owner from Medina, Ohio says:
December 7, 2017
the length of arm is 8 1/2 inches. Please let me know if there is anything else you need from me. Thank you so much for your help.

Stacy

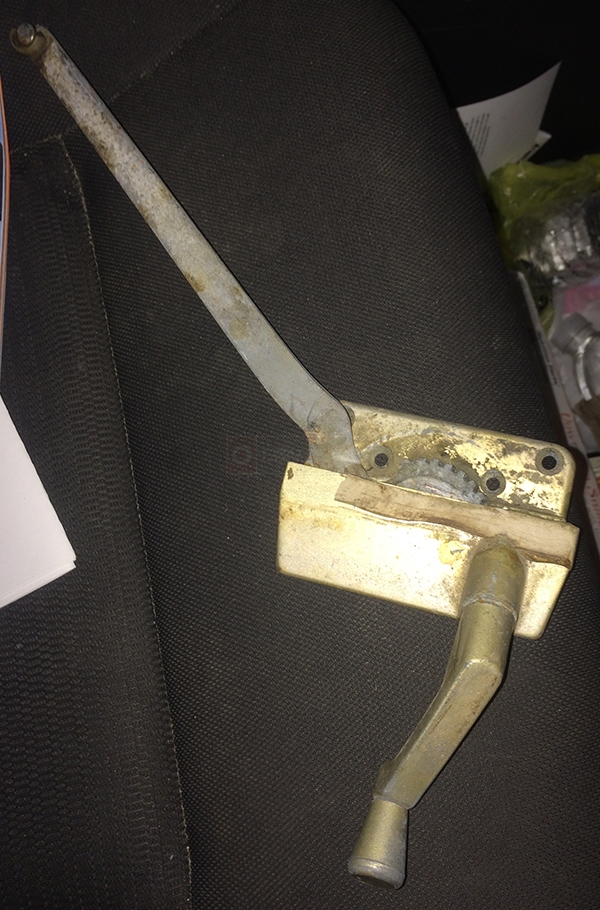

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
December 11, 2017
The closest we've been able to find is our 39-027E, though this has a 9-1/2" arm. I would check the way we measure our arm to see if it can work for you; we measure from the center of the wheel bearing to the center of the gear.
Dimensions for 39-027e
Dimensions for 39-027e
I've also made a list of related hardware to consider on the right side of this page.
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
