Not sure of the window nor opening mechanism manufacturer but I need a replacement for the attached pictures.

Thank you,
Aaron

2 user uploaded images

10 Replies

Casey from SWISCO

Aug 4, 2023 12:08 pm

Hello,

Your operator assembly reminds me of the 39-387. We also offer the opposite-handed version, the 39-388. Review the diagram below and see if the specifications match up to yours. For a compatible crank handle, see the 39-114L. Thanks for posting!

Dimensions for 39-387

Quick Learner from Colorado

Aug 6, 2023 5:32 pm

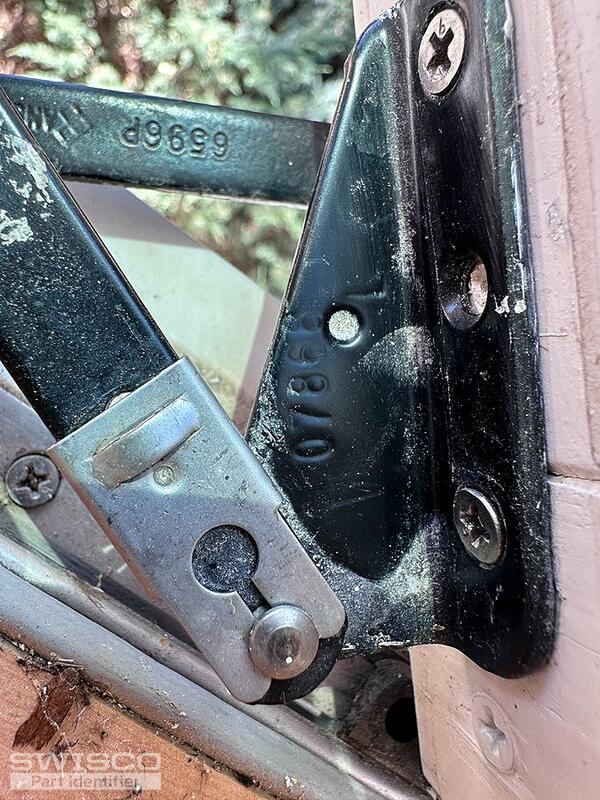

Thank you for your help. I don't believe that is the correct item. The one that I need has two "arms" and the one you suggested only has one. I have attached additional pictures that might be helpful and it looks like the manufacture of the assembly is Wright. The pictures also have some numbers on the arms.

Thank you,
Aaron

2 user uploaded images

Quick Learner from Colorado

Aug 6, 2023 5:43 pm

Okay, I get it now - it's two different parts. I believe you are correct in the part but I also need the lower arm, part number 6596p. Would that be correct?

Thank you,
Aaron

Casey from SWISCO

Aug 7, 2023 9:12 am

The bottom part is actually the hinge that anchors the window sash to the frame. We do offer the 36-048 hinges set with a 10" base, which is a rather versatile replacement option. Just keep in mind that you would need to replace the top and bottom hinges at the same time.

Detail of 36-048

Additional dimensions for 36-048

Quick Learner from Colorado

Aug 7, 2023 11:37 am

So it sounds like I need three parts then; 39-387, 36-048, and a top hinge? Do you have the part number for the top hinge?

Thank you,
Aaron

Casey from SWISCO

Aug 7, 2023 1:36 pm

The 36-048 comes with two hinges, one for the top and one for the bottom of the sash. Let us know if you have any other questions.

Quick Learner from Colorado

Aug 9, 2023 10:53 am

Great, thanks for your help. I'm still a bit confused on all the parts I need to order so if you could let me know them, I'll go ahead and place my order.

Casey from SWISCO

Aug 9, 2023 11:23 am

So far we've discussed the 39-387 and 39-388 operators, which use the 39-114L handle, as well as the 36-048 hinge set. If there are other parts that you think need to be replaced for your window to function properly, just let us know and we can go from there. Keep in mind that you only need to replace the parts that are damaged or broken, which we can't determine without being there to troubleshoot the window.

Quick Learner from Colorado

Aug 15, 2023 12:43 pm

I'll order everything but the 39-388, thank you for your help. It looks like there is a helpful video above as well.
