Window Crank Parts

Quick Learner from USA

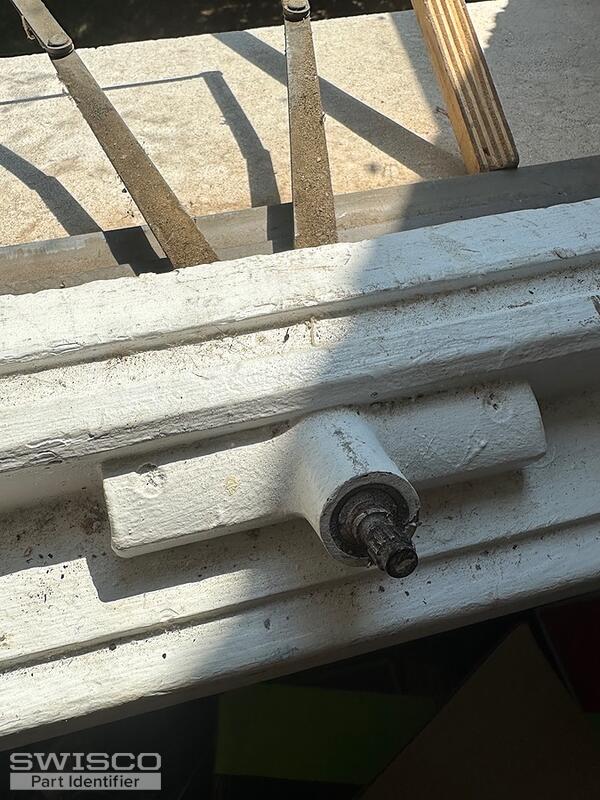

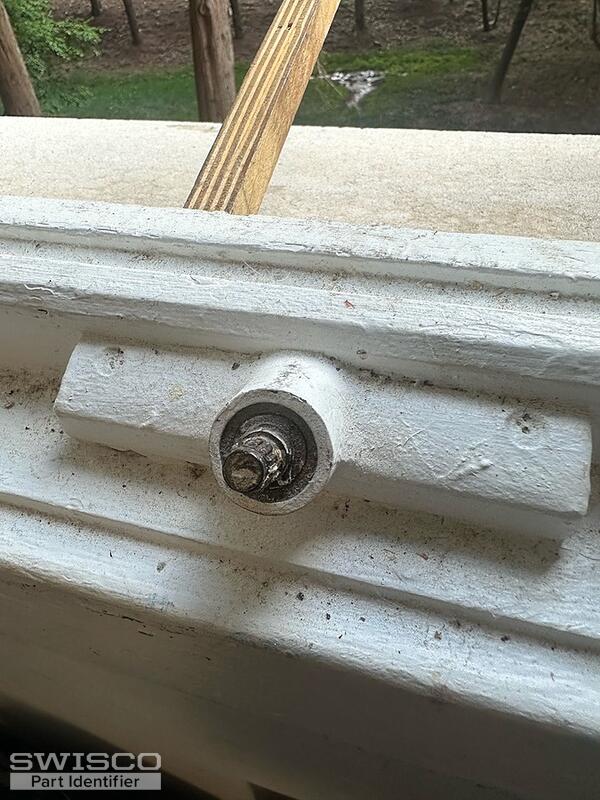

Hello, I have a client, who I believe has a Swisco window. The crank is gone but the shaft remains. The internal extender is also gone. I will attach photos to see if this may be something your company can help with. Thank you!
5 user uploaded images
15 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Unfortunately with the original arms missing, we cannot confirm the exact style that was used. That being said, we do believe you have an older style Andersen window. Take a look at the three awning window operators listed. The 39-389 operator for a wide window and the 39-390 for a narrower window. Not sure which would fit your window. These operators use a rod which the arms ride on to operate the window. Also take a look at the 39-206 which attaches to the window sash with use of a bracket. Take a look at all the listed operators along with the related videos on the website.

Let us know what you think!

Quick Learner from USA
Thank you so much! It's a great start!! I'll speak with the client.
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

No problem! Let us know if you have any additional questions.

Quick Learner from USA

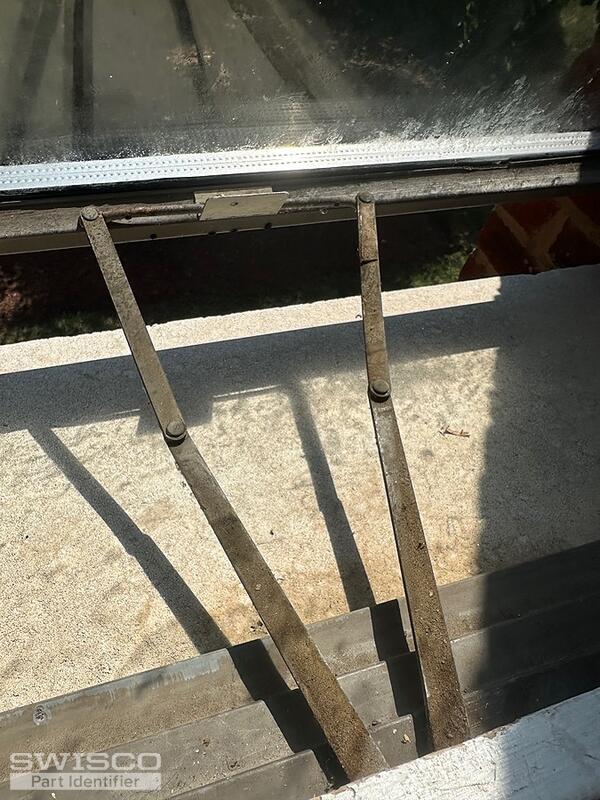

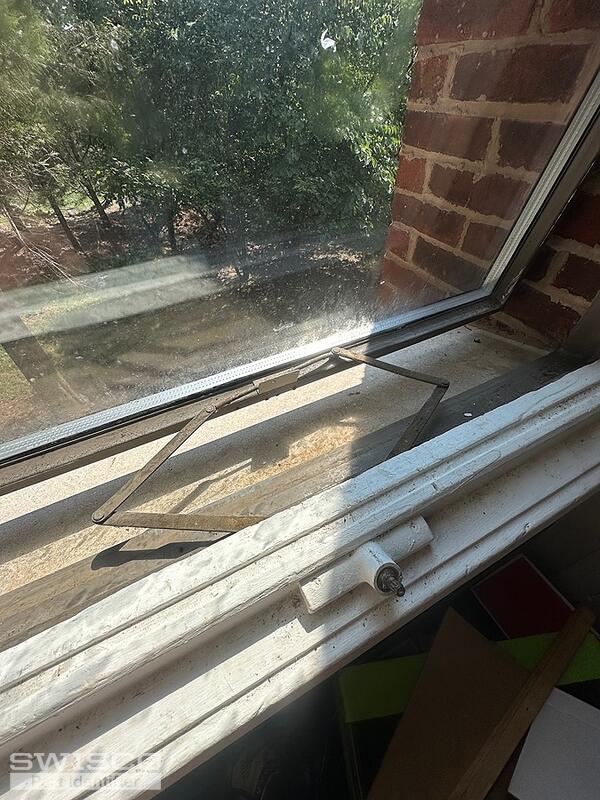

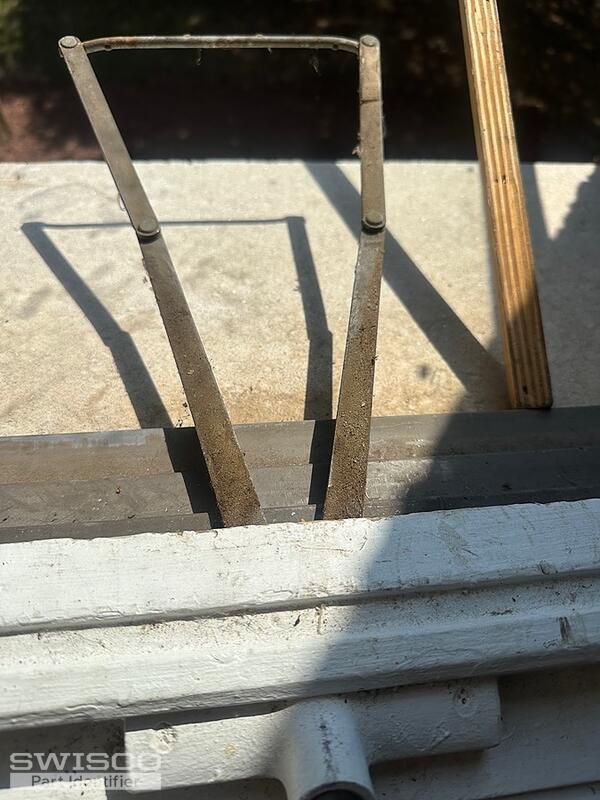

So I went back and climbed over ledge to have a closer look et voila! I saw the arms. I took a wrench and cranked them out. I also I identified where they were once attached!! Now, I think I can go back and weld those connections bsck in place and it will work. I just need the hand crank. What do you think?
5 user uploaded images
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello,

It looks like you have the 39-206 operator. If you feel that the operator you now have is working correctly, maybe give it a shot of spray lubricant, then you might just need to use the 39-286 handle. Let us know if you have any additional questions.

Quick Learner from USA

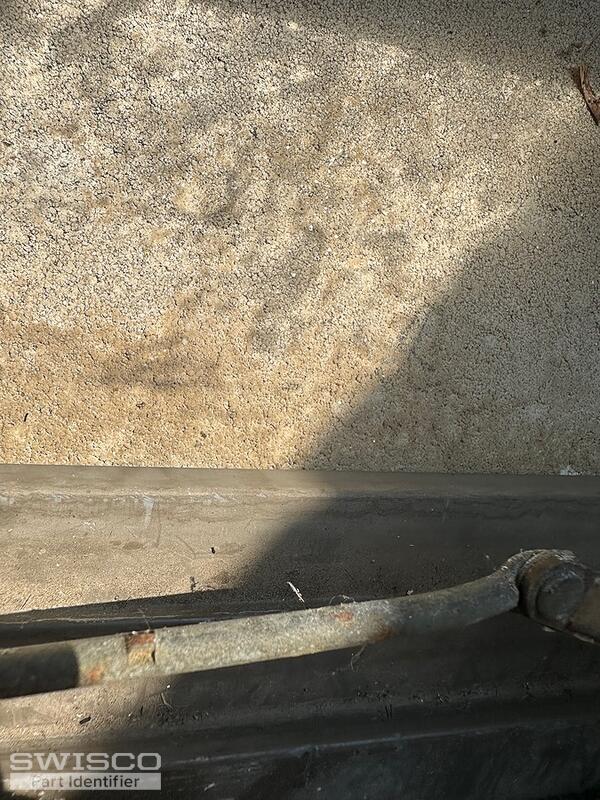

Thanks..yea, the arm is working just fine. I need the crank...herein lies the problem. To what do I hook the arm to? Looks like there were some soldering points that detached the arm from the crank arm. Any suggestions? I can get creative and just attach something, but I wanted to see if there is anything you all have that I can just clip on to attach the arms appropriately.

Thanks
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello,

We currently do not sell these brackets separately from the 39-206 operator, but we are researching to see if we can bring them in for you. I will be in contact as soon as more information is available. Thank you for your patience!

Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello,

We are going to order the bracket in to be able to provide it separately from the operator. Unfortunately there is a 5-6 week lead time. We will be in contact when the bracket is in stock and ready for your review. Let us know if you have any questions in the meantime!

Quick Learner from USA
Sounds great! Thanks so much!! Look forward to hearing when it arrives
Quick Learner from USA
Hello! Checking on status of sash bracket. I can make payment on it to ensure it gets mailed to me as soon as possible. Thank you!
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello,

We are still waiting for the brackets to come in. The brackets are currently in production and we are waiting for them to ship out to us. I will be in contact as soon as they are online for your review.

There was a 5-6 week lead time from mid August. We appreciate your patience!

Lauren
Lauren from SWISCO
SWISCO
Expert

Hello!

Thank you for your patience! Please see the 36-086 Awning bracket kit. Review on the product page and let us know if you have any questions!

Dimensions for 36-086
Dimensions for 36-086

Quick Learner from USA
Thank you very much! I just placed the order. Much appreciated!
Lauren
Lauren from SWISCO
SWISCO
Expert

No problem! Please let us know if you have any future hardware questions!
