Window Crank for Awning Window
Home Owner from Glen Ellyn, IL
Nov 8, 2025 9:25 pm

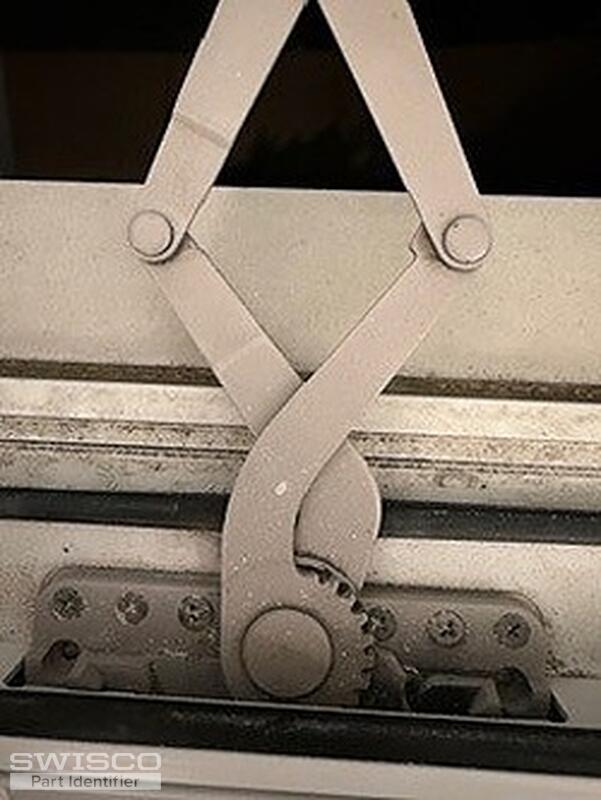

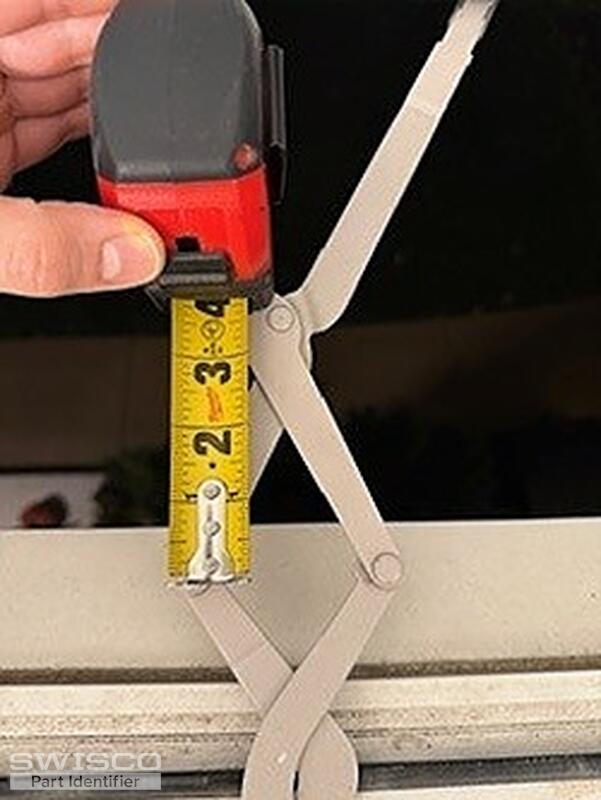

Hello, I'm looking for a replacement crank for a 30"X30" awning style window.
5 user uploaded images
2 Replies
Casey from SWISCO
Nov 13, 2025 10:54 am
Hello,
Your operator resembles the 39-239C awning operator. This assembly uses the 39-375 handle with cover and the 39-536 pivot slides. Compare the specifications to confirm they match your original hardware. Thanks for posting!
Alternate view and dimensions for 39-239C
DImensions for 39-239C
Alternate image for 39-536
