Window Crank for Bow (casement) Window.

A home owner from Saegertown PA says:

October 10, 2018

This was made by Seaway Corp. Erie PA. C. 2008. Label on window is :
100 x 55 0510 20932
Bow window white 626
ARGON/LOW E woodgrain 10108

Need a new crank mechanism for L. side (inside looking out)

Tom from SWISCO responded:

October 12, 2018

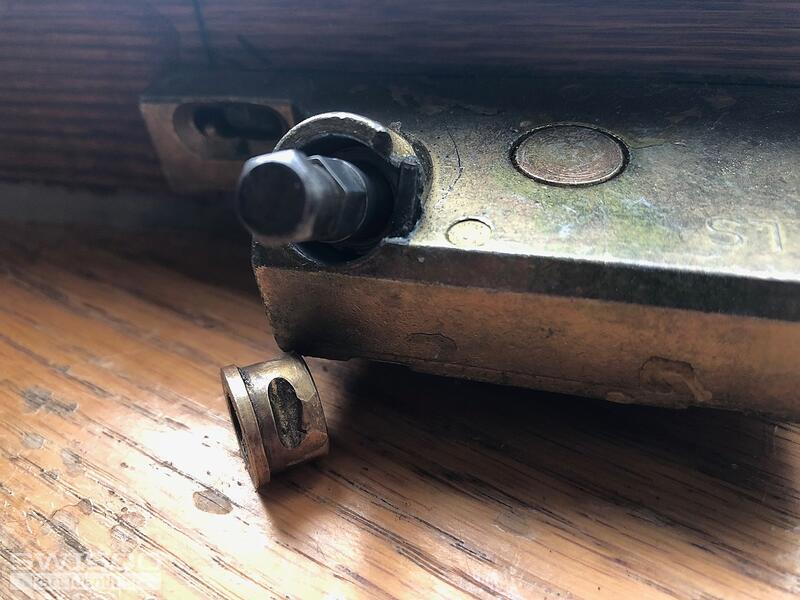

Can you show us the whole operator? We can see the gear box in these photos, but we also need to see any arms that stick out the back.

A home owner from Saegertown PA says:

November 8, 2018

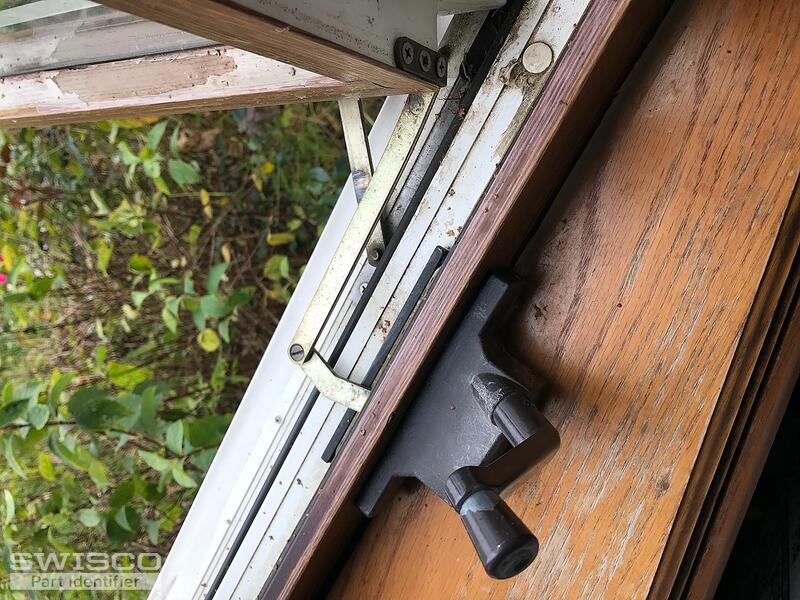

It has a single arm with hinge.

Tom from SWISCO responded:

November 9, 2018

Thank you! We don't have an exact match for this operator, but our 39-066 and 39-067 are similar. Look them over and see what you think.

A home owner from Saegertown PA says:

November 9, 2018

39-067 appears to be close! I didn't get a look at how it attaches to the window corner underneath (in that last picture). Are any other parts recommended or is it safe to say this is the same assembly system?

Tom from SWISCO responded:

November 15, 2018

Sure, these operators connect to a stud bracket like our 39-508. I figured you had something similar under your window. Look it over and see what you think.

White Window Dyad Crank, 8-3/4"

39-067

$42.54

Stud Bracket, Neutral

39-508

$3.47
