Window Hardware

A quick learner says:
Swisco,

I have two kitchen windows in need of new hardware. There is no brand name on the windows. The swivel balances are 20 inches long with blue tips. The tube diameter looks to be 5/8". The pivot shoes are one half inch deep and have a number 3 stamped in the plastic face. The channel is approximately 1.5". Looks like I may have to cut the channel to replace the shoes. The window pivot bars also need replacing. I'm not sure about their dimensions.

Eight balances, eight pivot shoes, eight pivot bars. I have attached a picture document with images. Do you have this hardware?

Thanks,
Stephen

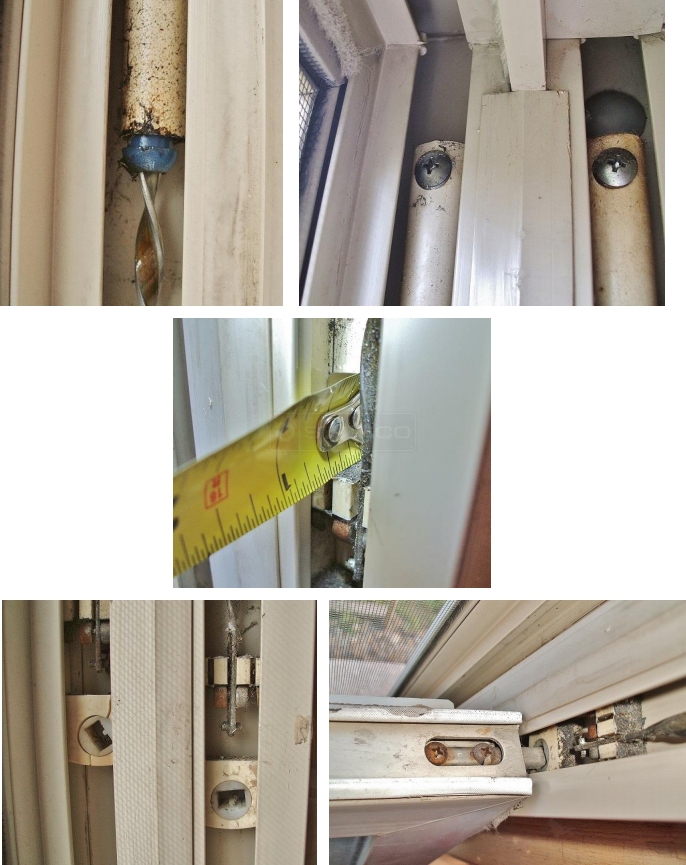

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting, Stephen. For the spiral balances, I recommend our Series 600 with blue tips. I'm not quite so sure about the pivot shoe, as yours is an older discontinued model. I think our 15-046 could work, but see what you think. Also not sure about the pivot bars. It would depend on the hole spacing. I'm confident we have one that can replace it, though. You can see our selection here
