A quick learner from Chicago, Il says:

I am looking to purchase replacement window parts for our condominium.

  • Pivot Lock Shoe Black Cam 16H98, 1-1/4 x ¾
  • Tilt Balance Tool
  • Caldwell Balances

Attached is a sketch showing the sizes of various windows.

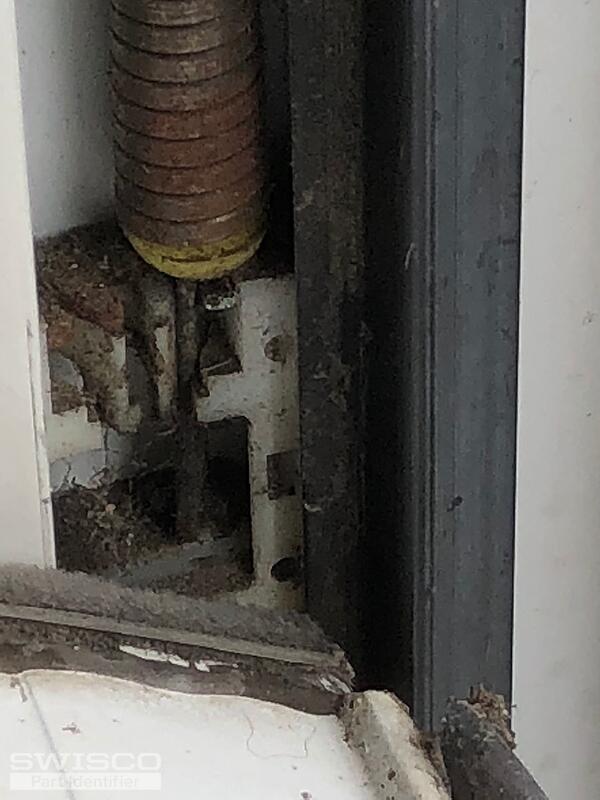

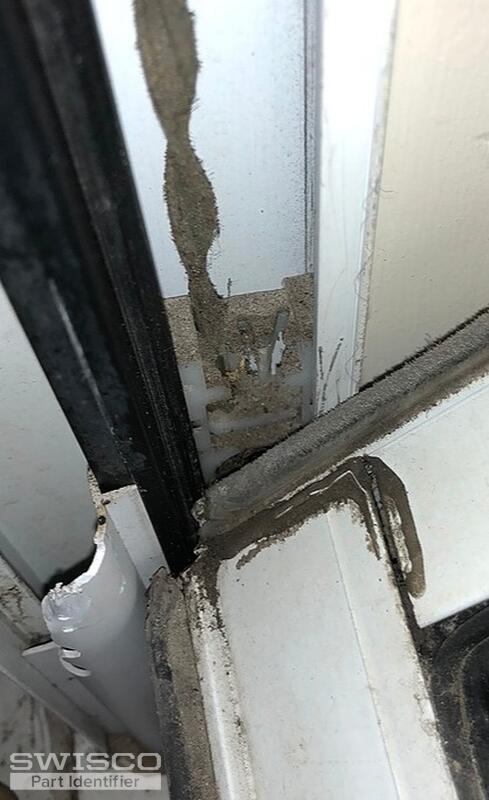

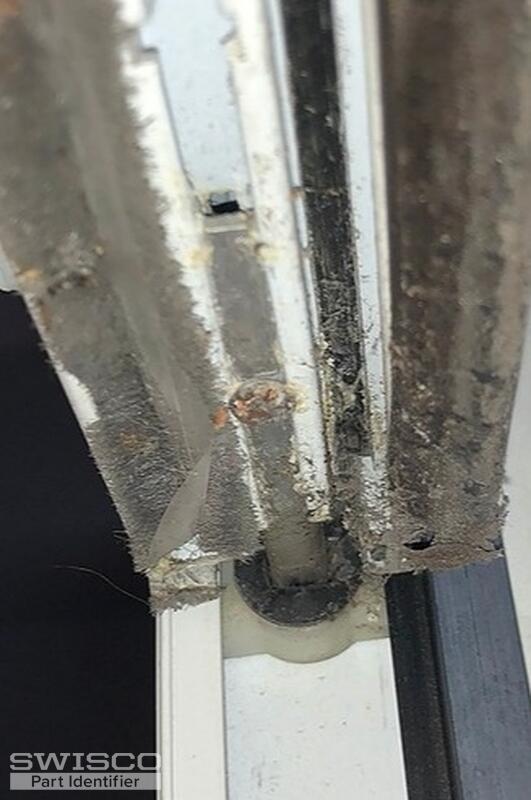

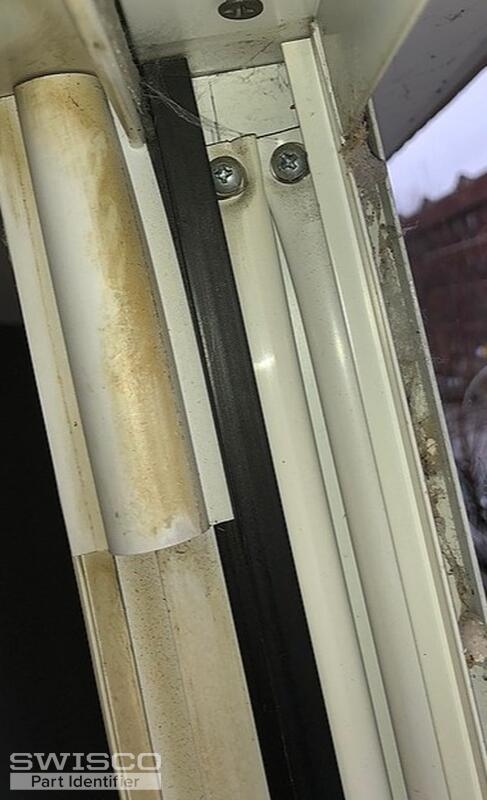

Also provided are photographs.

Thumbnail of the uploaded file named 69dc7837-3512-44a3-9290-81b1d18c1196.jpg
Thumbnail of the uploaded file named 0216eb15-312b-4bec-a973-081008b57305.jpg
Thumbnail of the uploaded file named a925a573-4000-479f-a7ba-fb37c969caaf.jpg
Thumbnail of the uploaded file named be705eae-6f30-4379-8f0c-6e78bf8d0091.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hi- thanks for posting!

For the pivot shoe, start with our 15-047. This is 1-1/4" wide x 5/8" thick. It's important you remove yours to confirm what size you need, since 3/4" is quite thick for a pivot shoe.

For the pivot bar, see our 26-040 and for the tilt balance tool, look at our 75-006 charging tool.

Lastly, the balance might be our Series 600 spiral balance. Please confirm that the diameter of the outer tube is 5/8". If it is, the Series 600 is the way to go.

Get back to us if you have any questions!
