Window Hinges

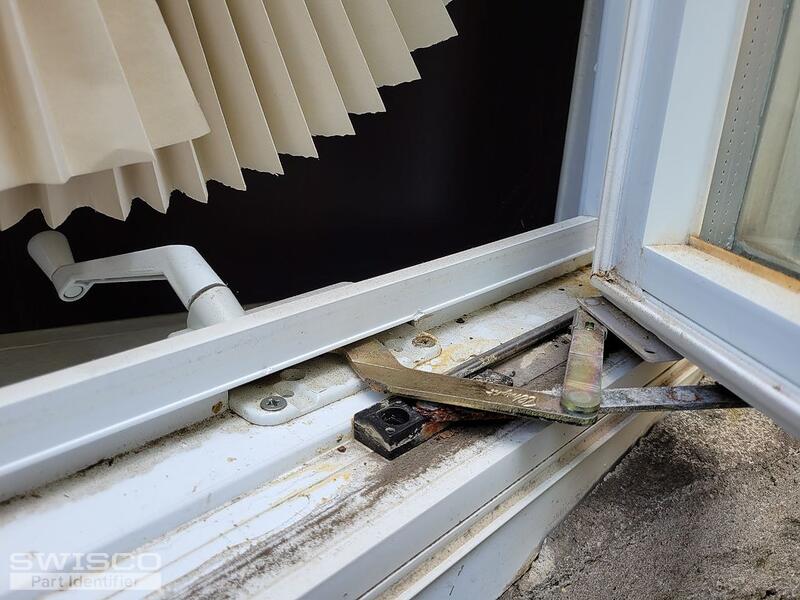

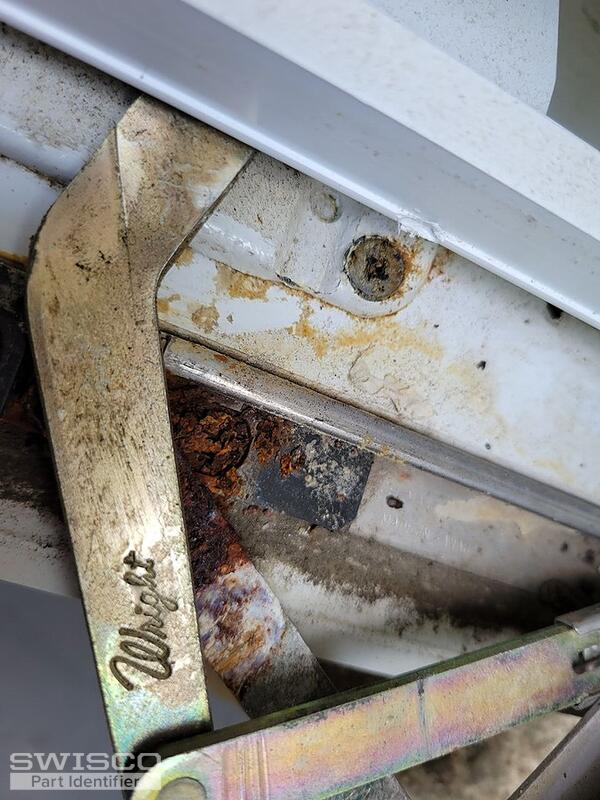

Thanks for reaching out! The part that has Wright written on it in your photos in the casement operator. Yours can be replaced with the 39-387 and 39-388 Split-Arm Operators. To confirm that these are the correct fit for your repairs, be sure to compare the dimensions.

The compatible crank handle is the 39-114L Crank Handle. You may also need the 39-513 and 39-514 Stud Brackets.

Dimensions for 39-388

If you are looking to replace the casement hinges, we suggest using the 36-048 2-Bar Hinge Set. Keep in mind, you'll likely need replace both the top and bottom hinges; these can be used for left and right handed applications.

Detail of 36-048
