Window Part

A contractor from Queens says:
January 28, 2021
Hi,
I'm trying to identify this part for my window. That metal tab broke off on the right side of window sash.
Thanks so much in advance for your help.
Thumbnail of the uploaded file named 21F704A6-07D0-4CD1-92A4-D301129DA487.jpeg
Thumbnail of the uploaded file named 8BC9EEA1-5A13-4587-A0F4-97026914436C.jpeg
Profile picture of Casey
Casey from SWISCO responded:
January 29, 2021

Hello,

We'd be happy to help but we would need to see an undamaged pivot bar removed from the sash, along with dimensions, to compare to our inventory. Thank you!
A landlord from Queens says:
February 8, 2021

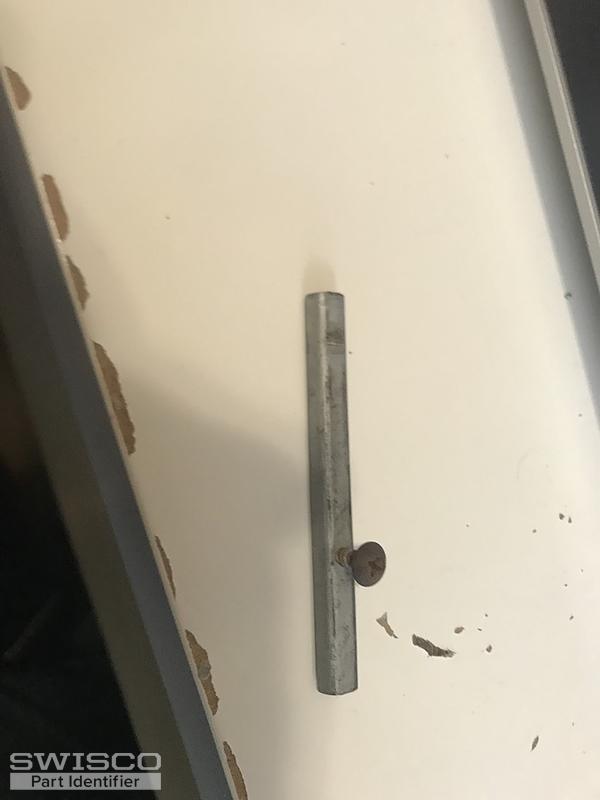

Here's pictures of the pivot bar.
Thank you for your help.
Thumbnail of the uploaded file named thumbnail_IMG_6891.jpg
Thumbnail of the uploaded file named thumbnail_IMG_6893.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 8, 2021

I'd recommend starting by comparing our 3" long 26-089 pivot bar to yours. Review the dimensions and hole placement to confirm if this could work for you. Thank you!
A landlord from Queens says:
February 9, 2021
The dimensions looks like they measure up pretty much the same as the 26-089 , except the whole in the center looks like its 2 inches or 2 1/16.It's very close though.
Profile picture of Casey
Casey from SWISCO responded:
February 9, 2021

Just to confirm, are you measuring from the center of the installation hole to the end of the pivot bar? If you can confirm that exact measurement, we'd be happy to check if there is a closer replacement option. Thank you!
A landlord from Queens says:
February 9, 2021
Yes, from the center of the installation hole is 2 1/6
Profile picture of Casey
Casey from SWISCO responded:
February 10, 2021

In that case, take a look at our 26-083 that has the installation hole offset you're looking for. This pivot bar is shorter than yours but that shouldn't matter as long as the installation hole lines up properly.
A landlord from Queens says:
February 10, 2021
Great. Ill order it now. Thanks for your help.
