Window Parts

Quick Learner
Attached are three (3) window parts that we are needing to get replaced. Are you able to help me figure out which part this is so we can get replacement parts ordered?

Thank you,
Val
3 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi Val, thank you for posting,

It appears that you are in need of a new coil balance cover. To confirm which series you have, are you able to show us the rest of the coil balance? We would need to see the springs and the coil shoe to determine which cover would work. Thank you!

Quick Learner

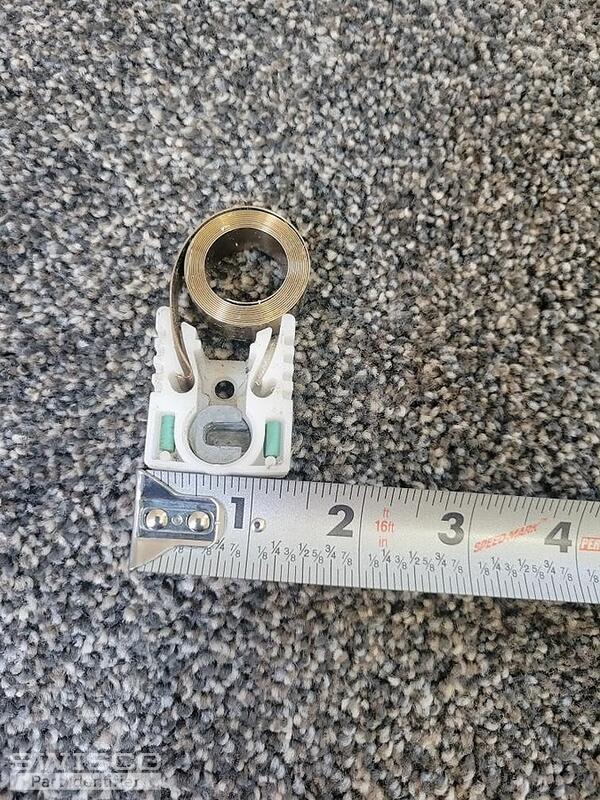

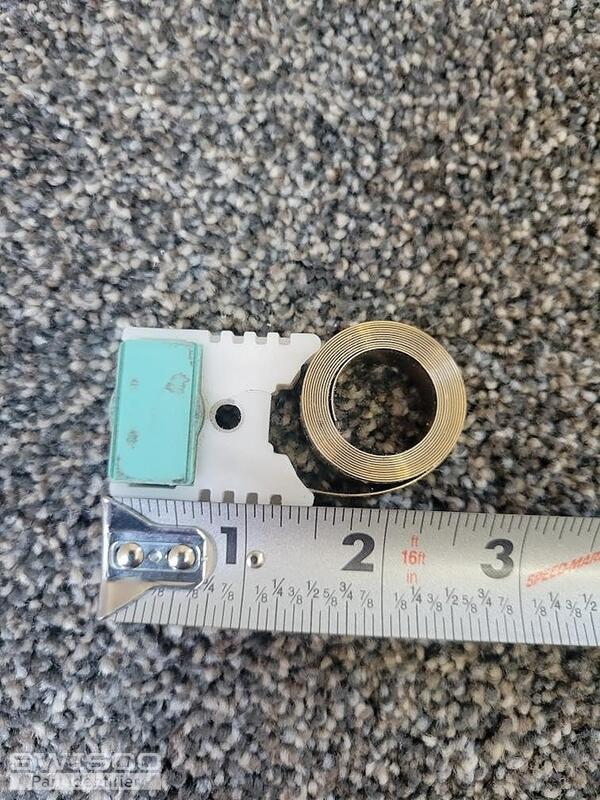

Attached are the pictures for the coil balance, you requested.

Thank you,

Valerie
3 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional pictures,

Unfortunately we do not carry this exact setup, but we should still be able to assist. We recommend reviewing the 15-177 pivot shoe that is compatible with the Series 152 coil springs. These work a little differently than your old springs, because the spring screws to the shoe instead of hooking onto it, but it should still work. To figure out which balance in the Series you need, check the old spring for a stamped number that you can match.

Alternate image for 15-177
Alternate image for 15-177

The Series 152 coil springs use the 15-143 coil bushing. 15-144 bushing cap and 15-145 support barrel. I know you were originally only looking for a replacement cover. Unfortunately we cannot confirm if these items will work with your original set up.

Take a look to see what you think and I apologize that we cannot provide an exact match.
