Window Parts - Tilt Latch & Pivot Hold Bar

A quick learner from Anne Arundel County, MD says:

Hi, trying to get these parts.

Thumbnail of the uploaded file named WhatsApp Image 2022-10-05 at 11.41.07 PM.jpeg
Thumbnail of the uploaded file named WhatsApp Image 2022-10-05 at 11.41.08 PM (1).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2022-10-05 at 11.41.08 PM.jpeg
Thumbnail of the uploaded file named WhatsApp Image 2022-10-05 at 11.41.09 PM (1).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2022-10-05 at 11.41.09 PM.jpeg
Profile picture of Tom
Tom from SWISCO responded:

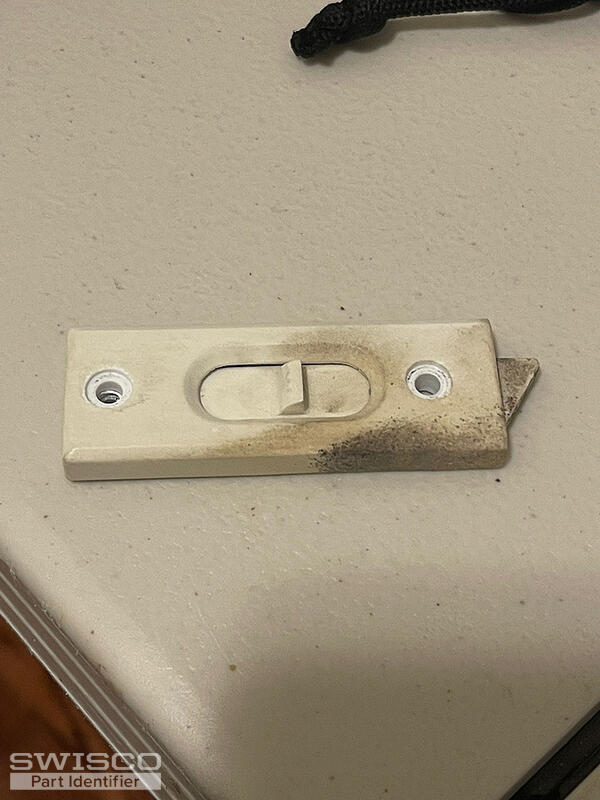

Hello! We supply a ton of different tilt latches and pivot bars, so there's a good chance we have what you need. Let's start with the tilt latch.

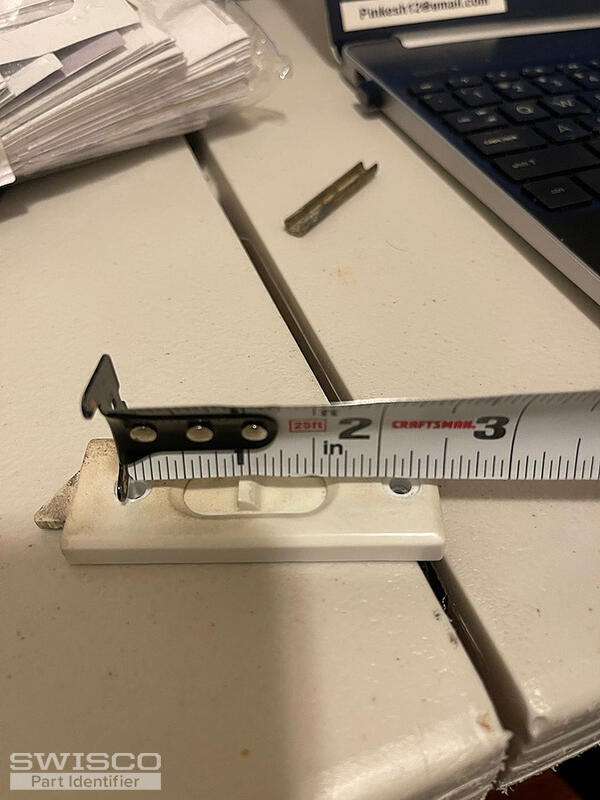

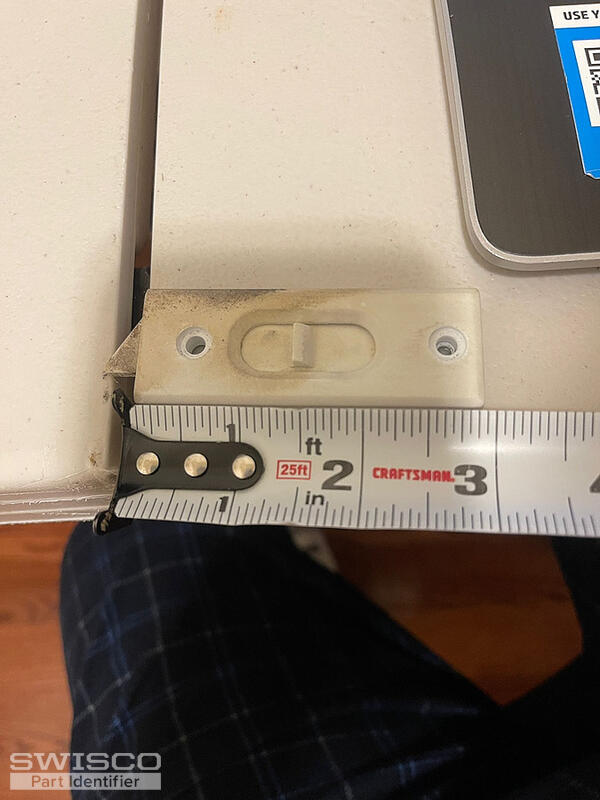

It's tough to make out the hole center spacing dimensions from these photos, but it looks like it could be 2-3/16". I highly recommend triple checking that to be sure.

Assuming that's right, you could consider our 26-195 and 26-196 as possible replacements. However at the end of the day it will come down to dimensions.

Alternate image for 26-195
Alternate image for 26-195

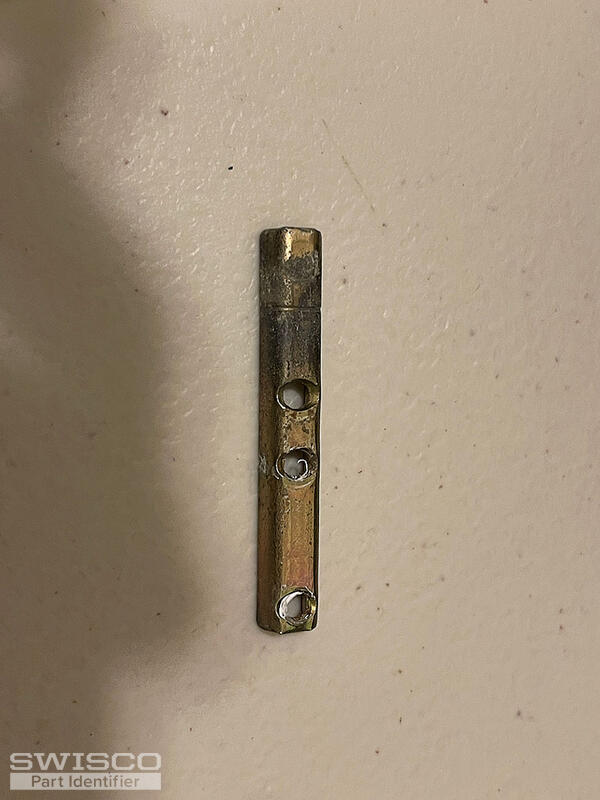

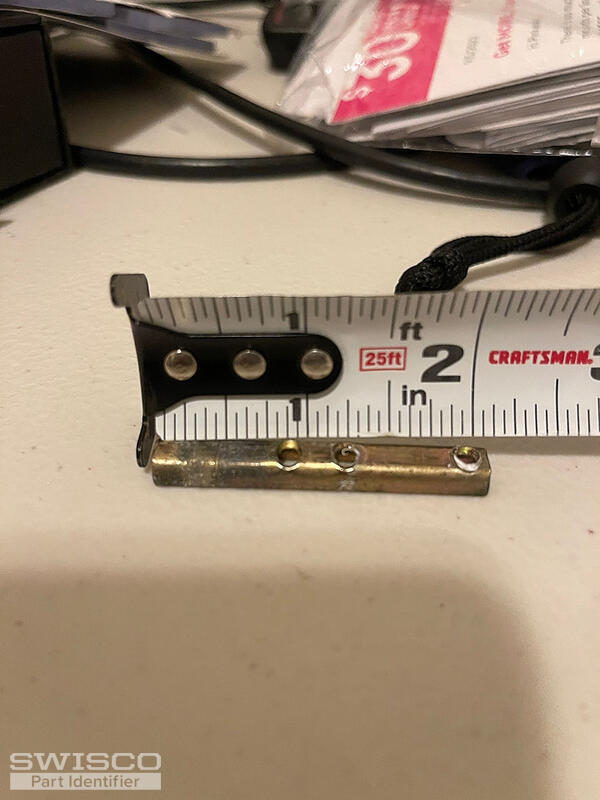

For the pivot bar, our best option looks to be the 26-040. Once again it will come down to hole placement.

Alternate image for 26-040
Alternate image for 26-040
