Attached are the photos of the window shoes that are broken and I need replaced.
Shoe Measurements
Width 1 1/4
Length 2 1/16
Depth/Thick 1/2

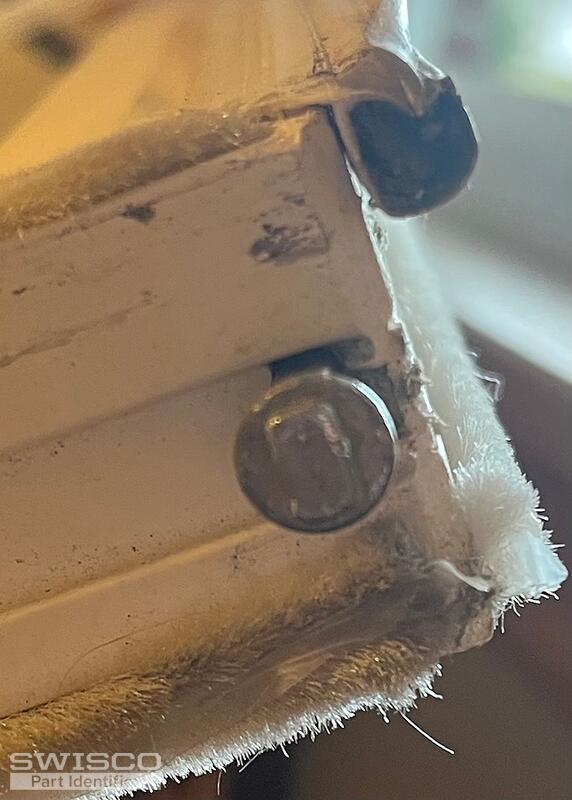

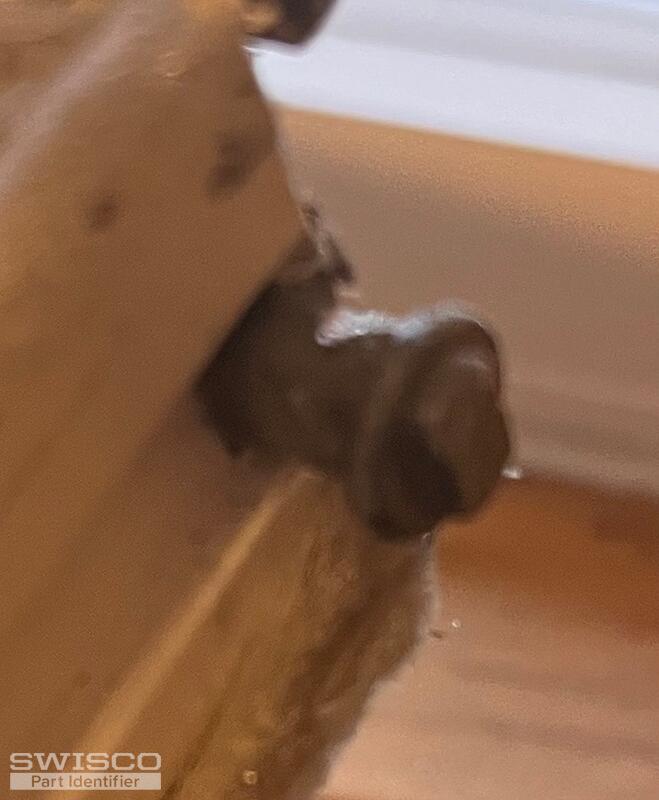

The Post that comes out of my windows and fits in the shoe does not fit into the 9/16 shoes that were sent to me (15-129). You can see in the photo that the window post has a raised center which fits into the cutout groove in the original shoes.
Post Measurements
Width across 3/8
Length 7/8
Window Pivot Shoe
Quick Learner
Sep 3, 2025 8:09 am
5 user uploaded images
2 Replies
Casey from SWISCO
Sep 9, 2025 10:50 am
Hello,
Your pivot shoe looks like a closer match to the 15-188 shown below, which has a larger cam than the pivot shoe you purchased. Take a look and let us know if you need anything else. Thanks for posting!
Alternate image for 15-188
