Window Repair

A quick learner from Simpsonville, SC says:
What parts are needed to repair a window?

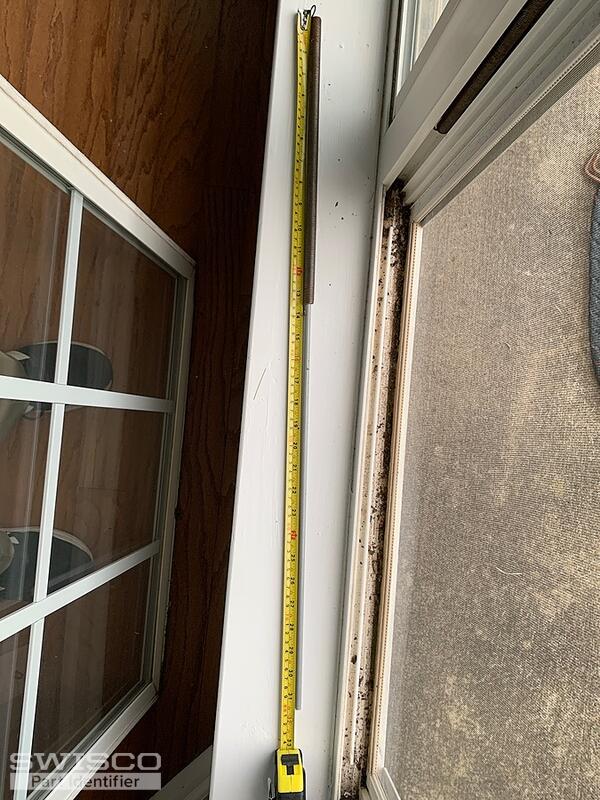

The length of the spring attachment is 31 inches.
Thumbnail of the uploaded file named 2931DF99-1394-4107-87E1-BB3903DAB395.jpeg
Thumbnail of the uploaded file named BFFCFABA-6BB3-4379-83B1-F77385302556.jpeg
Thumbnail of the uploaded file named 54E51562-321D-4723-AB98-C8CA908DBDD4.jpeg
Thumbnail of the uploaded file named B39FB537-AA13-42B9-8804-A2653013108D.jpeg
Thumbnail of the uploaded file named 144E43B6-AFF3-48E7-A645-B30813D1B3E1.jpeg
Profile picture of Tom
Tom from SWISCO responded:

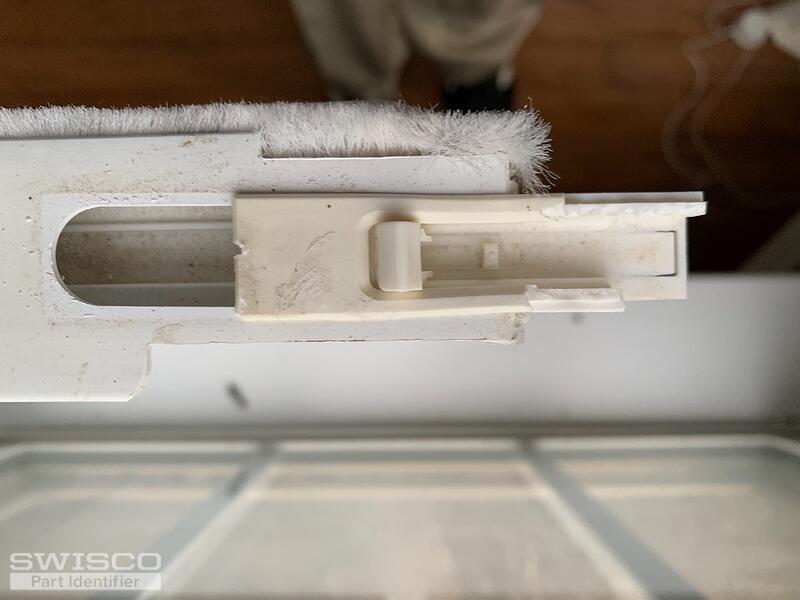

Looks like you need a few different parts. I'll start with the tilt latches, which are easiest: for those I recommend the 26-243 and 26-244.

The pivot bar can be ignored for now, and you'll find out why in a little bit. Basically you'll be changing that out with your balance, which is an old rod-type assembly that isn't made anymore. You're not going to find this exact design anywhere but we do sell a more modern channel balance that can be used as a substitute.

There are a couple catches, though. First, check the diameter of the spring to ensure that it's 1/2". If it is then you can use our Series 795 as a substitute. The process of repairing your window with this new style is involved, though; changing out the pivot bar is just one part of it. I recommend watching the video below for a detailed and step-by-step guide on what you have to do to get your window working again. This should cover everything but let me know if you had any questions.

How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to Replace a Window Tilt Latch
How to Replace a Window Tilt Latch
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
