Window Replacement Parts

A contractor from Delray Beach says:
June 27, 2017
Hello.
I am repairing awning windows in 8 rental units and I need help in identifying the necessary parts required. I've attached several pictures.
I believe the cranks needed are 39-017 right and 39-016 left.
I will need 34 cranks and the ancillary parts you recommend.

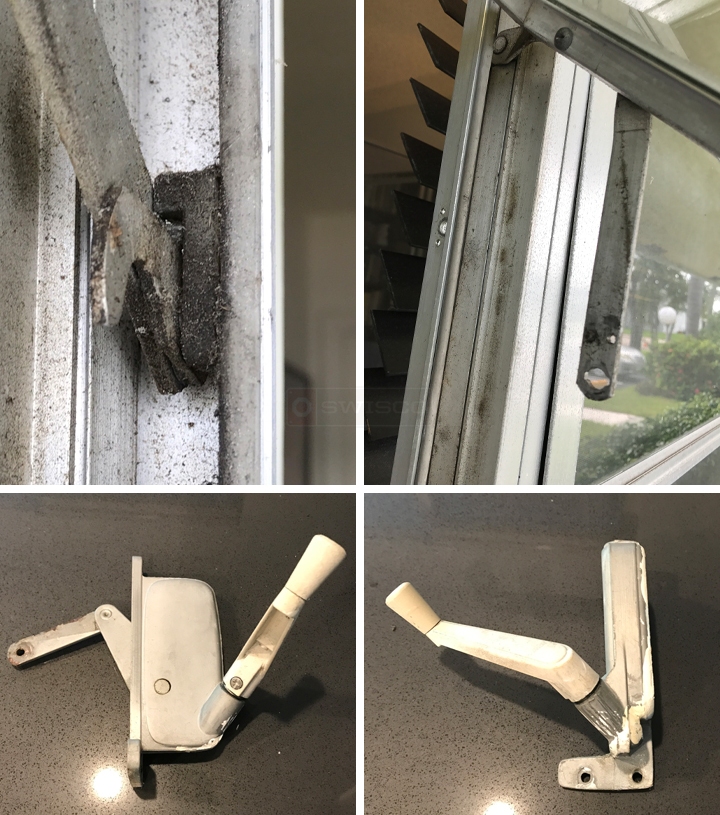

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
June 30, 2017
I'm afraid I can't confirm if those operators will work. It depends on your measurements. How well do the dimensions we show for the 39-016 and 39-017 match your own? If they're the same, then you should be okay. Another important detail is the hole pattern. I can only see the bottom two holes in your pictures, I'm not sure if the top tab has one or two holes.
A quick learner says:
June 30, 2017
Thank you for your response. After further investigation I need 39-060 and 39-061.
Can you confirm the arm window hooks 36-015 will work and again any suggestions for repairs?

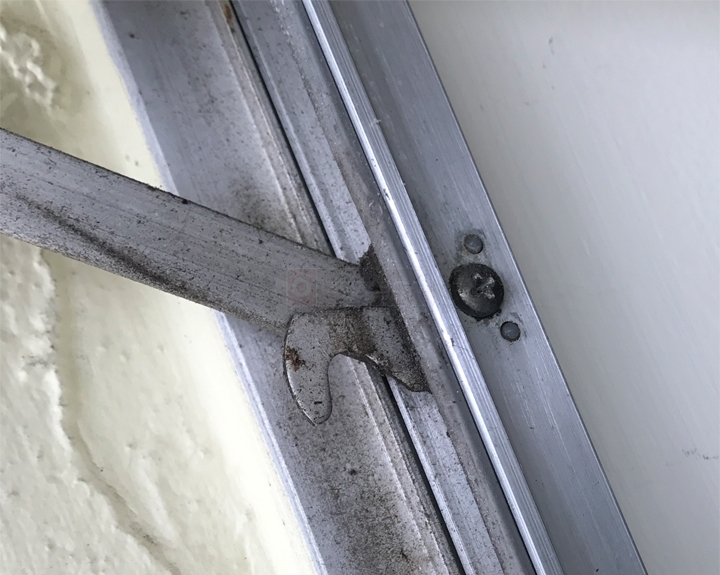

Window replacement parts
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
July 6, 2017
Yes, I believe you have the 36-015 hook. With that in mind, our 39-060 and 39-061 operators may be better. These parts were used by Keller industries.
Pan Am/Daryl Window Crank
Pan Am/Daryl Window Crank
39-017
$17.98
Pan Am/Daryl Window Crank
Pan Am/Daryl Window Crank
39-016
$17.98
Keller Window Crank
Keller Window Crank
39-060
$19.10
Keller Window Crank
Keller Window Crank
39-061
$19.10
Arm Window Hook, Pair
Arm Window Hook, Pair
36-015
$3.46
Vent Pin
Vent Pin
36-016
$0.97
5/16" Shoulder Screw, 1/4"-20 Thread
5/16" Shoulder Screw, 1/4"-20 Thread
33-070
$1.27
#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
