Window Spiral Plastic parts or accessories

A quick learner from Jamaica, NY says:
March 18, 2014
Hello,

I am looking for the plastic accessories or parts for my double hung vinyl windows. The actual spiral measurement is 28 1/4 length by 3/8 inch. I have uploaded two pictures. I double checked and made sure the spiral is not broken, but the plastic part is which is connected to the bottom of the spiral window balancer. If you have the part(s), I will like to purchase them.

Thanks,
Joe

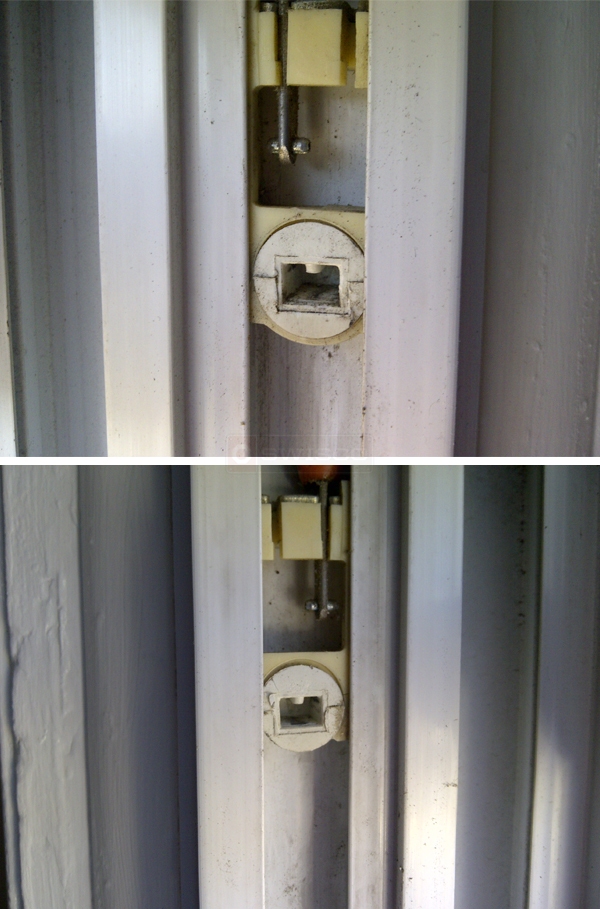

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
March 20, 2014
Thank you for posting. This looks a lot like our 15-046, but I recommend you carefully compare the thickness and width to your own pivot shoe and see how well they match.
A quick learner from Jamaica Queens, NY says:
March 20, 2014
Thanks Paul, I will first need to remove the old window pivot shoe to make the comparison. I will get back to you shortly.

Thanks,

Joe
Profile picture of Paul
Paul from SWISCO responded:
March 21, 2014
Sure thing, Joe. Let me know if you have other questions. Also, make sure to watch the video below in case you run into any problems removing the shoe.
