Window Spring

Question

Hi There.

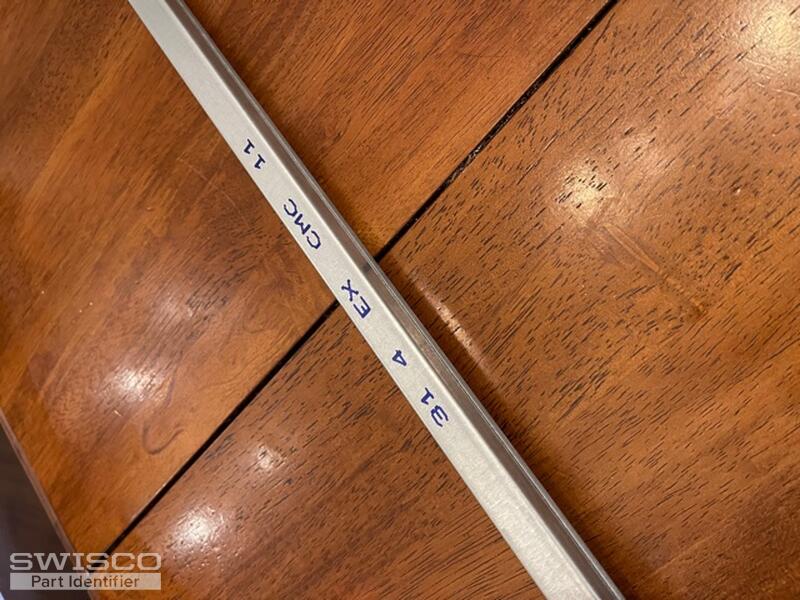

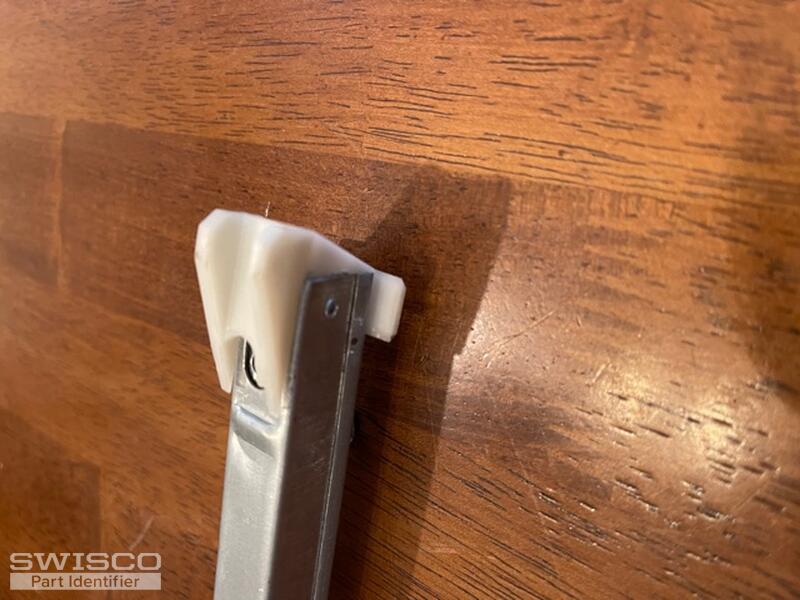

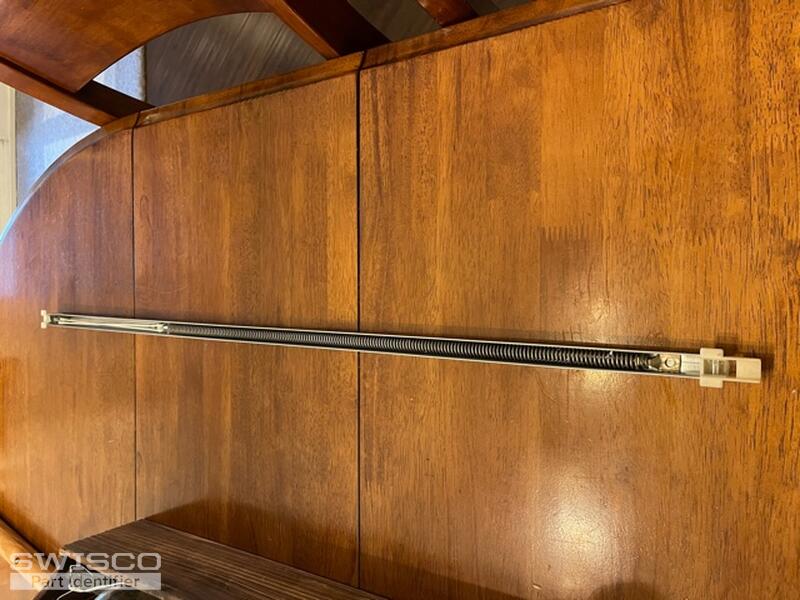

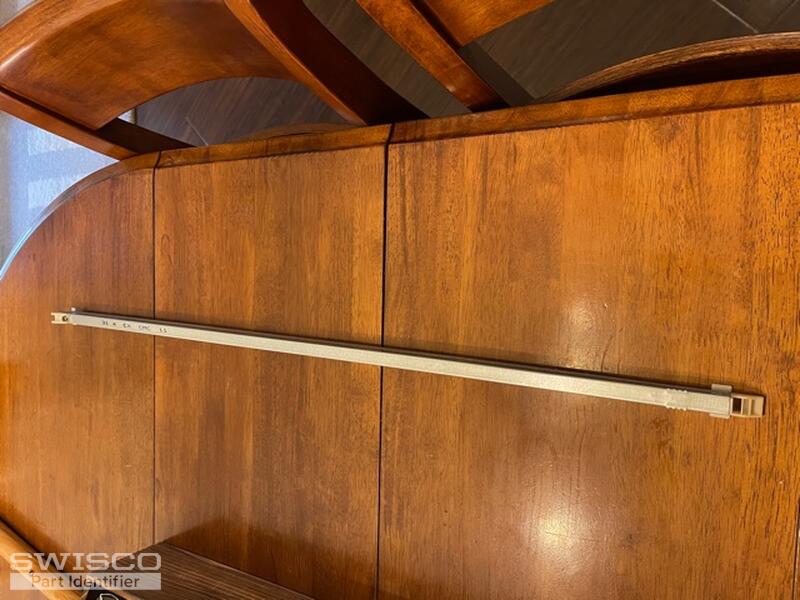

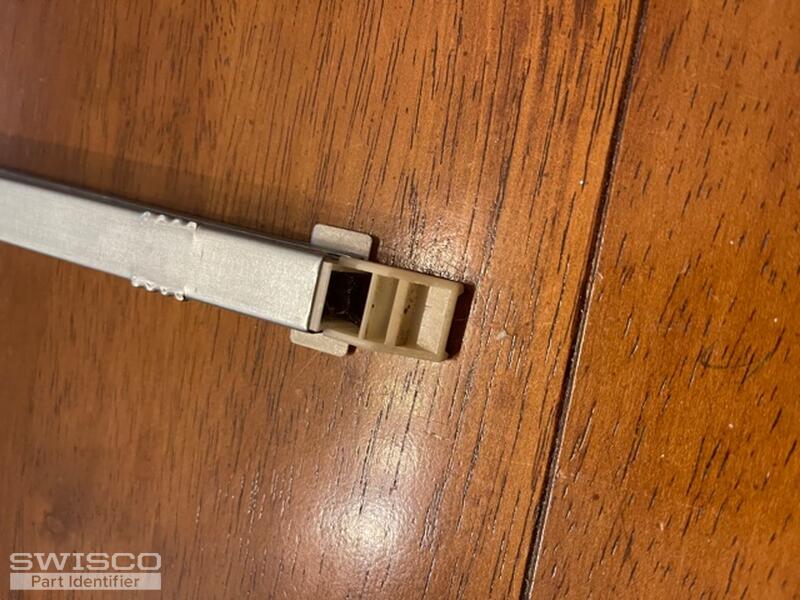

Can you help me with the correct window spring for my front window? There are so many options and I want to get it correct. The window is single hung and does not tilt. The metal piece is 31" in length and 1/2 wide. Please let me know if you need any other pictures. Also, would I need to buy new plastic clips as well? Please call if you have any questions.

Thank You.

Justin

Casey · Accepted Answer

With this combination of attachments, you could have either an S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3140 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
