Window Spring

Question

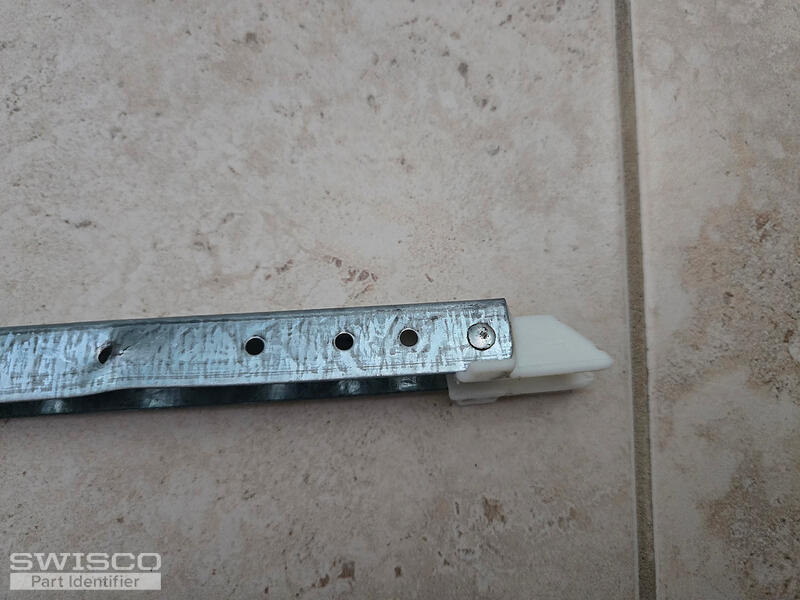

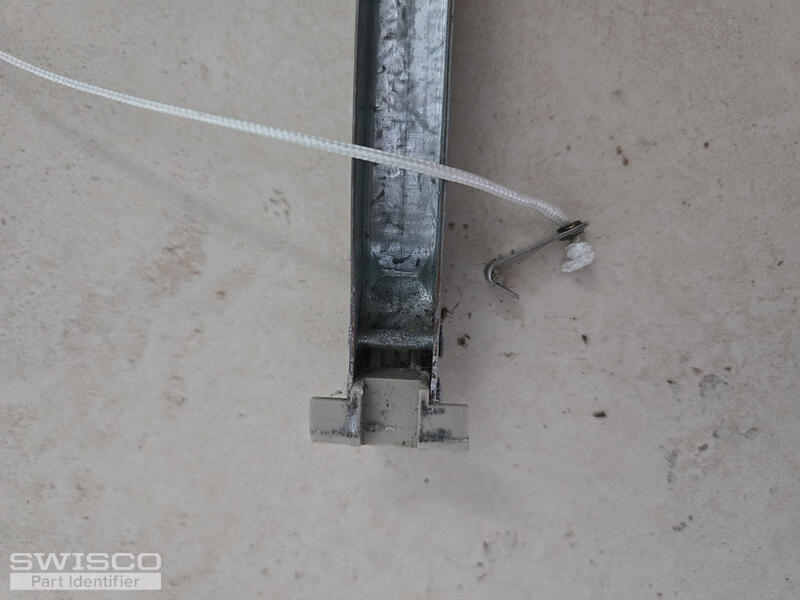

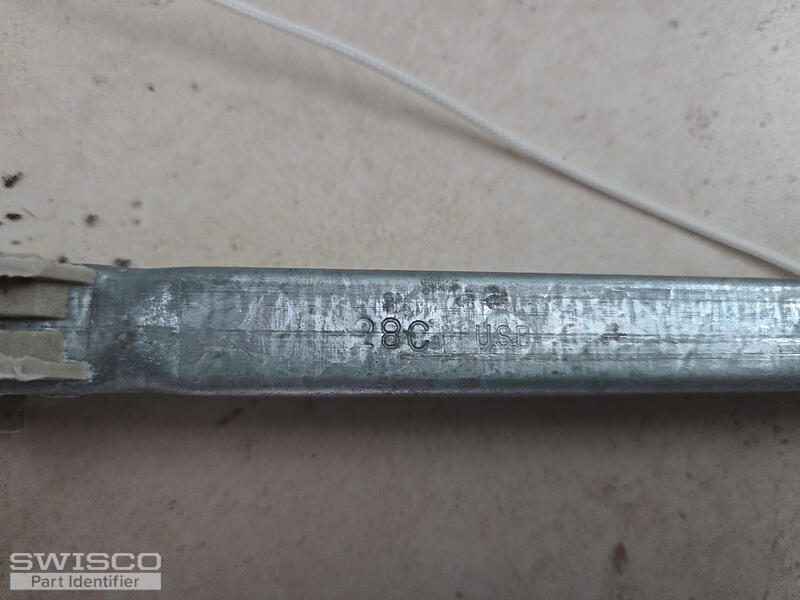

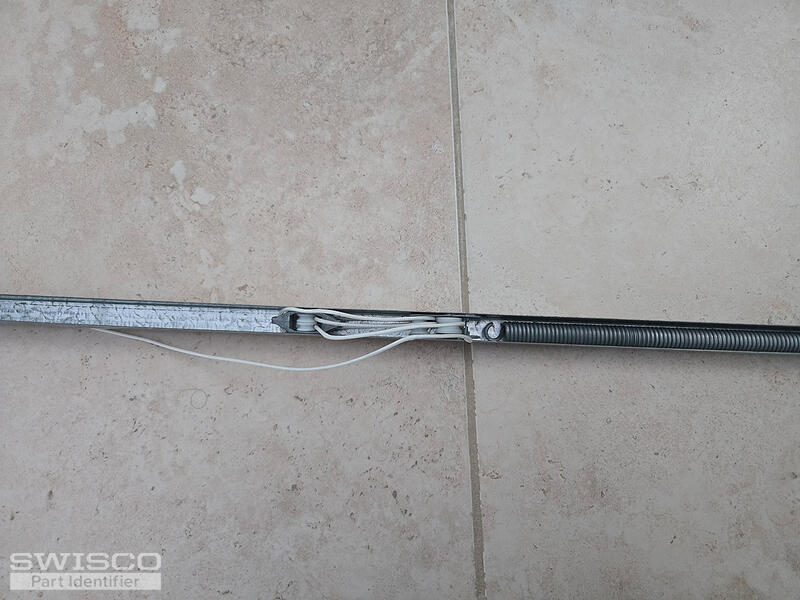

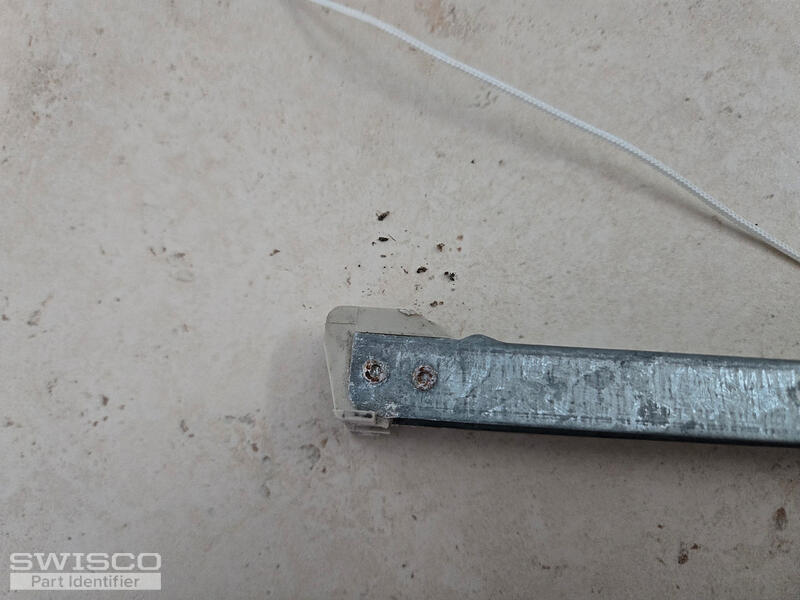

This window spring is from a Milestone Single Hung Series 1000. Only marking I found on spring is 28C. It measures 29 inches in length. If you need more photos let me know, thanks

Emily · Accepted Answer

Hey there!

Thanks for reaching out to us. Take a look at the S380-29 and S385-29 channel balances. One of these may be what you need depending on the depth of the bottom shoe so you'll have to measure as shown below to determine the best match.

Your stamp doesn't match any of our options, however. It may translate to our 2830 stamp option though. A pair of balances with this stamp can support a sash weighing 16 to 23 pounds. You can always weigh your window sash to be sure.

Comparison of the S378, S380 and S385 balance shoes.
