Window Spring Assembly

A home owner from Oak Ridge, NC says:
Hello,

I am looking to replace this spring assembly and possibly the entire bottom window pane.
Thumbnail of the uploaded file named 8C7054F3-0A35-4865-A06C-8C29BC71AF85.jpeg
Thumbnail of the uploaded file named F90E5390-80C4-47A5-9B13-9F8E5B32225B.jpeg
Thumbnail of the uploaded file named 74BEC818-443C-460E-A7FE-95224B20CAB6.jpeg

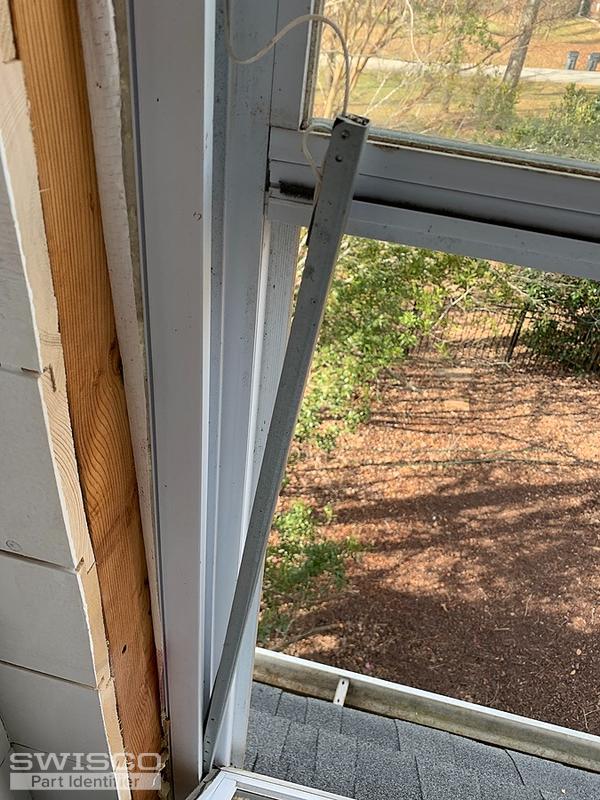

Thumbnail of the uploaded file named 07775B59-055F-4F8A-A397-E9980665E4F1.jpeg

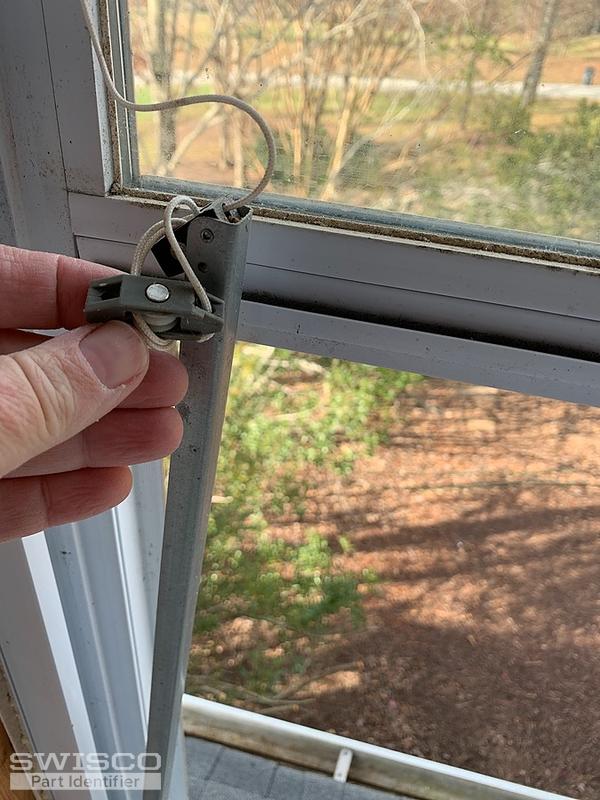

Thumbnail of the uploaded file named B06B7646-9286-4047-8FC3-2B08AD2EFC6F.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello, thank you for writing in. I will need to see your balance removed from the window in order to make an accurate recommendation. It looks like you could have the Series 795, but you'll need to verify that you have the 15-195 T-Lock shoe, which is 1-1/4" wide. I also would like to see the hook or clip at the end of the pulley cord.

A quick learner from Oak Ridge, NC says:
Hi,

Sorry for the delay in replying. I have been working like crazy. Yes, the T-lock shoe at the bottom of the balance is an inch and a quarter wide. I have included the pictures you requested. I think I need the entire balance assembly as the one I have is bent and the pins have come loose.

Doug

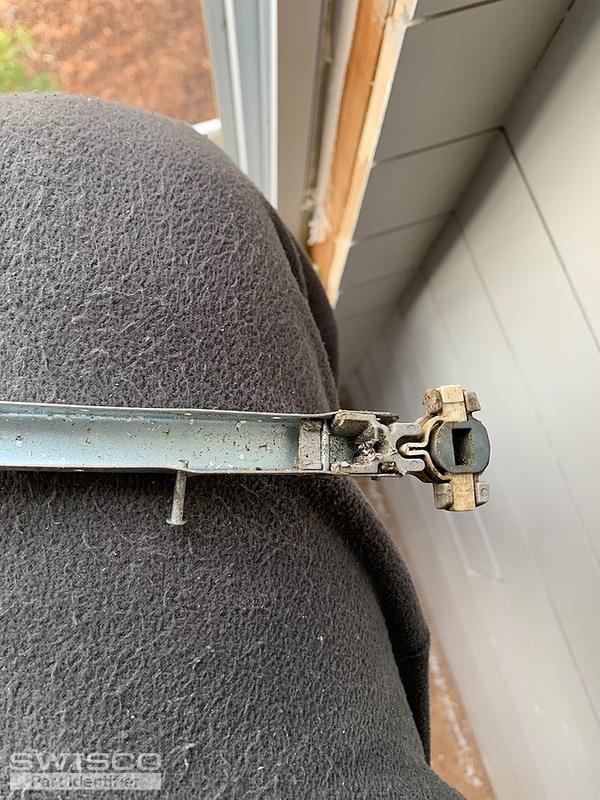

Thumbnail of the uploaded file named BDD97F09-7F15-4060-9737-17079D0D4718.jpeg

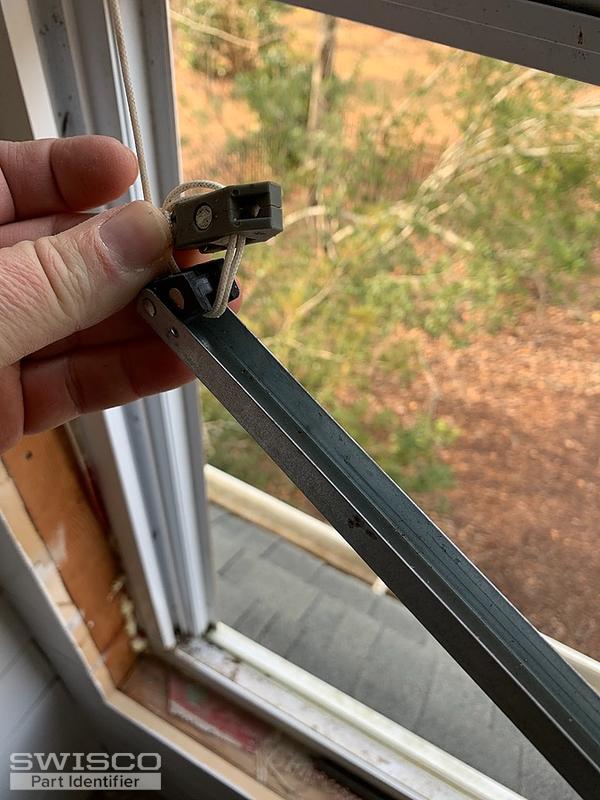

Thumbnail of the uploaded file named E0A50C36-C14A-484C-9D34-7B262ACBCD4D.jpeg

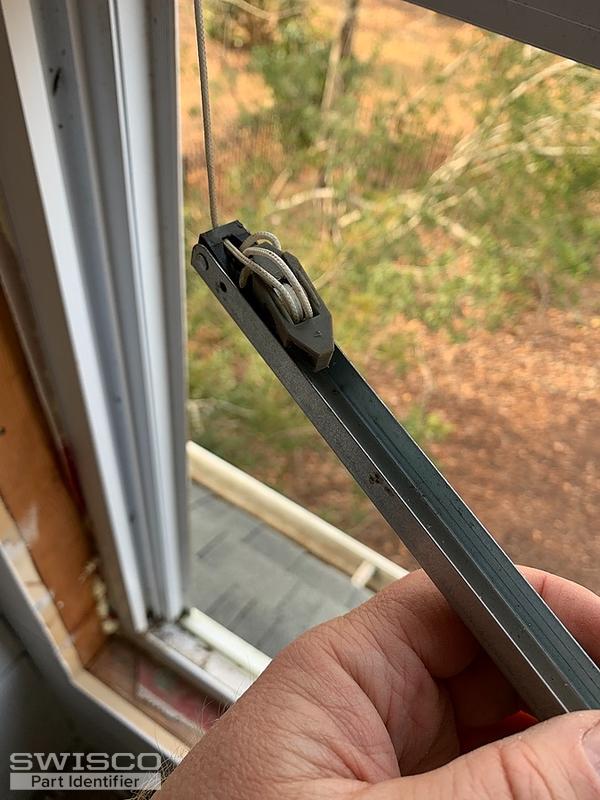

Thumbnail of the uploaded file named 3CAC1DBC-011C-49B0-A40A-BDF3151157E6.jpeg

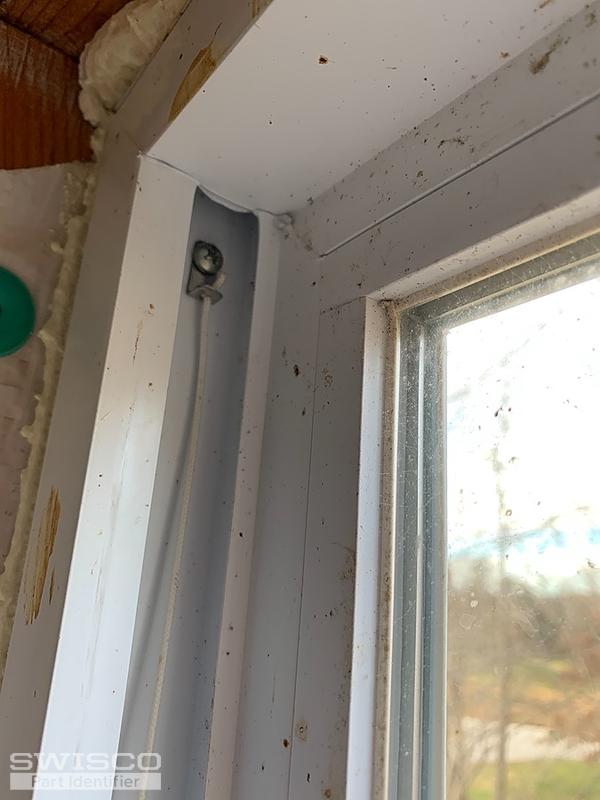

Thumbnail of the uploaded file named 49035F9B-3DC4-471F-B379-6491E90B4E6D.jpeg

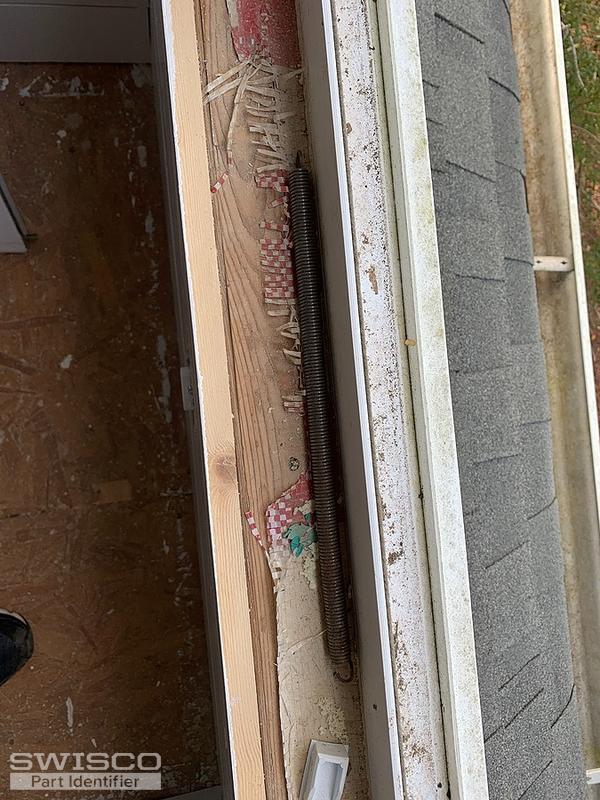

Thumbnail of the uploaded file named E4EA7C83-8E20-4EEA-8BE5-3F049949D0D1.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Great, thanks for this follow up information! It looks like you will need the S795-26 with the 26E option. Let me know if you have any further questions!
